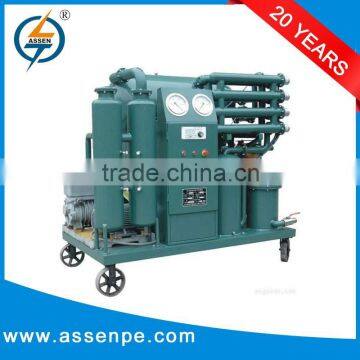

Multi-functions type Insulation Oil Regeneration,Transformer Oil Regeneration system Plant

ZYB serial multi-function type Insulation Oil Regeneration system adopts a unique recovery system, which utilizes an incorporated technology of diaphragm evaporation and sprayed drying, resulting in mass removal in more depth of water and gas. Its liquid oil recovery system recovers the acid value, ph value and medium of deteriorated oil back to the specifications of new oil.

• Ideal for insulating oil clean up and transfer
• Eight models are available to accommodate various flow rates
• Continuously removes free water down to 5 ppm or less
• Fluid cleanliness grade (NAS) to 6 or better
• Dual water and particulate removal
• Improve oil dielectric values
• Advanced demulsification technology
• Coalescence-separation technology
• Duplex 3D evaporation technology
• Double-infrared fluid level controller
• A trinity of interlocked preventive device
• Carbon fiber infrared heating system
• Automatic back-flushing system
• Unique H.P.M high molecule absorption material
• Mobile equipment for outdoor use
• Explosion-proof type available
• On-line vacuum oiling and dehydrating feasible

ZYB serial multi-function insulation oil regeneration system adopts a unique recovery system, which utilizes an incorporated technology of diaphragm evaporation and sprayed drying, resulting in mass removal in more depth of water and gas. Its liquid oil recovery system recovers the acid value, ph value and medium of deteriorated oil back to the specifications of new oil.

The purifier, which integrates functions of press filter, transformer oil recovery device and of vacuum oil purifier, is widely applied to recovery of various deteriorated insulation oil. Its high effective effects of removal of impurity, acid, colour, dissolved carbon are optimum choices of users for energy saving and environmental contributions, as well as preferable purification equipment for overhaul of a transformer

Insulation Oil Regeneration system's Technical Data:

Insulation Oil Regeneration System's Structure Chart


The oil technical data after treatment:

• Gas content less than 0.3%
• Impurity size less than 1μm without free carbon
• Oil dielectric strength (breakdown voltage) more than 55KV
• Acidity value less than 0.03 mgKOH/g
• Dielectric loss factors at 90°C less than 0.001

Insulation Oil Regeneration system's Advantage:
Highly efficient, cubic evaporation, 3-5 times higher efficiency than ordinary oil purifier, its infrared level control, automatic temperature regulation and interlocking protector enable a man-machine separation. The design is of new technology, light weight, compacted, flexible, easy to move and can be used at any environments, being very effective and easy to operate with less power consumption

• Your inquiry related to our products or prices will be replied in 24 hours.
• Well-trained and experienced staffs to answer all your enquires in fluent English.
• Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
• OEM is available for Anern Products.
• Protection of your sales area, ideas of design and all your private information.

Q: How can we achieve drying without elevated heating of the insulation material for transformers?
A: Drying of insulation materials can be achieved at low temperature and low pressure levels. The pressure levels and temperature levels for drying vary for distinct material. At low pressure or under vacuum the rate of water vapour evaporation is accelerated if sufficient heat is provided to the insulation material. Thus we can achieve a good drying of insulating material if the material is suitably heated and subjected to vacuum.

Chongqing Assen Power Equipment Co.,LTD, which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff , professional workers and High-quality sales and service teams

Our Product: Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.

Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipments operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
