Trailer mounted Transformer Oil Purifier machine
- 100 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
-
Weather-proof type Transformer Oil Reconditioning Plant
-
Automatic backwash transformer oil filtration machine
-
ZYD Most reliable transformer oil purifier unit
-
Double-Stage transformer oil regeneration equipment
-
High vacuum Transformer Oil Dehydration Plant
-
water removal completely transformer oil purifier system
Product Details
Condition | New | Flow | 6000LPH | |
Working Pressure | 0.4MPA | Place of Origin | Chongqing, China | |
Brand Name | ASSEN | Model Number | ZYD-100 | |
Usage | Transformer Oil | Voltage | 380V or as customer's needs | |
Power(W) | 45KW | Dimension(L*W*H) | 1650*1200*1500mm | |
Weight | 850KG | Certification | CE ISO | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

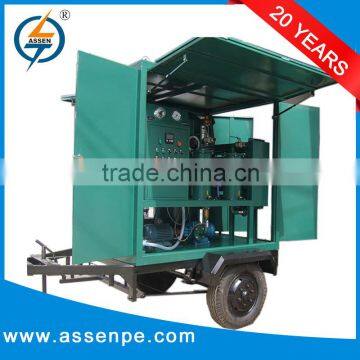

Trailer mounted Transformer Oil Purifier machine
ASSEN ZYD-M Trailer mounted Transformer Oil Purifier machine can remove water and gas in the insulating oil under high temperature and vacuity. it use more precise filter system to filter out impurities(filtering precision: 1-3um). It is mainly used for purification of oil for transformer with voltage higher than 220kv. It can increase oil breakdown voltage by at least 40kv.They are suitable for oil treatment, vacuum oil injection, and cyclic hot-oil drying in the installation and maintenance of big transformers.
1. Unique and highly efficient dewatering and degassing device, it adopted a large area three-dimensional flash evaporation and mature film evaporation technology to rapidly remove the free and dissolved water and gases from used and waste insulating oils.
2. Precise filtration system, high quality filter element, multi-stage filtration system levels, can effectively remove the mechanical impurities from the insulating oils.
3. Electrical heating system is the optimized pipeline design to ensure uniform heating and stable oil temperature.
4. Automatic constant temperature control device, automatic liquid level control device, automatic defoaming device, automatic pressure protection device and excellent configuration can ensure the equipments in high performance.
5. Work online and the indicators display running.
6. Unattended operation with low working noise and longtime free maintenance.
7. A complete machine safety interlock protection system, discharge oil system, vacuum system and the heating system interlock, to avoid the adverse effects of misuse.
- Transformer is one of the main asset in the electrical power industry which needs to be maintained for guaranteed uninterrupted power transmission in order to get assured revenue benefits.
- Transformer life mainly depends on the quality of oil volume it contains.
- Transformer oil conditioning may also include to some extent improving the acidity of the oil.
- A good oil purification system is able to deliver filtered oil with parameters as per the standard specification.
Oil purifier machine's Technical Data:
Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
Flow | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 | |
Working vacuum | MPa | 0.08 ~ 0.099 | |||||||
Working Pressure | MPa | ≤0.3 | |||||||
Breakdown Voltage | KV | ≥75 | |||||||
Water Content | PPM | ≤3 | |||||||
Gas Content | % | ≤0.01 | |||||||
Impurity Size | μ | ≤5 | |||||||
Temperature Range | °C | 20 ~ 80 | |||||||
Power |
| Three Phase 50HZ380V(as per the customer's requirements) | |||||||
Working Noise | dB(A) | 75 | 75 | 75 | 80 | 80 | 80 | 80 | |
Heating Power | kW | 30 | 30 | 45 | 60 | 75 | 90 | 120 | |
Total Power | kW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 | |
Inlet/Outlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
Weight | kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 | |
Overall | Length | mm | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 |
Width | mm | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 | |
Height | mm | 1350 | 1400 | 1500 | 1650 | 1800 | 1900 | 1900 |
Structure Chart:
The oil technical data after treatment:
- Gas content less than 0.1%
- Impurity size less than 1μm without free carbon
- Oil dielectric strength (breakdown voltage) more than 75KV
- Acidity value less than 0.01 mgKOH/g
- Dielectric loss factors at 90°C less than 0.001
Oil purifier machine's Advantage:
Comparing with the single-stage type, this series adopts the double-stages vacuum system, which immensely raises the machine's working vacuum degree, so it can dewater, degas and remove particulate impurities much more efficiently. It allows the transformer to be in service while impurities are effectively removed.
- Your inquiry related to our products or prices will be replied in 24 hours.
- Well-trained and experienced staffs to answer all your enquires in fluent English.
- Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
- OEM is available for Anern Products.
- Protection of your sales area, ideas of design and all your private information.
Q: How can we achieve drying without elevated heating of the insulation material for transformers?
A: Drying of insulation materials can be achieved at low temperature and low pressure levels. The pressure levels and temperature levels for drying vary for distinct material. At low pressure or under vacuum the rate of water vapour evaporation is accelerated if sufficient heat is provided to the insulation material. Thus we can achieve a good drying of insulating material if the material is suitably heated and subjected to vacuum.
