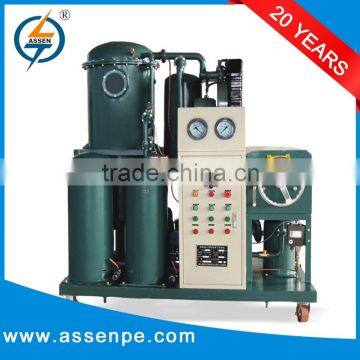

High vacuum used cooking oil purifier,vegetable oil purifier,cooking oil reprocessing equipment Quality Choice

ASSEN TYA-I Cooking oil purifier is special for filtering waste cooking oil;it removes impurity, odor, water, acid and alcohol etc. from oil completely and effectively. Treated cooking oil color is limpidity, oil is good smell. This filtration plant is suitable for food factory, cooking oil factory, vegetable oil factory, it can help factory reclaim remnants oil. Also, CY is a good filtration part for bio-diesel oil making.

1. This plant composed by two parts, one is the press filter, and other one is the vacuum oil purifier system. The press filter can remove the big and tiny impurity; the precision of purification can reach to 1 Micro. The Vacuum system equips three grades filter (primary filter, mass water separator, and fine filer). All process works under the vacuum condition.

2. For the primary filter, which is made of the stainlessness steel, it is anti-rust and anti-corrupt, it mainly removes the residual impurity which escape from the press filter, making sure the oil have not any impurity when it goes into the water separator and vacuum separator.

3. The water separator, which equips the special filter, which mainly remove the mass water from the oil, because usually the waste cooking oil always contains much water, so we need remove the mass from the oil. After the water separator, the oil just contains the tiny water and soluble water.

4. After the process of the water separator, the oil will goes into the vacuum separator, which adopts three-dimensional duplex evaporation and film evaporation. For protecting the oil nature, it is better that the oil temperature is lower than 80 C, Because our machine works under the vacuum and low pressure condition, so it don’t need heat the oil to 100 C, usually it just need heat the oil to 45 C, Then it can remove the tiny water, soluble water, acid, alcohol and other volatility liquid and so on completely and effectively.

5. The fine filer, which is equips the stainlessness steel filter, the purification hole is less then 1 Micro, which can make sure the oil is completely clear, no any impurity.

1.It dewater, deodorize, and eliminate impurities highly effective.
2.According to cooking oil's nature of high water, more acid matter, much impurity and offensive odor content, this machine adopts Plate Pressure system which can separate the sundry goods and water from the oil quickly and effectively. Then superadd two primary filters and fine filter, it can remove impurities thoroughly. Next, the machine adopts highly vacuum system to dewater and deodorize. In addition, this machine uses stainless steel filter element, it resists the acid in oil strongly.

Cooking oil purifier's Technical Data:

 Structure Chart:

• Your inquiry related to our products or prices will be replied in 24 hours.
• Well-trained and experienced staffs to answer all your enquires in fluent English.
• Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
• OEM is available for Anern Products.
• Protection of your sales area, ideas of design and all your private information.

Q: How to filter cooking oil,biodiesel?

For vegetable oil and biodiesel, contaminants must be removed before entering an engine. Injectors, pumps and pistons/seals will be ruined if large particles or the wrong fluids enter them. Engines require lubricating fluids to ensure long operational life. Diesel fuel is a lot more lubricating than gasoline. This is one of the main factors why diesel engines tend to go 500k to a million miles with no problem while most gasoline engines are pretty much junk by 200k.It is extremely important to filter your vegetable oil with coarse filters before fine filtering. Why? Fine filters collect practically everything. Which means all that big stuff that would be easy to scrape out of a coarse filter is now embedding itself into the fine filter you use. Your fine filters will take a beating all the way, they will clog fast and it will cost you a lot of money to replace them often.
