Home > Products > Drying Equipment > Rotary Drum Coal Slime Dryer Machine With Factory Price
Rotary Drum Coal Slime Dryer Machine With Factory Price
- Qingdao Shanghai Tianjin and other main china ports
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Rotary Drying Equipment | |
| Place of Origin | Hainan, China | Brand Name | Weilite | |
| Model Number | ZTH Various | Voltage | 220v/380v/440v or custom-made | |
| Power(W) | 3-75kw | Dimension(L*W*H) | 1000x600x600mm | |
| Weight | 2.9-104.9t | Certification | ISO9001:2000 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
slime dryer machine
1.Slime Dryer Machine introduction
- Slime dryer machine is suitable for urban sludge drying.Sludge drying processing, agricultural sludge, used as a fuel, burning or even to reduce landfill ground handling methods such as possible.
- Slime dryer machine can one-time ninety percent water content of dry raw materials to finished products.According to the characteristics of sludge drying process and the unity block, changed the general single channel plate structure form of dryer, used the combined since the cleaning device, greatly expands the application range, single channel drier can not only all kinds of sludge drying, also can dry all kinds of high viscosity material.
2.Slime Dryer Machine Working Principle:
The main body of professional drying equipments is a cylinder at a certain gradient with horizon. The cylinder is drove by gear at a speed of 2-6r/min. The general gradient of cylinder is about 1°-5°. Materials enter cylinder by the upper end. As the cylinder rotates, materials flow to the lower end under gravity and get discharged. During this period, materials get thorough contact with hot air, moisture inside gets vaporized. Due to rotary drum drying plant operates under negative pressure, the inlet and outlet both adopt sealing device to avoid air leakage.
3.Slime Dryer Machine Market Outlook
- With implementation of the strategy of sustainable development, coal and other mineral resources,rational development and utilization has become an important issue,original low value the full development and utilization of lignite is urgent.
- Use of valuable lignite resources, so that turning waste into wealth, not only can produce considerable economic benefits.
- This dryin equipment, can be dry and brown in ensuring quality of the same premise, reducing the sulfur content of lignite to improve the calorific value of lignite.
- Improve combustion efficiency, making more full use of coal resources.

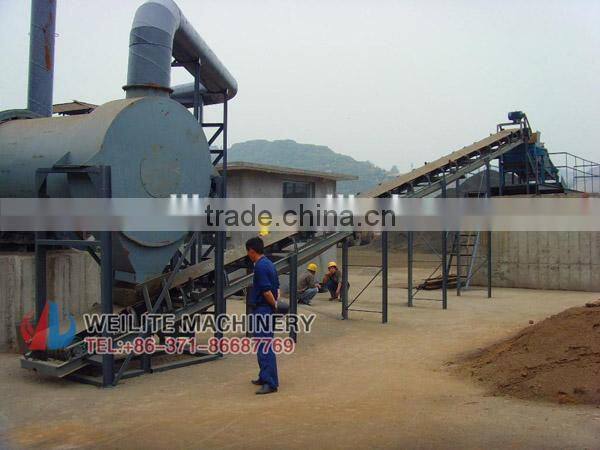

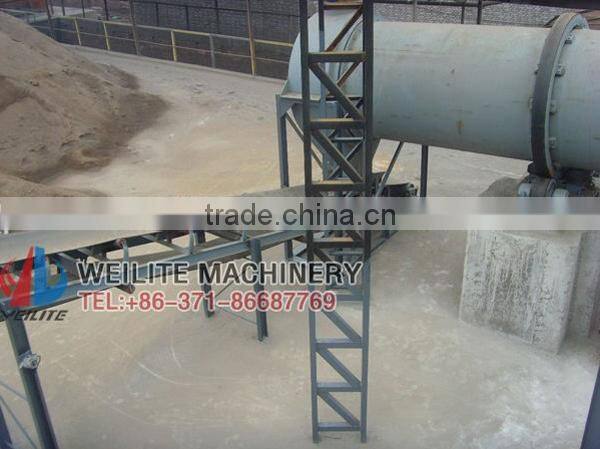

4.Slime Dryer Machine Installation Pictures
5.Main Technical Parameters Of Slime Dryer Machine
| Model (mm) | Gradient (%) | Rotational ( r/min ) | Inlet air temperature ( ºC) | Power (kw) | Production capacity (t/h) |
| φ 600 × 6000 | 3-5 | 3-8 | ≤ 700 | 3 | 0.5-1.5 |
| φ 800 × 8000 | 3-5 | 3-8 | ≤ 700 | 4 | 0.8-2.0 |
| φ 800 × 10000 | 3-5 | 3-8 | ≤ 700 | 4 | 0.8-2.5 |
| φ 1000 × 10000 | 3-5 | 3-8 | ≤ 700 | 5.5 | 1.0-3.5 |
| φ 1200 × 10000 | 3-5 | 3-8 | ≤ 700 | 7.5 | 1.8-5 |
| φ 1200 × 12000 | 3-5 | 3-8 | ≤ 700 | 11 | 2-6 |
| φ 1500 × 12000 | 3-5 | 2-6 | ≤ 800 | 15 | 3.5-9 |
| φ 1800 × 12000 | 3-5 | 2-6 | ≤ 800 | 18 | 5-12 |
| φ 2200 × 12000 | 3-5 | 1.5-6 | ≤ 800 | 18.5 | 6-15 |
| φ 2200 × 18000 | 3-5 | 1.5-6 | ≤ 800 | 22 | 10-18 |
| φ 2200 × 20000 | 3-5 | 1.5-6 | ≤ 800 | 30 | 12-20 |
| φ 2400 × 20000 | 3-5 | 1.5-5 | ≤ 800 | 37 | 18-30 |
| φ 3000 × 20000 | 3-5 | 1.5-5 | ≤ 800 | 55 | 25-35 |
| φ 3000 × 25000 | 3-5 | 1.5-5 | ≤ 800 | 75 | 32-40 |

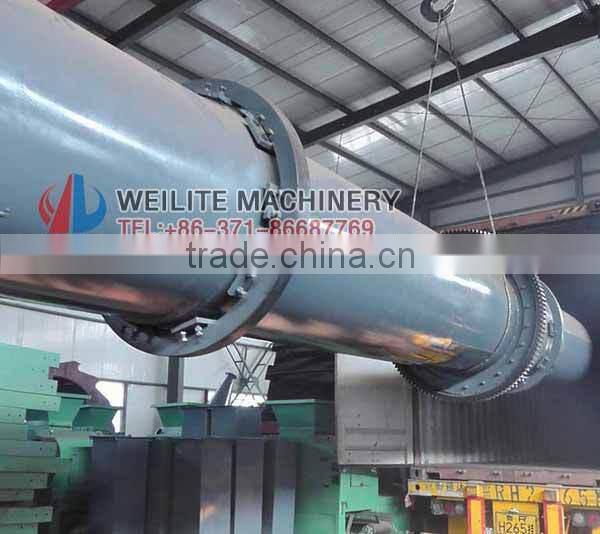

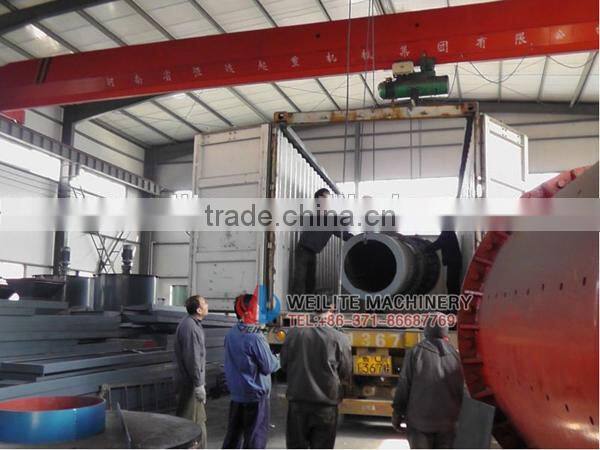

6.Slime dDryer Machine Packaging And Shipping
7.Our Services For Slime Dryer Machine
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
8.about Us--Zhengzhou Weilite Machinery
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines such as crusher, ball mill, rotary dryer,belt dryer,briquette machine,mixer, etc. Website: /
9.FAQ About Slime Dryer Machine
1).What's the raw material that can be dried?
- Answer:Any kind of meal and mineral material can be dried by our machine.
2).What kind of fuel can be used with the dryer?
- Answer:Gas, Diesel, Coal, Wood and other solid fuels.
3).What's the drying type of your dryer?
- Answer:Hot Air Drying Type.
4).Can we adjust the drying temperature?
- Answer:Yes, we can adjust the drying temperature by adjusting the hot air inlet volume.
Note:
If you didn't get the suitable machine in this page , please email me you detailed requirement . We are the manufacturer with over 30 years working experience . We can help you in this matter .
Hot Sercice Line:+86-371-86687769
Contact Me:Ms Sandy Shi
