Home > Products > Drying Equipment > High Efficiency Dryer Belt For Iron Pellet

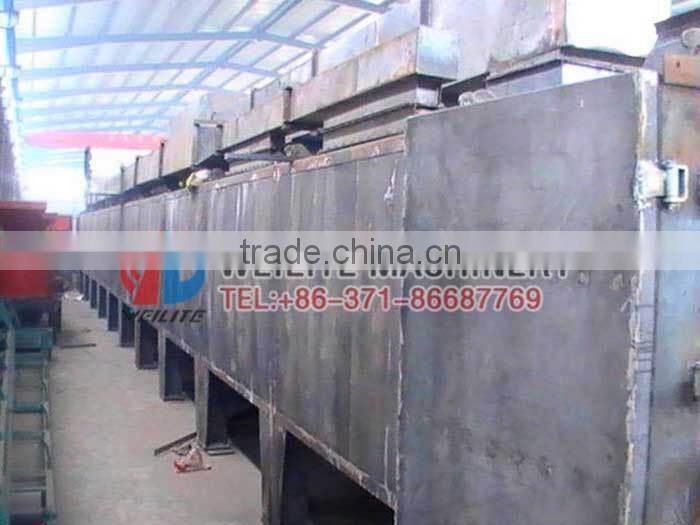

High Efficiency Dryer Belt For Iron Pellet

FOB Price

US$ 4,000 - 158,700 / Set

1 Set(Min. Order)

Port China main port
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Belt Conveyor Dryer
Place of Origin	Henan, China	Brand Name	Weilite
Model Number	WDH Series Conveyor Dryer	Voltage	220v / 380v / 440v / custom made
Power(W)	3-75kw	Dimension(LWH)	Custom design
Weight	10-50 Tons	Certification	ISO9001:2000
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

dryer belt for iron pellet

1. Dryer Belt For Iron Pellet Introduction

1). Dryer belt is widely used to drying pellets in iron / olive husk / coal / charcoal / carbon black / mineral briquettes production line. It has the character of high efficiency, low broken rate, stable performance, etc.

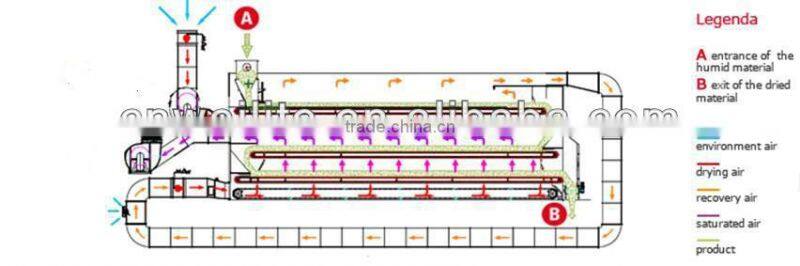

2).Three Layer Conveyor Dryer Working principle picture

A typical belt dryer consists of an input end called the infeed head, a mode of transport which is mostly a conveyor belt and a discharge end. The wet product to be dried enters the dryer through the infeed head and begins its journey on a perforated belt.

The product is carried by the conveyor belt into the drying area, where heated, dry air flows over it. The air or gas absorbs water from the material, drying it as a result. The moist, drying air is ejected with the help of fans, and the dried material leaves the dryer at the belt end.

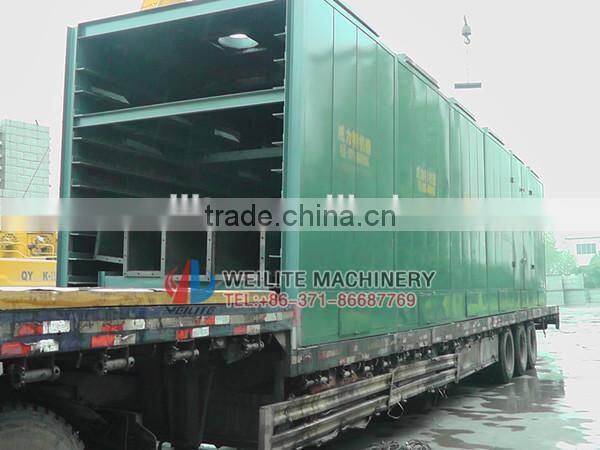

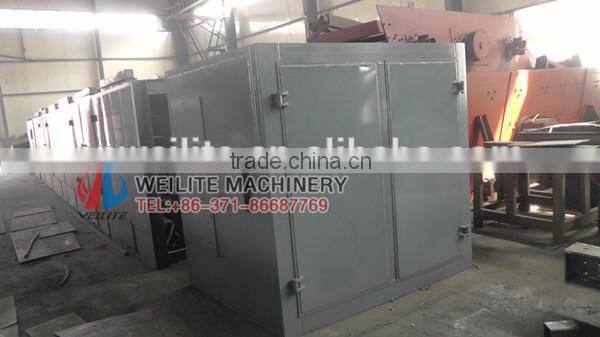

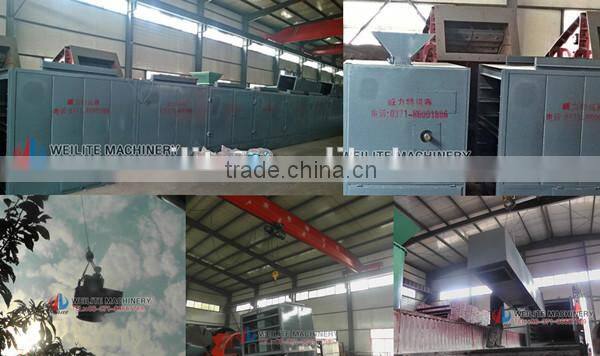

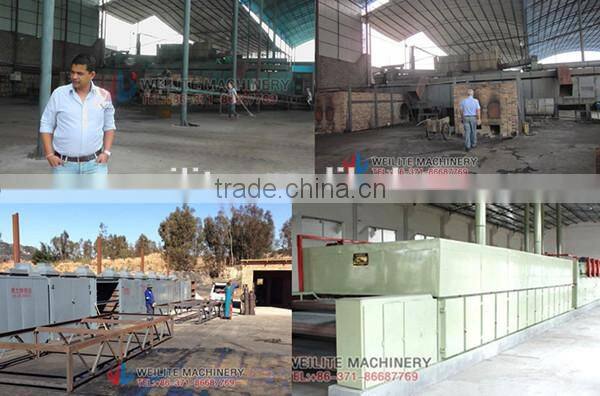

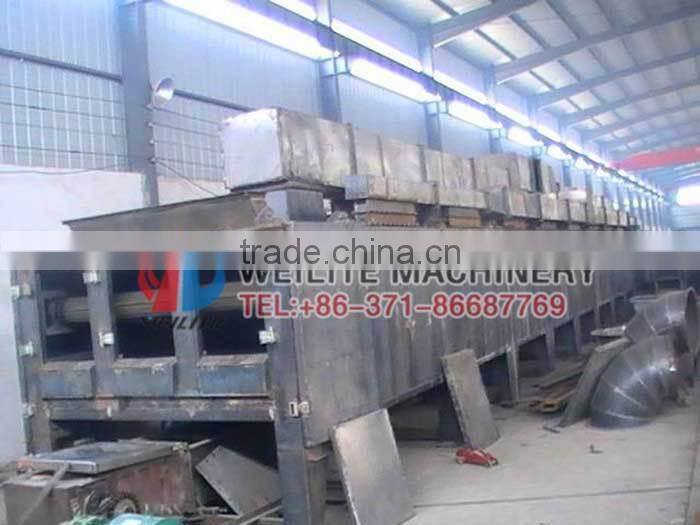

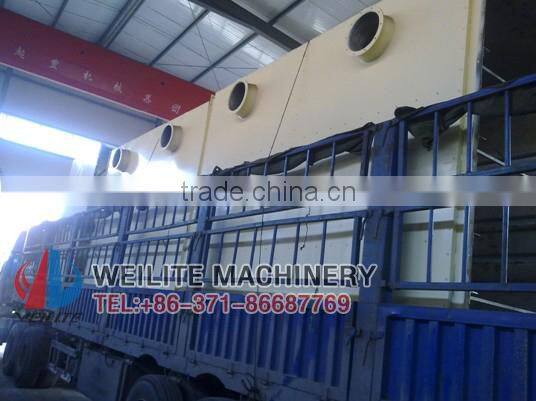

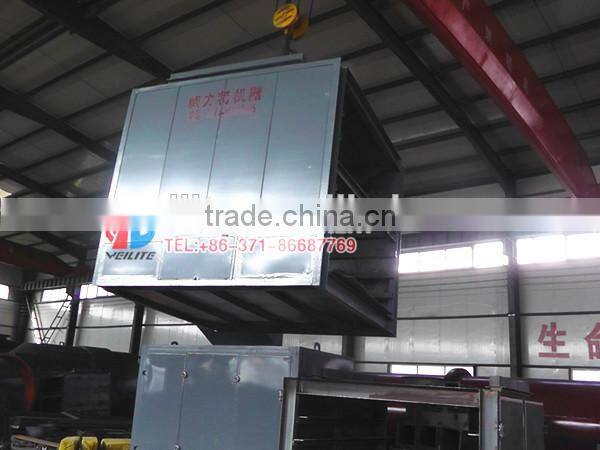

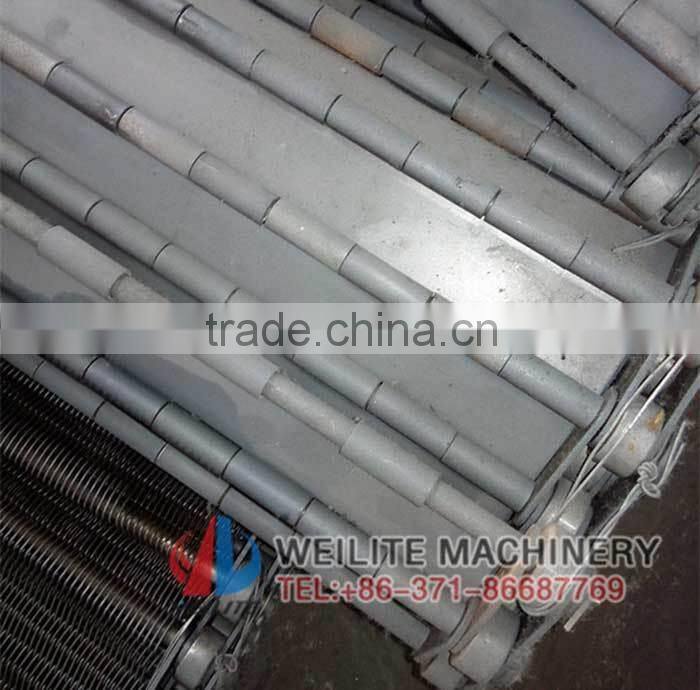

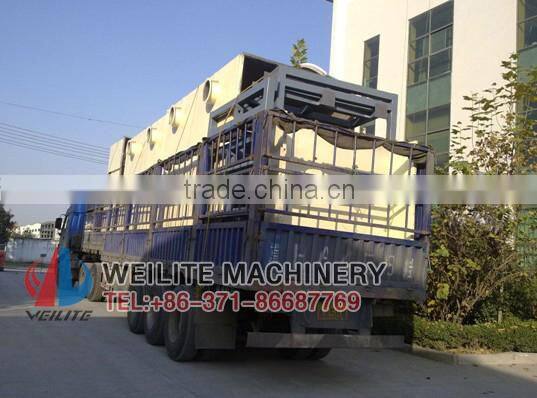

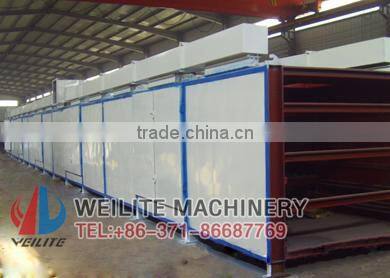

2.Machine and Delivery Pictures

3.Conveyor Dryer Technical Data

Type	WDH0.8x8m-3	WDH1x20m-3	WDH1.5x20m-3	WDH2x20m-3	WDH1.5x30m-5
Length(m)	8	20	20	20	30
Layer	3	3	3	3	5
Mesh Belt Width(m)	0.8	1	1.5	2	1.5
Moisture before drying(%)	8%-12%	8%-12%	8%-12%	8%-12%	8%-12%
Moisture after dried(%)	1%-3%	1%-3%	1%-3%	1%-3%	1%-3%
Power(kw)	3	2.2x3	3x3	4x3	5.5x5
Drying Temperature(°C)	70-300	70-300	70-300	70-300	70-300
Capacity(T/H)	2	10-15	20-30	35-50	55-60

We can design the machine fro you according to your requirments. If you need design service, pelase let us know your raw material moisture,your requirement on finished products moisture and capacity.Our professional engineer will give the best solution.

4.Our Services

1)Pre-sale services: Enthusiasm

We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

2)Sale services: Servant

Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

3)After-sale services: Faithfulness

To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.

4)We provide one-year warranty to make sure your machine runs consistently.

We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.

5.About Us--Zhengzhou Weilite Machinery

Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines such as crusher, ball mill, rotary dryer,vertical dryer,briquette machine,mixer, etc. Website: /

If any interest, please contact me.

Tel:+86 (0)371 86687769

Cell Phone:+86 15137145403

Contact Name:Ms. Ivy Zhang(Sales Manager)
