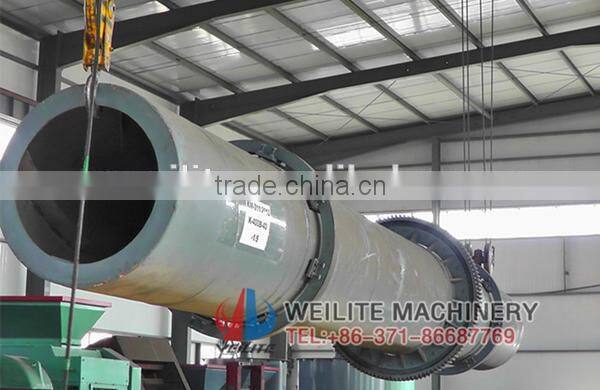

Rotary Drying Machine For Bentonite / Bentonite Rotary Dryer

1.Introduction of bentonite rotary dryer

The rotary dryer is mainly used for drying wet materials in building construction, metallurgy and chemical industries. It can dry various materials with strong adaptability. Besides, it is a common drying device in cement plant with simple and reliable operation.The rotary dryer applies the new type scatter plate device.It can make the material in the thin, average and complete condition Contact the heat airflow completely and use the heat energy fully.Moreover, it adopts reasonable operational parameter, and compared with general dryers, it reduces the coal and power consumption between 10 to 15% and increase the output between 10 to 15%.

2.Application of bentonite rotary dryer

bentonite rotary dryer is suitable to dry metallic and nonmetallic mineral, clay in cement industry and coal in coal mine, etc. Rotary dryer can be widely used to dry various materials, it has strong structure and easy operation.

3.Main technical parameter of bentonite rotary dryer

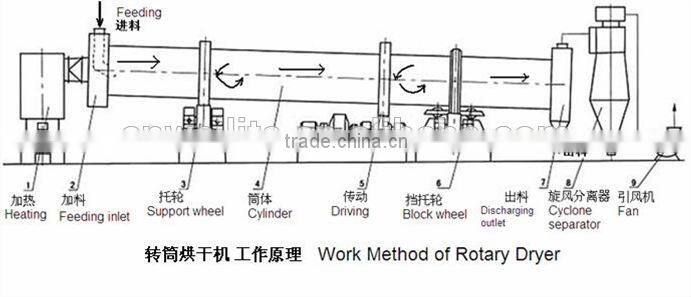

4.Working principle of bentonite rotary dryer

This product uses the sleeve sets out the structure can be doubled to reduce the length of the dryer, due to significant reduction of the cooling surface, resulting in decreased heat consumption, while doubling the heat exchange surface to greatly enhance thermal efficiency. Materials that can not touch fire, multi-drum rotary dryer provided in the inside and outside the cylinder, respectively, within the smoke pipe and circular pipe, the flue pipe of communication between the radial, the same energy efficient. It is obvious that on the hot and cold media in terms of material, this machine is a sleeve-type rotary cooler.

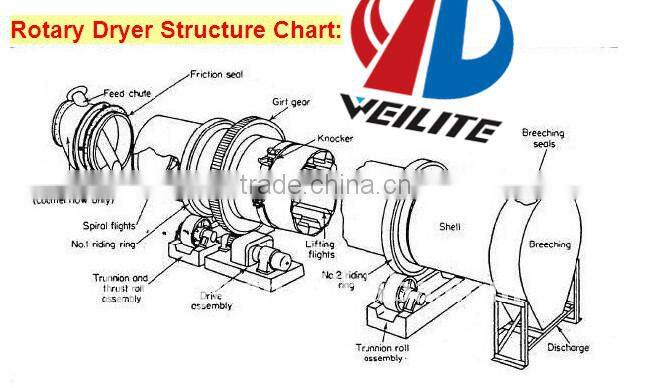

5.The whole structure of bentonite rotary dryer

Rotary dryer machine is mainly composed of shell, back and forth supporting wheels,feeding and discharging unit and gear cap. The accessories which are not in the the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.

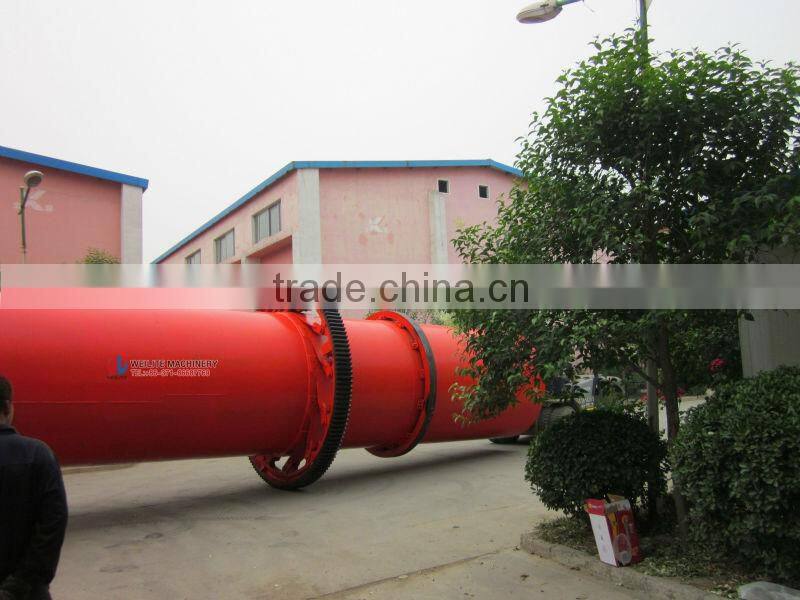

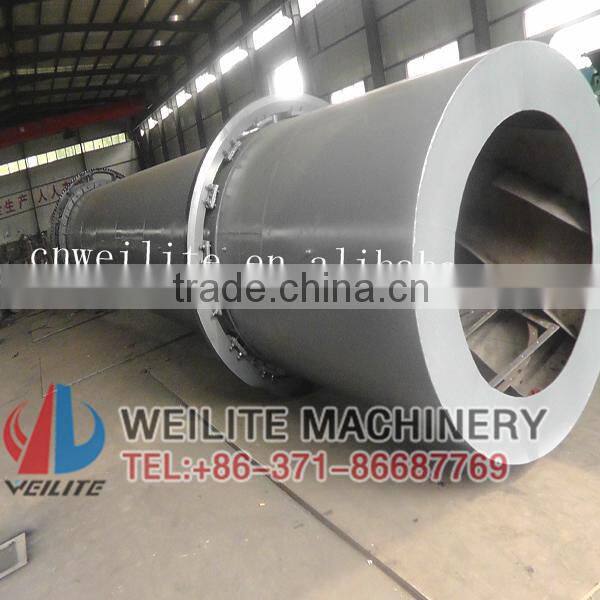

6.More pictures about bentonite rotary dryer

1)Pre-sale services: Enthusiasm

• We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

2)Sale services: Servant

• Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

3)After-sale services: Faithfulness

• To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.

4)We provide one-year warranty to make sure your machine runs consistently.

• We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.

1.Bare the the main body of the machine

2.Motors and other small spare parts are packaged in wooden cases

3.Or as your requirement.

 Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /. All of them are high quality and warmly welcome by our customers.

 1.What's the raw material that can be dried?

Answer:Any kind of meal and mineral material can be dried by our machine.

2.What kind of fuel can be used with the dryer?

Answer:Gas, Diesel, Coal, Wood and other solid fuels.

3.What's the drying type of your dryer?

Answer:Hot Air Drying Type.

4.Can we adjust the drying temperature?

Answer:Yes, we can adjust the drying temperature by adjusting the hot air inlet volume.
