RS485 Pressure Transmitter With LED Protocol

Measurement Range

-0.1...0~0.01...~100MPa

Proof pressure

≤1.5X rated pressure or 110MPa which ever is less

Pressure type

Gauge, absolute ,sealed gauge

Accuracy

±0.1%  ±0.25%(Typical)

Long term stability

±0.5%F.S/year

Zero temperature Drift

±0.03%F.S/°C(≤100KPa)   ±0.02%F.S/°C(>100KPa)

Span temperature Drift

±0.03%F.S/°C(≤100KPa)   ±0.02%F.S/°C(>100KPa)

Operating Temperature Range

-20°C~80°C

Storage Temperature Range

-40°C~120°C

Power supply

24VDC(15~30)VDC

Output signal

Analog output:4~20mA  0~10mA  1~5VDC  0~5VDC

Digit output: HART protocol RS485 protocol digit signal output

Pressure port

M20×1.5  G1/2 or customize

Display

-1999~9999

Housing material

1Cr18Ni9Ti stainless steel

Diaphragm material

316L

O-ring

Fluororubber

Cable

polyethylene

Insulation resistance

100MΩ  100VDC

Protection

IP65

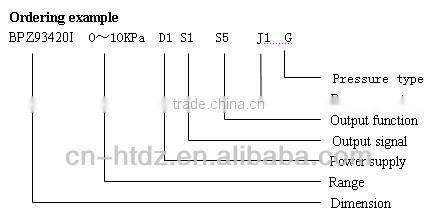

BPZ93420

Intelligent pressure transmitter

Code

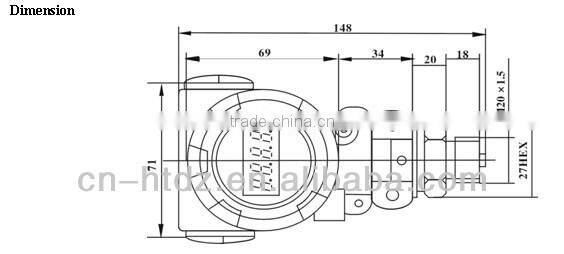

Dimension

I

General profile

II

Green 2088 housing

III

3051 housing

Range

 -0.1...0~0.01...~100MPa

(0-X)Kpa or MPa

X: Actual range

Code

Power supply

D1

24VDC

Code

Output signal

S1

4~20mADC

S2

1~5VDC

S3

0~5VDC

S4

0~10mAC

Code

Output function

S5

HART Protocol

S6

RS485 Protocol

Code

Pressure port

J1

M20×1.5 Male

J2

G1/2 Male

J3

Customize

Code

Electrical connection

B1

Din connector

B2

Others

Code

Pressure type

G

Gauge

A

Absolute

S

Sealed gauge
