Transmitter
- XI'AN
- T/T Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | HT | |
| Model Number | BPHT242 |
Product Description
Specifications
Wide range, full stainless steelaaFlush diaphragm.Various output signal
Scene adjustable
Protection: IP65
Description
BPHT24 pressure transmitter uses HT series piezoresistive silicon oil-filled sensor which have flush diaphragm as sensing element. Output signal transferred to standard output signal via integrated amplify circuit. Mainly apply in the fields those require high sanitary conditions.
Feature
² Wide range, full stainless steel,Flush diaphragm.
² Various output signal
² Scene adjustable
² Protection: IP65
² Marking:ExiaIICT6;
² CE certification
Application
² Compatible with 316LSS,noncorrosive gases & liquids
² Apply in fields of medical treatment, biological products, food sanitation.
Specification
Measurement Range | 0~35KPa...~20MPa |
Proof pressure | ≤1.5X rated pressure or 110MPa which ever is less |
Pressure type | Gauge, absolute ,sealed gauge |
Accuracy | ±0.25%(Typical) ±0.5%(Max.) |
Long term stability | ±0.1%F.S/year(Typical) ±0.2%F.S/year(Max.) |
Temperature Error- Zero | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
Temperature Error -Span | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
Operating Temperature Range | -20°C~80°C |
Storage Temperature Range | -40°C~120°C |
Power supply | 15~28VDC |
Output signal | 4~20mA 0~10/20mA 0/1~5VDC |
Pressure port | M20×1.5 G1/2 |
Housing material | 1Cr18Ni9Ti stainless steel |
Diaphragm material | 316L |
O-ring | Fluororubber |
Cable | Polyethylene |
Insulation resistance | 100MΩ 100VDC |
Protection | IP65 |

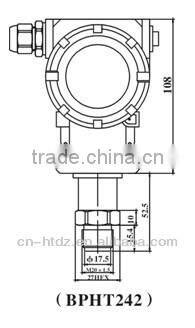

Dimension
