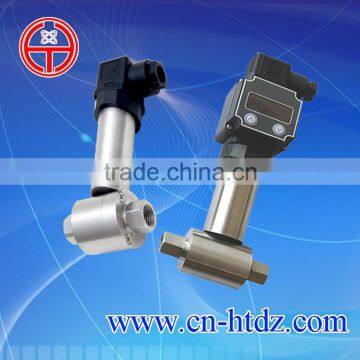

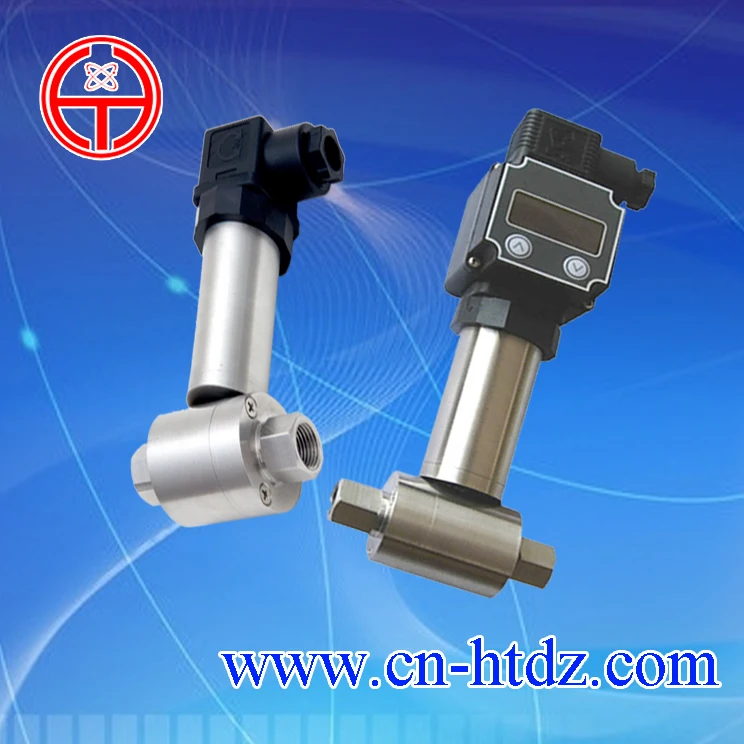

Differential Pressure Sensor&pressure Gauge
- XI'an
- Credit Card
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | Hengtong | |
| Model Number | BP93420D series |
Product Description
Range: 0~20Kpa…..35Kpa...~2MPa
Medium:Liquids or gases compatible with 316LSS
Proof pressure :1.5X rated range or 7MPa(Which ever is less)
Accuracy: ±0.25%(Typical) ±0.5%(Max.)
Static pressure :5X rated range or 7MPa which ever is less
Long term stability: ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(≤2000KPa)
Zero temperature Drift :±1%F.S(typical) ±1.5%F.S(Max.)
Span temperature Drift :±1%F.S(typical) ±1.5%F.S(Max.)
Operating temperature range: -20℃~80℃Storage temperature range -40℃~120℃
Power supply: 15~36VDCOutput signal Two wire:4~20mA
Three wire: 0~10mA 0~20mA 0~5VDC 0~10VDC 1~5VDC
Pressure port: G1/4 Female or 1/4NPT or customize
Housing material: 304 Stainless steel Diaphragm material 316L
O ring Fluororubber Cable Polyethylene ventilate cable
Insulation resistance 100MΩ,100VDCProtection IP65
Quantity≤10 will be delivered 3 days later
≤100 will be delivered 10 days later
please contact us for more information
