Submersible Transmitter
- XI'AN
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | HT | |
| Model Number | BH93420 |
Product Description

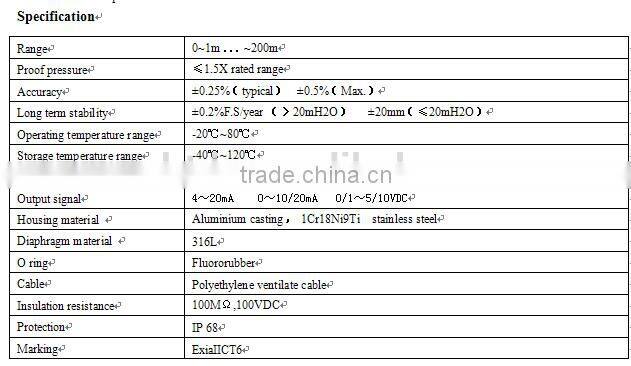

Specifications
Wide measurement range,Protection: IP68
Various output signal
Multiple protection
Good anti-leakage performance
Description
BH93420 submersible transmitter , use HT series piezoresistive silicon oil-filled sensor as measurement component. According the relation between pressure, density and liquid level, the hydraulic transducers measure the liquid pressure which in direct ratio with depth of liquid, then via amplificatory circuit, the measured pressure is transferred to standard signal.
Special use cable, advanced seal technology, reliable amplify circuit and accurate compensation technic ensure the products have high accuracy and good capability of anti-leakage.
Feature
Wide range
Protection: IP68;
Various output signal
Good anti-leakage
Marking: ExiaIICT6
Good anti-electromagnetic interference
Application
Compatible with 316LSS,noncorrosive liquids
Apply in Petroleum industry, chemical industry, generating station, water supply, hydrology etc. those need to measure &control liquid’s level.
