Home > Products > New Products > E+H Pressure Transmitter
E+H Pressure Transmitter
- XI'AN
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | HT | |
| Model Number | BP93420-IIE |
Product Description
Specifications
E+H HousingScene adjustable
Wide range, cast aluminium & explosion-proof housing,
Protection:IP65;
Various output signal.
Description
BP93420IIE pressure transmitter uses HT series piezoresistive silicon oil-filled sensor as the signal measuring element. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance. Have strong anti-interference performance, can working in harsh environment conditions for long term.
Feature
Wide range, cast aluminium & explosion-proof housing, various pressure port
Various output signal, scene adjustable
Multiple protect, strong anti-interference capability.
Marking: ExiaIICT6.
Application
Compatible with 316LSS,noncorrosive gases & liquids.
Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc

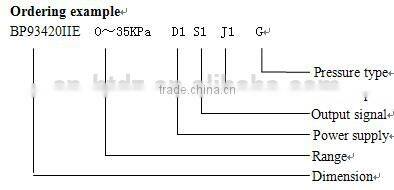

Ordering Information
Contact Us
- Baoji Hengtong Electronics Co., Ltd.
- Contact nameYuki huang Chat Now
- Phone86-0917-3602541
- AddressNo.195 Gaoxin Road, Baoji, Shaanxi
