explosion-proof pressure transmitter

FOB Price

USD $1 - $60 / Piece

1 Piece(Min.Order)

Supply Ability 500 Piece / Pieces per Month
Port XI'AN
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China		Brand Name	HT
Model Number	BP93420-IC

Product Description

Specifications

Wide range
Protection :IP65;
Various output signal
CE certification
Marking :ExiaIICT6;

Description

BP93420IC high temperature pressure transmitter, use HT series piezoresistive silicon oil-filled sensor as measurement component. Sensor’s output transferred to standard output signal via integrated amplify circuit. Have high reliability &stability.

Feature

² Wide range

²Protection :IP65

² Various output signal

² CE certification

² Marking :ExiaIICT6;

Application
²Compatible with 316LSS,noncorrosive gases & liquids
²Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.

Specification

Measurement Range	-0.1...0~0.01...~100MPa
Proof pressure	≤1.5X rated pressure or 110MPa which ever is less
Pressure type	Gauge, absolute ,sealed gauge
Accuracy	±0.25%(typical) ±0.5%(Max.)
Long term stability	±0.1%F.S/year(typical) ±0.2%F.S/year(Max.)
Temperature Error- Zero	±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa)
Temperature Error -Span	±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa)
Media Temperature Range	-20°C~150°C
Surrounding Temperature Range	-40°C~80°C
Power supply	15~30VDC
Output signal	4~20mA 0~10/20mA 0/1~5/10VDC

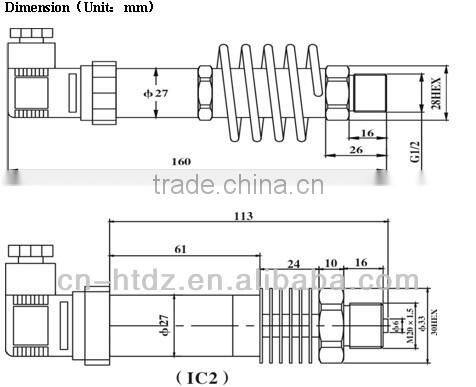

Pressure port	M20×1.5,G1/2 or customize
Housing material	1Cr18Ni9Ti stainless steel
Diaphragm material	316L
O-ring	Fluororubber
Cable	polyethylene
Insulation resistance	100MΩ,100VDC
Protection	IP65
