Mobile Hospital Medical X-ray Examination Bus for Sale (10.5m HIGER)

Model

Main parameters of finished vehicle and engine

Main Parameters of Chassis

Standard Configurations of Vehicle

Optional x ray machine

CQK5150XYL3

Overall Dimensions(mm): 10490×2500×3350,3590 (height with roof air-condition)

Wheel tread (front/rear):2020/ 1860

Wheelbase(mm):5170

Axle Qty:2

Axle Load(kg):4750/10000

Engine:YC6G240-30

Fuel type: Inline 6 cylinder, water-cool , supercharged diesel engine

Engine Displacement(ML):7800

Power(kw):177

Min Ground Clearance(mm):≥200

Discharge Standard: GB17691-2005 China Ⅲ,GB3847-2005

Chassis:KLQ6109E3

Steering system: steering wheel

Gearbox: manual, 6 speed

Drive: postposition drive

Brake: front and rear wheel drum brakes, dual circuit air pressure brake system

Max Speed:115Km/h

Tyre:11R 22.5 vacuum tire

Tyre Qty:6

Wheel Hub:Spinning steel ring

Suspension: Multi-leaf spring, front and rear horizontal Stabilizer Bar

GVW(kg):14750

Complete vehicle curb mass(kg):13500

Approach angle/departure angle(°):10/8

ABS and automatic adjustment arm are equipped.

Windows: Paste-style and full-closed tempered glass; The end window on both sides of vehicle and driver window is semi-containing push-pull.

Dual Column X-ray machine mounted in vehicle(Toshiba image intensifier)

Radiological Protection in Radiation area conforms to GB GBZ130-2002; x-ray leak≤2.5uGy/h

 Manual rabbit ear-shaped rear-view mirror

Radio and Cassette Player

Deluxe molding roof, air outlet with reading lights; Interior decorations are suitable for scrubbing and washing; Luxury instrument desk; Imitated peach wood decoration.

Flat floor

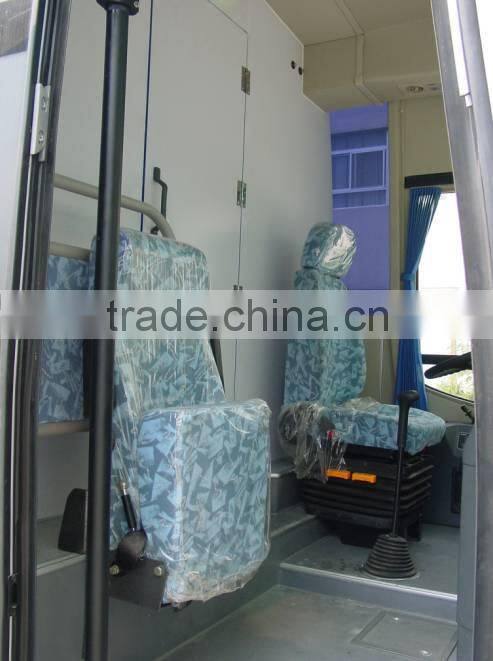

Shock absorption and adjustable driver seat; High backrest guides chair.

Install hands-free intercom system at test areas and radiation areas.

Installation overhead type non-independent air-conditioning on vehicle roof.

Independent water warm 2 pcs; Foreside windshield with defrost function.

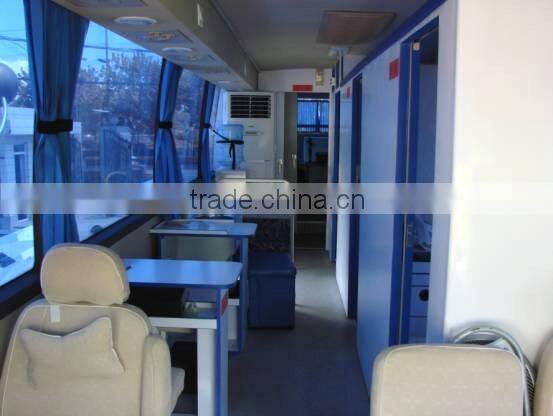

Install Midea 3P cabinet A/C 1pc and 1P windows A/C 1pc inside of vehicle inside of vehicle.

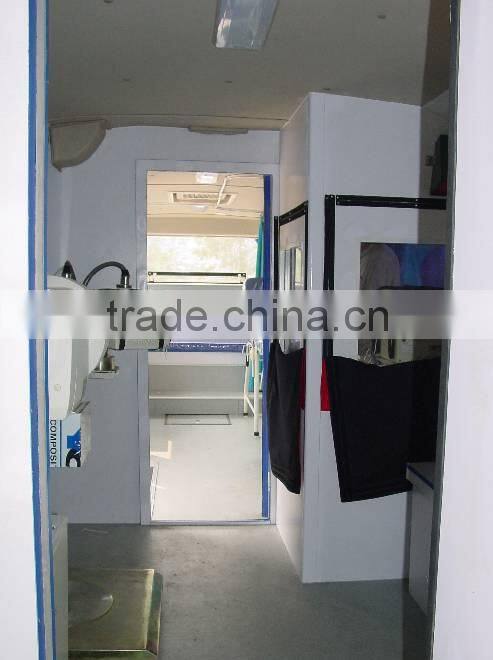

Install two ventilation skylights on vehicle roof. One for fluoroscopy radiography area, and another for routine examination area.

Install 1 220V safety warning light at radiation area.

Install respectively 1 220V x ray warning light on the top of foreside and rear of fluoroscopy radiography room.

Install respectively 1 220V ultraviolet disinfection lamp in fluoroscopy radiography room and routine examination room.

30m mobile cable

Distribution box (1pc):To manage the power supply of vehicle.

Console:To control the equipment and power supply of vehicle.

Interior floor is imported medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static.

ECG and type-B ultrasonic area contains workbench and ECG, type-B ultrasonic examination bed

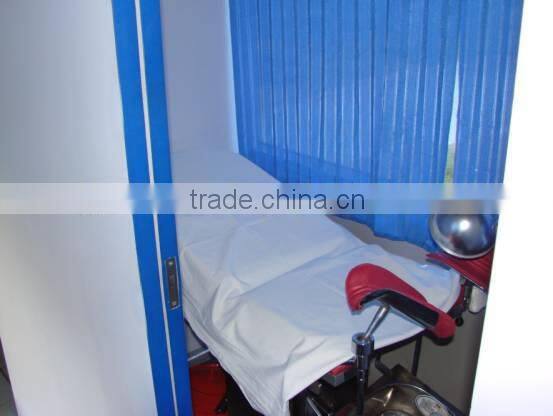

Gynaecology examination bed:1pc

Drinking fountain:1pc

High voltage generator and tube made in China

20kw(300mA)only fluoroscopy

20kw(300mA)only radiography

20kw(300mA)fluoroscopy and radiography

30Kw(400mA)only fluoroscopy

30Kw(400mA)only radiography

30Kw(400mA)fluoroscopy and radiography

50Kw(500mA)only fluoroscopy

50Kw(500mA)only radiography

50Kw(500mA)fluoroscopy and radiography

CPI Canada generator and TOSHIBA tube

30Kw(400mA)only fluoroscopy

30Kw(400mA)only radiography

30Kw(400mA)fluoroscopy and radiography

50Kw(630mA)only fluoroscopy

50Kw(630mA)only radiography

50Kw(630mA)fluoroscopy and radiography

SEDECAL SPAIN generator and TOSHIBA tube

45Kw(500mA)only fluoroscopy

45Kw(500mA)only radiography

45Kw(500mA)fluoroscopy and radiography
