Blood Collection Medical Bus Mobile Clinic Mobile Hospital CQK5150XYL3

Model

Main parameters of finished vehicle and engine

Main Parameters of Vehicle Chassis

Main Configurations of Vehicle

CQK5150XYL3

Overall Dimensions(mm): 10490×2500×3350,3590 (height with roof air-condition)

Wheel tread (front/rear):2020/ 1860

Wheelbase(mm):5170

Axle Qty:2

Axle Load(kg):4750/10000

Engine:YC6G240-30

Fuel type: Inline 6 cylinder, water-cool , supercharged diesel engine

Engine Displacement(ML):7800

Power(kw):177

Min Ground Clearance(mm):≥200

Minimum Turning Radius:  9m

Emission Standard: GB17691-2005 China Ⅲ,GB3847-2005

Chassis:KLQ6109E3

Steering system: steering wheel

Gearbox: manual, 6 gears

Drive: postposition drive

Brake: front and rear wheel drum brakes, dual circuit air pressure brake system

Max Speed:115Km/h

Tyre:11R 22.5 vacuum tire

Tyre Qty:6

Wheel Hub:Spinning steel ring

Suspension: Multi-leaf spring, front and rear horizontal Stabilizer Bar

GVW(kg):14750

Complete vehicle curb mass(kg):13500

Approach angle/departure angle(°):10/8

ABS and automatic adjustment arm are equipped.

Windows: Paste-style and full-closed tempered glass; The end window on both sides of vehicle and driver window is semi-containing push-pull.

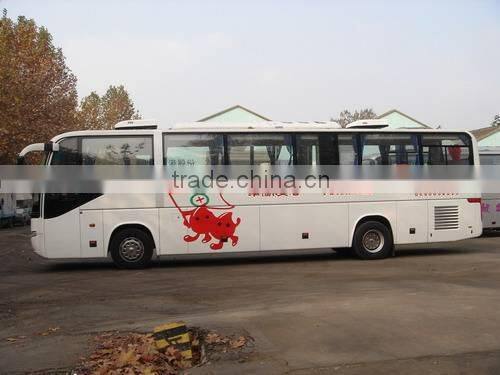

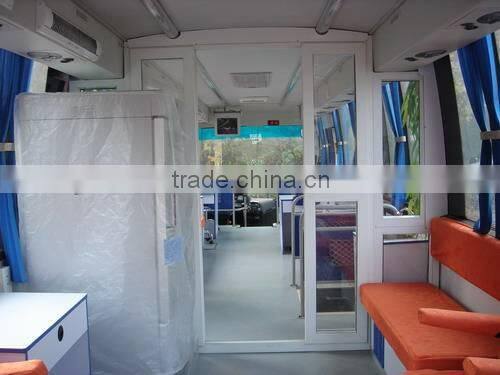

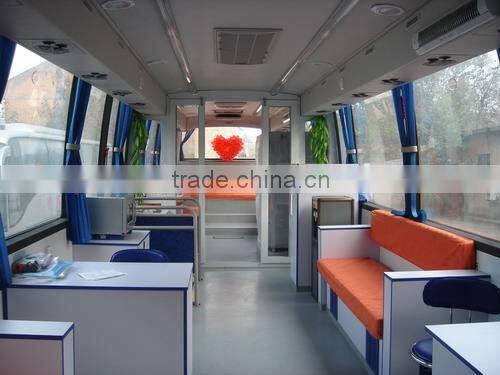

1)          Suzhou HIGER 10.5M Vehicle

2)          Non-slipper floor

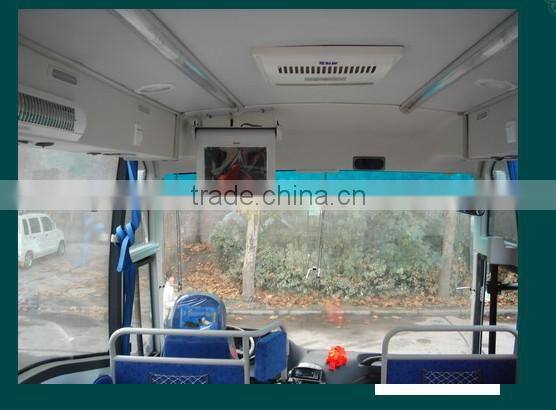

3)          1.5P Hanging A/C

4)          2P Cabinet A/C

5)          Partition

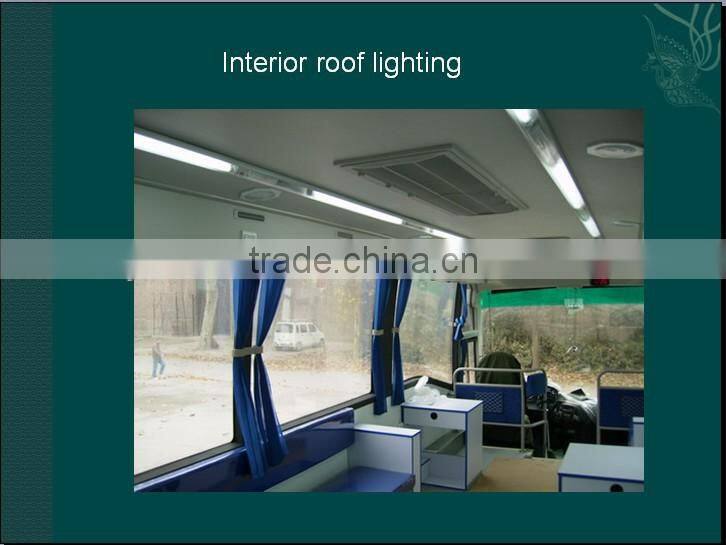

6)          Spotlight

7)          Registration table

8)          Doctor chair

9)          Wash basin

10)        Resting bench

11)        Drinking fountain

12)        Microwave oven

13)        Household refrigerator

14)        Ultraviolet disinfection lamp

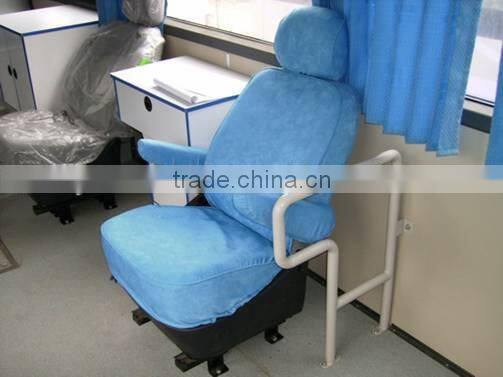

15)        Blood collecting chair

16)        Blood collecting table

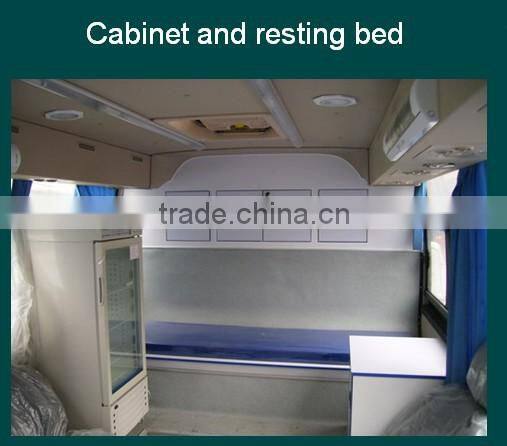

17)        Resting bed

18)        Heat sealer

19)        Haier blood bank refridgerator (258L)

20)        HONDA 10kw generator

21)        Inverterd power supply

22)        PDS(power distribution system)
