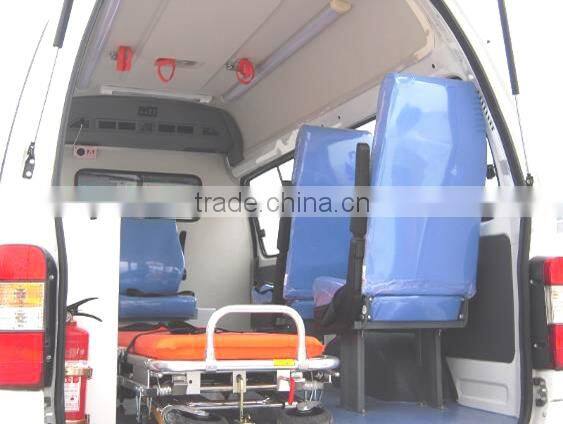

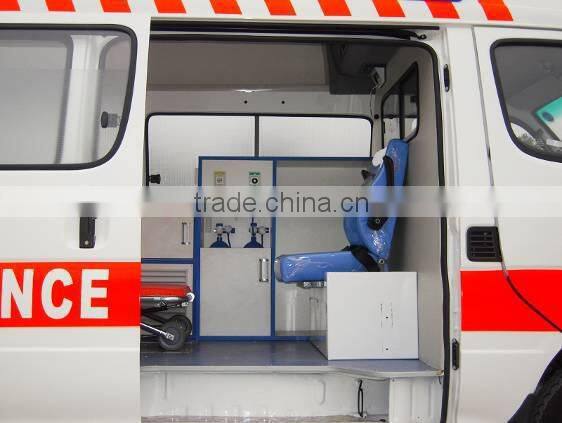

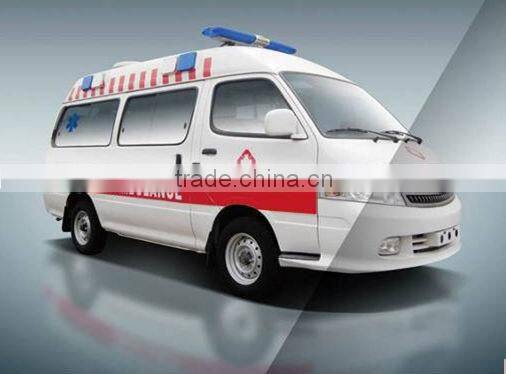

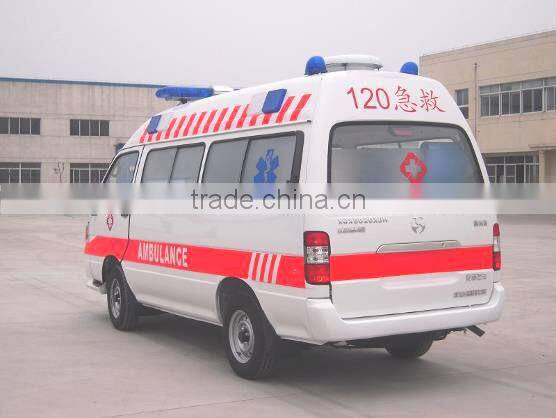

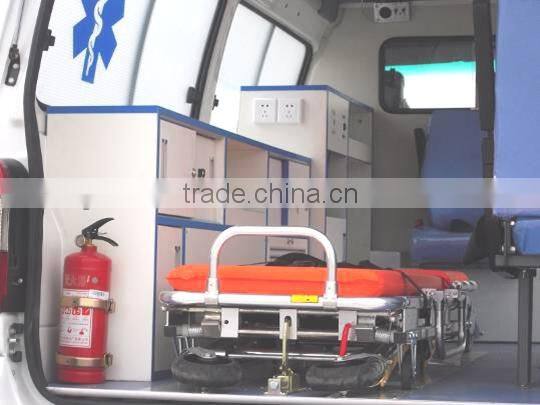

High Security Medical Emergency Ambulance
- Shanghai/others
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
XQX5100 Dental Treatment Room Design Mobile Medical Truck)
-
SY6480AD-ME(Q) Haise Left Hand Drive Ambulance/mobile Clinic
-
Mobile Hospital BUS
-
SY6480AD-ME(Q) Haise Left Hand Drive Ambulance
-
Medical Emergency Ambulance M209
-
Mobile Clinic/FORD Intensive Care High Roof LHD Ambulance/CQK5030XJH4 FORD Transit High Roof Left Hand Drive Ambulance
Product Details
| Type | Other, Ambulance | Brand Name | ANJUE | |
| Model Number | XQX5020 | Place of Origin | Jiangsu, China |
Product Description
Specifications
Ambulance is for Medical Emergency .1,Healthy,safety
2,High quality
3,Convinient
XQX5020 High Security
Medical Emergency Ambulance
Technical Specifications
- Basic Parameters:
Model No | XQX5020XJH | |
Dimensions | Length (mm) | 5085 |
Width (mm) | 1690 | |
Height (mm) | 2405 | |
Wheel Base (mm) | 2590 | |
Front/Rear Axle Tread (mm) | 1320/1175 | |
Front / Rear Track (mm) | 1460/1440 | |
Approach/Departure Angle (°) | 19/19 | |
Weight | Vehicle Curb Weight (kg) | 1810 |
Gross Comb. Weight (kg) | 2385 | |
Performance | Max. Speed (km/h) | 120 |
Max. Grade Ability (%) | ≥30 | |
Min. Ground Clearance (mm) | 155 | |
Min. Turning Circle (m) | 11.5 | |
Fuel Consumption (L/100km) | ≤10.6 with 93#petrol | |
Rated Passenger Capacity(Person) | 2~7 | |
- Engine
Engine | Model | BJ491EQ3 |
Rated Power(kw/r/min) | 76/4300~4600 | |
Max. Torque(Nm/r/min) | 193/2000~2600 | |
Type | in-line 4 cylinders,16 valve, water-cooling | |
Displacement(ml) | 2237 | |
Displacement Standard | GB18352.3-2005 (Euro Ⅲ) | |
CO≤5%,HC≤2.500ppm | ||
Chassis | Model No | FOTON View Complete Car |
Transmition | Model No | Manual 5 speed |
FR. Suspension | Type | independently sprung wheel |
RR. Suspension | Type | taper leaf spring |
Fuel Tank | Capacity (L) | 65L |
Wheel &Tire | Type & Size | 185R14C |
Steering | Type | Machinery Power Steering |
Brake System | Front Brake | Disc |
Rear Brake | Drum,double-circuit system break,vacuum booster | |
ABS system | N/A |
