Home > Products > Medical Vehicle & Ambulance > Mobile Medical Clinic XQX5100
Mobile Medical Clinic XQX5100
- shenzhen/shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Medical Equipment | Yes | Transmission Type | Manual | |
| Condition | New | Emission Standard | Euro 2 | |
| Fuel Type | Diesel | Length (m) | 8 - 15m | |
| Place of Origin | Anhui, China | Brand Name | Medical Mobile Clinic-Anjue | |
| Model Number | Medical Mobile Clinic--XQX5100 |
Product Description
Specifications

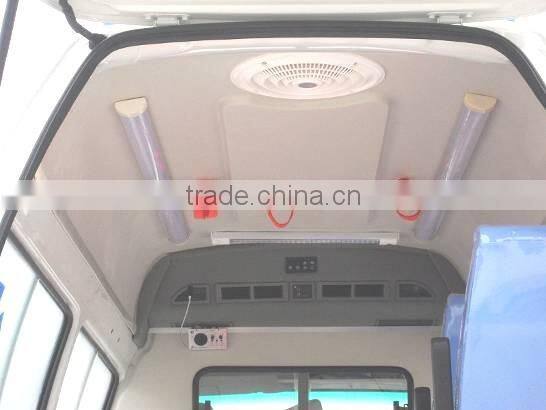

Medical Mobile Clinic,1.High-intensity,UV protection,asepsis,fire-retardant material interior.
2.Long handrail on roof.
Emergency Ambulance
B.Technical Specifications
Basic Parameters:
Model No | XQX5020XJH | |
Dimensions | Length (mm) | 5085 |
Width (mm) | 1690 | |
Height (mm) | 2405 | |
Wheel Base (mm) | 2590 | |
Front/Rear Axle Tread (mm) | 1320/1175 | |
Front / Rear Track (mm) | 1460/1440 | |
Approach/Departure Angle (°) | 19/19 | |
Weight | Vehicle Curb Weight (kg) | 1810 |
Gross Comb. Weight (kg) | 2385 | |
Performance | Max. Speed (km/h) | 120 |
Max. Grade Ability (%) | ≥30 | |
Min. Ground Clearance (mm) | 155 | |
Min. Turning Circle (m) | 11.5 | |
Fuel Consumption (L/100km) | ≤10.6 with 93#petrol | |
Rated Passenger Capacity(Person) | 2~7 | |
- Engine
Engine | Model | BJ491EQ3 |
Rated Power(kw/r/min) | 76/4300~4600 | |
Max. Torque(Nm/r/min) | 193/2000~2600 | |
Type | in-line 4 cylinders,16 valve, water-cooling | |
Displacement(ml) | 2237 | |
Displacement Standard | GB18352.3-2005 (Euro Ⅲ) | |
CO≤5%,HC≤2.500ppm | ||
Chassis | Model No | FOTON View Complete Car |
Transmition | Model No | Manual 5 speed |
FR. Suspension | Type | independently sprung wheel |
RR. Suspension | Type | taper leaf spring |
Fuel Tank | Capacity (L) | 65L |
Wheel &Tire | Type & Size | 185R14C |
Steering | Type | Machinery Power Steering |
Brake System | Front Brake | Disc |
Rear Brake | Drum,double-circuit system break,vacuum booster | |
ABS system | N/A |
