Product Description

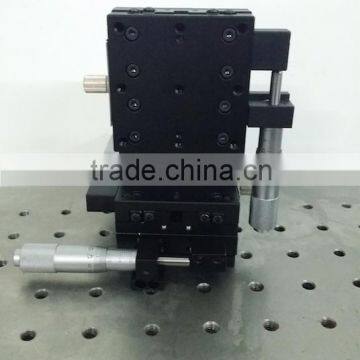

Aluminum Manual xyz linear portal station , Dimension 60x60mm, Travel 25mm
manual xyz linear stage
Features:
*High accuracy cross-roller guide for high loading and performance
*Mounting holes both on table top and bottom for connect with other stages easily
Model Number | J88SP25G |
Dimension | 60mm x 60mm |
Drive | Micrometer Head |
Travel Range | 25mm |
Min Scale | 0.01mm |
Min Adjustment | 0.002mm |
Guide | Cross-roller Guide |
Loading | 5kg |
Straightness | 2μ |
Deflection | 25” |
Yawing | 15” |
Parallelism | 15μ |
Weight | 0.2kg |
Material | Aluminum |
Surface Treatment | Black-Anodized |
