micro motorized goniometer Z stage J02DJ15
- Credit Card
You May Like
-
Motorized goniometer stage , goniometer stage , rotation stage, rotary stage J03DJ45
-
Motorized tilt device , goniometer stage , goniometer Z stage , tilt stage goniometer J03DJ45
-
Motorized lab jack, motion lab jack, linear slides, lab jack for vertical tranlation/ 60mm
-
Motorized lab jack, motion lab jack, linear slides, lab jack for vertical tranlation/ 120mm
-
Motorized lab jack translation, motorized lifting table, lift table, raising platform/30MM
-
Motorized lab jack translation, motorized lifting table, lift table, raising platform/100MM
Product Details
| Place of Origin | Beijing, China |
Product Description
Mini Motorized goniometer stage, positioning goniometer stage, tilt stage goniometer, +/- 10 degree

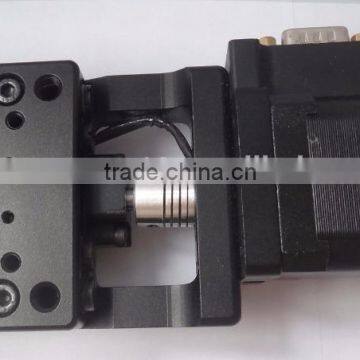

micro motorized goniometer Z stage
Features:
*Regular stage set with stepper motor and RS232 interface, can connect with motion controller convenient.
*Worm gear structure ensure the stage with high loading and accuracy
*The mounting holes both on the top and bottom of stage which can combine with other stage easily
*The stage design with the same rotation centers when it use together with 01DJ10
*Both of the two ends have limit switches and can change the motor into servo or redesign
Model Number | J02DJ15 |
Angle Range | +/-15° |
Dimension | 65x65mm |
Transmission Ratio | 252:1 |
Height of Rotation Center | 50mm+/-0.2mm |
Drive | Worm Gear |
Guide | Cross-roller Guide |
Stepper Motor(1.8°) | SST42D2121 |
Material | Aluminum |
Surface Treatment | Black-Anodized |
Loading | 5kg |
Weight | 0.75kg |
Resolution | 0.005°(non-MS Driver) 1” (20-MS Driver) |
Accuracy of Rotation Center | 0.03mm |
Speed | 7°/sec |
Repeatability | +/-4” |
Accuracy | +/-9” |
Backlash | +/-4” |
