Product Description

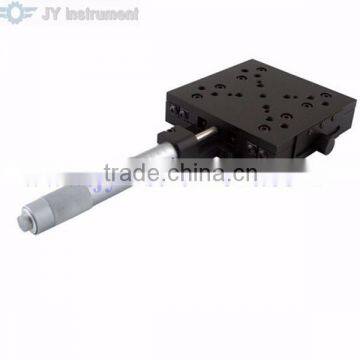

Aluminum Manual linear positioning stage , Dimension 100x100mm, Travel 50mm
Features:
*High accuracy cross-roller guide for high loading and performance
*Mounting holes both on table top and bottom for connect with other stages easily
Model Number | 15SP50G |
Dimension | 100mm x 100mm |
Drive | Micrometer Head |
Travel Range | 50mm |
Min Scale | 0.01 |
Min Adjustment | 0.002 |
Guide | Cross-roller Guide |
Loading | 20kg |
Straightness | 2μ |
Deflection | 25” |
Yawing | 15” |
Parallelism | 15μ |
Weight | 1kg |
Material | Aluminum |
Surface Treatment | Black-Anodized |
