Home > Products > Water well drill rig > Small Water Well Mobile Percussion!!depth 120m,diameter:115-254mm,KW10 High-Effect Hydraulic Geothermal Water Well Drilling Rigs

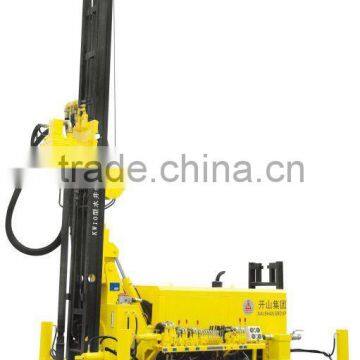

Small Water Well Mobile Percussion!!depth 120m,diameter:115-254mm,KW10 High-Effect Hydraulic Geothermal Water Well Drilling Rigs
- any port of china
- T/T Credit Card
You May Like
-
Water Well drilling machine!!depth 120m,diameter:115-254mm,KW10 High-Effect Hydraulic Geothermal Water Well Drilling Rigs
-
Water Well Drilling!!depth 200m,diameter:115-254mm,KW20 High-Effect Hydraulic Geothermal Water Well Drilling Rigs
-
Water Well Mobile Percussion!!depth 120m,diameter:115-254mm,KW10 High-Effect Hydraulic Geothermal Water Well Drilling Rigs
-
Down the Hole Water Well Drilling!!depth 200m,diameter:115-254mm,KW20 High-Effect Hydraulic Geothermal Water Well Drilling Rigs
-
new water well drilling rig!!depth 200m,diameter:115-254mm,KW20 High-Effect Hydraulic Geothermal Water Well Drilling Rigs
-
Portable water well drilling rigs!!depth 200m,diameter:115-254mm,KW20 High-Effect Hydraulic Geothermal Water Well Drilling Rigs
Product Details
Condition | New | Type | Rotary Drilling Rig | |
Place of Origin | Zhejiang, China | Brand Name | kaishan | |
Model Number | KW10 | Usage | Water Well |
Product Description
Specifications
water drilling rigs1.ISO9001;2000
2.GC Certificate
3.European design
4.High Quality
» » Quick view « «
» » Detailed Show « «
Feature: | KW10 |
Dia.of hole | 115-254mm |
Drilling depth | 120m |
Air consumption | 16-30m3/min |
Working pressure | 10.5-24.6bar |
Ground clearance | 245mm |
Support cylinder stroke | 460mm |
Feed cylinder stroke | 1750mm |
Feed power | 30000N |
Lift power | 70000KN |
Speed of rotator | 50-100rpm |
Rotation torque | 3200N·M |
Climb capacity | 15o |
Traveling speed | 0-2.5km/h |
Recommend compressor | LGCY-21/20 or LGCY-26/20 LGCY18/17 |
Engine | |
Engine model | YC4D80 |
Power | 58KW/80HP |
Rotation speed | 2400rpm |
Drill Components | |
Hammer | DHD360(DHD380) |
Dia. Of rod | Φ76 ,Φ89mm , |
Length of Rod | 3m |
Dia.of Bit | Φ115-254mm |
Weight | 6500KG |
Dimensions | 5700x2300x2700mm |
Recommended matching air compressor:
LGCY-21/20 Diesel mobile screw air compressor
Capacity m3/min(cfm): | 22(777) |
Pressure bar(psig) | 20(290) |
Compression Stage | Double |
Diesel Engine | |
Engine Model No. | Cummins 6LTAA8.96-C325 |
Rated Power(KW(HP)) | 239(325) |
Rated RPM(r/min) | 1800 |
Unload RPM(r/min) | 1400 |
Dimensions | 4200*2000*2700mm |
Weight | 5000KG |
» » For more size « «
1)KW30,diameter:168-300mm depth:300m, http://www.china.cn/product-gs/668687151/KW30
2)KW20, diameter: 152-254mm depth:200m, http://www.china.cn/product-gs/636510250/multi_function_water_well_drill_KW20.html
3)KW10, diameter:152-254mm depth:120m, http://www.china.cn/product-gs/671047562/multi_function_water_well_drill_depth.html
» Quality control«
» » cooperation « «
Certificate
About us:
1. KAISHAN is the only manufacturer in china which is able to mass produce the motor powered and diesel powered portable air compressor, breaking the monopoly of foreign brand in the air compressor.
2. Good adaptability: automatically control the air delivery of diesel engine by matching the demand of air consumption, which equal to frequency conversion control in motor power screw air compressor
3. Operation parameter is straightforward, with multiple warning and shut down protection device
Our Factory produce all kinds of air compressor and rock drill and drill rig, any feedback from you will be highly appreciate.
more question pls contact Ms.Susan.
