Home > Products > Water well drill rig > Kaishan KW30 Water Well Drill Rig Drill Depth 300m Water Well Drilling Rig

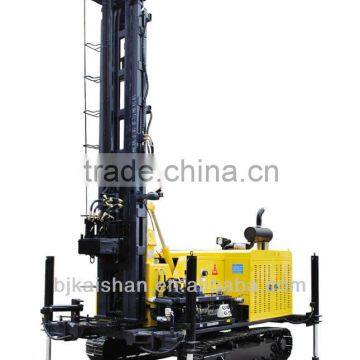

Kaishan KW30 Water Well Drill Rig Drill Depth 300m Water Well Drilling Rig
- NINGBO SHANGHAI TIANJIN
- T/T Credit Card
You May Like
-
china drill rig manufacturer! 200m deep water drilling wells
-
china drill rig manufacturer! 200m deep water well drilling machine
-
china drill rig manufacturer! 200m deep mini water powered generators
-
china drill rig manufacturer! 200m deep Bore well drilling machine
-
china drill rig manufacturer! 200m deep water rig
-
china drill rig manufacturer! 200m water drilling machine for sale
Product Details
| Condition | New | Place of Origin | China | |
| Brand Name | Kaishan | Model Number | KW30 | |
| Voltage | 220V | Dimension(L*W*H) | 5200*2300*3200 mm | |
| Weight | 9500KG | Certification | ISO | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1.Diameter of Hole:168-300 mm2.Drilling Depth:300 m
3.Air Consumption:16-40 m3/min
4.Working Pressure:10.5-24.6 bar
Introductions:
KW30 Water Well Drill Rig is a light, efficient and multifunction drilling plants. The power system is provided by
the air compressor. It is well received by professionals of drilling well, irrigation well, geothermy well and other
well holes, especially for water intake projects in mountain areas and lithostrome. The drill rig can drill holes in
various stratum and the diameter of the hole reaches 300mm. It uses the latemodel hydraulics, large torque
hydraulic motor and cylinder system powered by wellknown multicylinder engine. Its unique pump package design
easy to maintenance and lower cost of upkeep. Its centralized hydraulic control board facilitates operation. The drill
rig adopts crawler chassis and cross-country performance is very well.
Specification of KW30 Multi-Function Well Drill Rig
Structure | Parameters |
Diameter of Hole | Φ168-300 mm |
Drilling Depth | 300 m |
Air Consumption | 16-40 m3/min |
Working Pressure | 1.05-2.46 Mpa |
Ground Clearance | 280 mm |
Support Cylinder Stroke | 460 mm |
Feed Cylinder Stroke | 1750 mm |
Feed Power | 50000 N |
Lift Power | 150000 N |
Speed of Rotator | Low: 43/52/69 rpm; Quick: 85/102/125 rpm |
Rotation Torque | Low: 8000N.M; Quick:4000N.M |
Climb Capacity | 25 |
Traveling Speed | 0-2.5 km/h |
Weight | 9500 kg |
Dimension | 5200×2300×3200 mm(L*W*H) |
Specification of LGCY-33/25 Screw Air Compressor
Structure | Parameters |
Complete Machine | |
Model | LGCY-33/25 |
Capacity | 33(m³/min) |
Working Pressure | 25(Bar) |
Weight | 6800(kg) |
L×W×T | 4700×2100×2850(mm) |
Tyre Size × Number | 7.50-16×4 |
Diesel Engine | |
Diesel Manufacturer | Yu Chai |
Type | YC6K550L |
Model | Vertical, line,Water-cooled |
Breathing Method | Inter-cooling |
Bore × Stroke × Cylinder | 130×163×6 |
Rated Power | 550 (kw) |
Diesel Oil Capacity | 35(L) |
Tank Capacity | 600(L) |
Voltage | 24(L) |
Air Compressor | |
Compress Grade | 2 |
Compressor Oil Capacity | 80 |
Air Supply Valve Specification × No. | G2×1, G3/4×1 |
