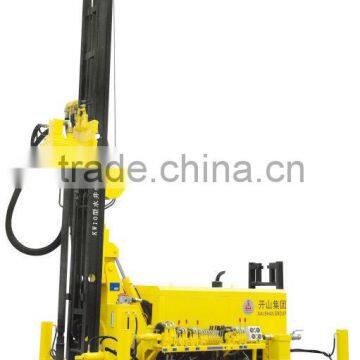

KW10 Water Well Drilling Rig 100m~120m Water Well Drilling Rig

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Drilling Speed	50rpm-100rpm	Place of Origin	Beijing, China
Brand Name	Kaishan	Model Number	KW10 Water Well Drill Rig
Voltage	380v	Power(W)	58kw
Dimension(LWH)	600023002500mm	Weight	6000 kg
Certification	CE, ISO	After-sales Service Provided	Overseas service center available

Diameter of Hole: 152-254 mm
Drilling Depth: 30 -120 m
3.Air Consumption: 16-30 m3/min
4.16-30 m3/min: 10.5-24.6 Mpa

Introductions:

KW10 Water Well Drill Rig is a light, efficient and multifunction drilling plants. The power system is provided by the air compressor. It is

well received by professionals of drilling well, irrigation well, geothermy well and other well holes, especially for water intake projects in

mountain areas and lithostrome. The drill rig can drill holes in various stratum and the diameter of the hole reaches 254mm. It uses the

latemodel hydraulics, large torque hydraulic motor and cylinder system powered by wellknown multicylinder engine. Its unique pump

package design easy to maintenance and lower cost of upkeep. Its centralized hydraulic control board facilitates operation. The drill

rig adopts crawler chassis and cross-country performance is very well.

Specification of KW10 Multi-Function Well Drill Rig

Specification of LGCY-22/20 Screw Air Compressor

Structure	Parameters
Complete Machine
Model	LGCY-22/20
Capacity	22(m³/min)
Working Pressure	2.0(Mpa)
Weight	4850(kg)
Dimension L×W×T	4600×1950×2850(mm)
Tyre Size × Number	7.50-16×4
Diesel Engine
Diesel Manufacturer	Cummins
Type	6LTAA8.9-C325
Model	Vertical, line,Water-cooled
Breathing Method	Inter-cooling
Bore × Stroke × Cylinder	114×145×6
Rated Power	239 (kw)
Diesel Oil Capacity	27.6(L)
Tank Capacity	400(L)
Voltage	24(L)
Air Compressor
Model	SKY11G165
Compress Grade	2
Compressor Oil Capacity	48
Air Supply Valve Specification × No.	G2×1, G3/4×1
