china drill rig manufacturer! 200m water drilling machine for sale
- ningbo port
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Power Type | Diesel | Place of Origin | Zhejiang, China | |
| Brand Name | KAISHAN | Model Number | KW20 | |
| Usage | Water Well | Voltage | Diesel engine: | |
| Power(W) | 92KW | Dimension(L*W*H) | 5100*2300*2850mm | |
| Weight | 7500kg | Certification | CE,ISO9001,ISO14001,ASME,ENERGY SAVING CERTIFICATE | |
| Warranty | 24 months after sales service | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
1,European design china produce2,CE,ISO9001,ISO14001,ASME,ENERGY SAVING CERTIFICATE
3,20 day delivery time
4,min order:1 set
Detailed specification
china drill rig manufacturer! 200m water drilling machine for sale
KW20 | KW30 | ||
Total weight(Kg) | 7500 | 9500 | |
size(mm) | 5100×2300×2850 | 5200×2300×3200 | |
Travel speed(Km/h) | 0~2.5 | 0~2.5 | |
Diesel Drive type | YC6B125-K10 | YC6B150Z-T21 | |
Drive parameter | 92Kw/2200rpm | 110Kw/2100rpm | |
Ground clearance(mm) | 280 | 280 | |
journey(mm) | 1000 | 460 | |
hammer | DHD360(DHD380) | DHD360(DHD380) | |
Climb slope ability( °) | 25 | 25 | |
Drill depth(m) | 200 | 300 | |
Work wind pressure(MPa) | 1.05-2.46 | 1.05-2.46 | |
Air consumption(m3/min) | 16-30 | 16-40 | |
Drill rod(mm) | φ76,φ89 | Φ89,φ102 | |
Drill rod length(mm) | 3000 | 3000/4000 | |
Drill hole diameter(mm) | φ115-254 | φ168-300 | |
Push journey(mm) | 2400 | 1750 | |
propulsion(N) | 45000 | 50000 | |
Lifting Power(N) | 95000 | 150000 | |
Spindle Rotary Speed(rpm) | slow | 60 | 43/52/69 |
fast | 105 | 85/102/125 | |

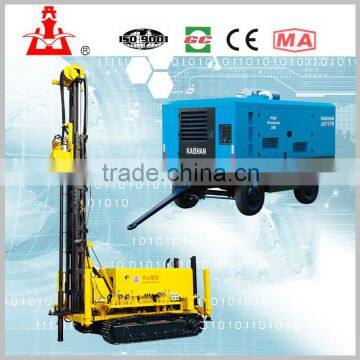

Detailed product picture
Matched diesel engine portable screw air compressor
LGCY-26/20 Diesel Driven portable Screw Air Compressor | ||
Air compressor | ||
Model No: | LGCY-26/20 Kaishan brand | |
Air capacity(m³/min/cfm) | 26(928) | |
Work pressure(Bar/Psig) | 20(290) | |
Fluid capacity(l) | 65 | |
Compression Stage | Double | |
Diesel Engine | ||
Engine Model No. | yuchai YC6M395L-K20 | |
Cylinder bore stroke number of cylinders | 120*145*6 | |
Capacity (L) | 9.839 | |
Rated RPM (r/min) | 1800 | |
Unload RPM(r/min) | 1400 | |
Rated Power (KW/hp) | 288(390) | |
Fuel Capacity(L) | 530 | |
matched Drill rod/ drill bit /hammer
» » cooperation « «
About us:
1. KAISHAN is the only manufacturer in china which is able to mass produce the motor powered and diesel powered portable air compressor, breaking the monopoly of foreign brand in the air compressor.
2. Good adaptability: automatically control the air delivery of diesel engine by matching the demand of air consumption, which equal to frequency conversion control in motor power screw air compressor
3. Operation parameter is straightforward, with multiple warning and shut down protection device
Our Factory produce all kinds of air compressor and rock drill and drill rig, any feedback from you will be highly appreciate.
