Longitudinal Milling Complex Machine Frame TOM-TZ25 Used Frame Machine for Sale

FOB Price

US$ 11,700 - 11,800 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1)Resin sand castings;
2)Ball screw (domestic brands, Taiwan brand, Germany IF) and Taiwan precision locknuts;

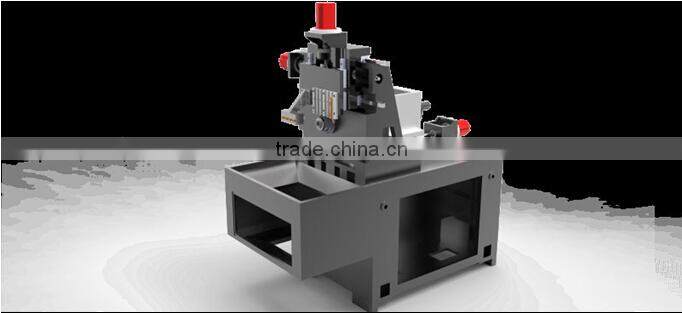

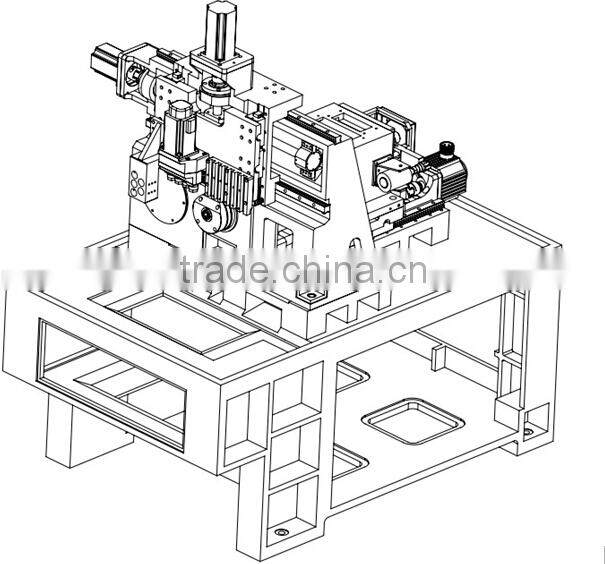

Longitudinal milling complex machine frame TOM-TZ25

	Type Item	TOM-TZ25
Main parameter	Maximum machining bar diameter	Φ25
	Max machining workpieces length	260
	Maximum drilling diameter	Φ10
	Axial maximum tapping threads	M8(copper M10)
	Recommended total power	13.5
Spindle parameter	Spindle speed range	200~8000r/min
	Spindle dividing	1º
	spindle center higth	920
	spindle motor power	3Kw
Feed section parameter	X / Y / Z axis screw specifications	25
	X / Y / Z axis rails Specifications	25
	Recommended X, Y axis motor rated torque	3N.m
Tool holder parameter	External Turning Tool	6 pieces
	External Turning Tool specification	12×12×120
	no rotate hole Processing tool	5 pieces
	Lateral power rotary tool	4 pieces (ER16)
	Recommended driving force milling head Power	0.75Kw
	Recommended driving force milling head Speed Range	50~5000r/min(servo)
Others	Lubrication pump power	40W
	Recommended cooling system motor power	0.4Kw
Overall	Overall size (length* width*higth )	1420×1050×1590
weight	Weight	1500kg
