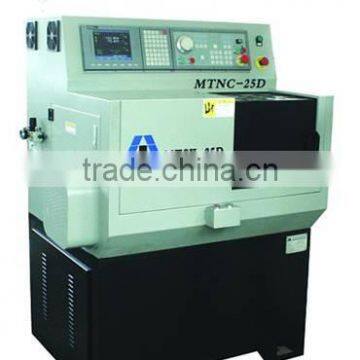

High precison NC0625D CNC lathes for turning and milling

FOB Price

USD $13,700 - $14,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	HNZ
Model Number	NC0625D

Product Description

Specifications

Minimum setting unit 0. 001mm
Controlable tool number 8
Rated Voltage Three phase AC 380V
Rated Frequency 50 Hz
Encoder REP

Product Description

Item	Specification	Parameter
1	Controlled and linkage axis numbers	2 axes (X, Z axis)
2	Maximum length of processing parts	200mm
3	Minimum setting unit	0. 001mm
4	Smallest movement unit	X axis:0.0005mm Z axis :0. 001mm
5	Tool changer placing mode	Row
6	Cutting speed	1~ 6000 mm/min
7	Spindle	A2-3
8	Control System	Taiwan SYNTEC
9	Controlable tool number	8
10	Rated Voltage	Three phase AC 380V
11	Rated Frequency	50 Hz
12	Maximum input power	3 KW
13	X axis Maximum travel	150 mm (Volume diameter 300mm )
14	Z axis Maximum travel	180mm
15	Maximum diameter of processing the bar	25mm
16	X, Z axis rapid feed rate	22000 mm/min,20000mm/min(X,Z axis)
17	Spindle motor power	2.2KW
18	Spindle highest speed	5000rpm
19	Input compressed air pressure	0.4~0.6MPa
20	Control System	Taiwan SYNTEC
21	Servo Motor	Panasonic / Taiwan Delta Servo Motor
22	Guide Rail	Taiwan HIWIN Linear Guides
23	Inverter	INVT
24	Encoder	REP
25	Machine Net Weight(kg)	About 1200

Characteristic:

1 Imported servo motor,small volume,large stroke,high rotating speed,high feeding precision,Taiwan SYNTEC control system,.

2 dual rail structure,achieving the highest 22mm/min fast moving speed and ensure efficient processing.

3 Compared with the conventional automatic lathes or special machine tools, it has high accuracy, easy operation,easy operation,small and the characteristics of various processing function and high quality machining accuracy,and correction adjustment easier

4 suitable fou all types of special-shaped pieces and a variety of slender shaft processing.
