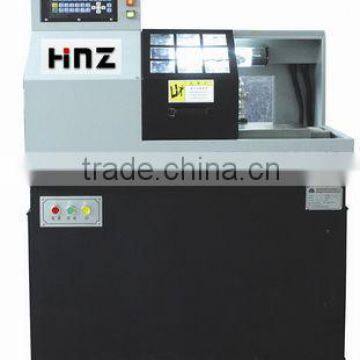

NC0620D Servo CNC lathes for turning and milling

FOB Price

USD $8,900 - $9,500 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	HNZ
Model Number	NC0620D

Product Description

Specifications

Rated Frequency :50 Hz
Maximum input power:3 KW
Spindle motor power 2.2KW
Spindle speed range 50~4000rpm
Encoder REP

Product Description

Item	Specification	Parameter
1	Controlled and linkage axis numbers	2 axes (X, Z axis)
2	Maximum length of processing parts	120mm
3	Minimum setting unit	0. 001mm
4	Smallest movement unit (pulse equivalent)	X axis:0.0005mm Z axis:0. 001mm
5	Max Programming size	+9999.999 mm
6	Cutting speed	1~ 4000 mm/min
7	Processing program capacity	512KB
8	LCD monitors	128 × 64 dot matrix LCD module (Chinese display)
9	Controlable tool number	8
10	Rated voltage	Three phase A.C.380V
11	Rated Frequency	50 Hz
12	Maximum input power	3 KW
13	X axis Maximum travel	110 mm (Volume diameter 220mm )
14	Z axis Maximum travel	190mm
15	Maximum diameter of processing the bar	20mm
16	Servo motor (maximum no load speed)	10000 mm/min(X,Z axis)
17	Spindle motor power	2.2KW
18	Spindle speed range	50~4000rpm/min(RPM)
19	Input compressed air pressure	0.4~0.6MPa
20	Control System	CNC Mingtai Control System
21	Motor	Panasonic servo motor(0.4KW)
22	Screw	X axis 1404×294mm, Z axis 1604×360mm
23	Guide rail	Taiwan HIWIN Linear Guides
23	Inverter	INVT
24	Encoder	REP
25	Machine Net Weight(kg)	About 1000

Characteristic:

1 nvenient operation, high precision machining

2 the operating system simple , reliable performance, and the system can be upgrade and optimization in accordance with customer specific circumstances

3 Encoder control speed

4 threaded processing function and can achieve a clamping multiple parts of processing which can achieve linear, circular arc,taper thread, complex parts processing.

Application:

aerospace,communications,refrigeration,home appliances,electronic,optical,electronic,watches and other industries,the shape of complex single-piece and shaft parts of the mass production.
