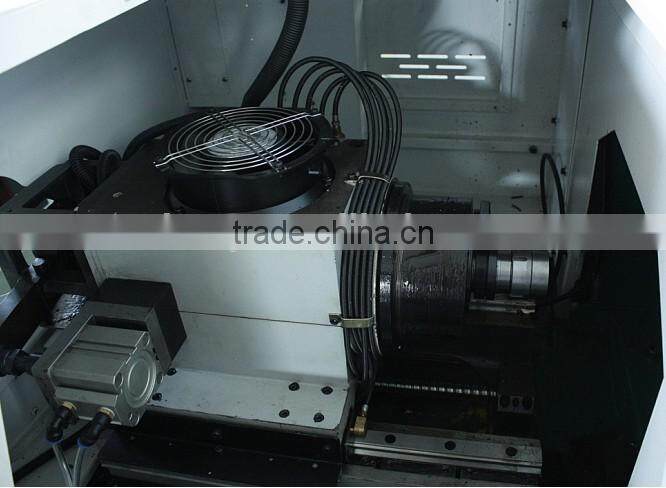

Precision CNC Longitudinal Turning and Milling Machine CNC-20 F Series
- Qingdao
- T/T Credit Card
You May Like
-
NC0625 High Precison CNC Lathes for Turning and Milling
-
FST CNC-20 F Series Precision CNC Longitudinal Turning and Milling Machine
-
High Precison NC0625D CNC Lathes for Turning and Milling
-
High Precison NC0625CNC Lathes for Turning and Milling
-
NC0620D Servo CNC Lathes for Turning and Milling
-
5-axis (X,Y,Z,C,G) Swiss Type Cnc Lathe and Cnc Milling Machine for Watch 20F Type
Product Details
| Place of Origin | Shandong, China | Brand Name | HNZ | |
| Model Number | CNC-20 F |
Product Description
Specifications
Brand:HNZTotal power:6KW
Spindle speed: 200-10000r/min
Spindle rotatable Infinitely variable
Spindle motor power 3KW
Parts | Type Items | CNC-20F |
Main Parameter | Maximum diameter of processing the bar | Φ20 |
Maximum length of processing parts | 170 | |
Maximum drilling diameter | Φ6 / Φ8 | |
Maximum axial tapping screw | M6/CU M8 / M6/CU M10 | |
Total power | 6KW | |
Spindle Parameter | Spindle speed range | 200-10000r/min |
Spindle rotatable | Infinitely variable | |
Height from Spindle center to table | 950mm | |
Spindle motor power | 3KW | |
Feed section Parameter | X-axis screw specifications | 1605 |
Y / Z axis screw specifications | 2010 | |
X / Y axis rails Specifications | 20 | |
Z axis rails Specifications | 25 | |
X(with holding brake),Y,Z axis Servo motor rated torque
| 0.75kw | |
Toolholder Partial Parameters | External Turning Tool | 5 pieces |
External Turning Tool Specifications | 10×10×120 | |
Non-rotating hole processing tool | ER16(4 pieces) | |
Lateral rotary power tool | ER16(4 pieces) | |
Dynamic milling head Power | 0.4KW | |
Dynamic milling head SpeedRange | 50-4000(Servo) | |
Others | Lubrication pump power | 25W |
Cooling system motor power | 0.25KW | |
Size | Machine outer size diameter (length*width*heigth) | 1380×840×1480 |
Weight | Net weight | About 1670 kg |
Characteristic:
1 high efficiency,reasonable structure
2 three axis all adopt linear ball guide,long time using,high precision, driven by Yasukaawa servo motor
3 Taiwan SYNTEC control system ,simple operation,complex shape parts production,such as micro shaft,electronic connectors,optical clocks and various hardware and other small accessories
4 more Cutter number, quick knife change
