Home > Products > RF power amplifier > Jinwen RF Power Amplifier 700-1000MHz, 200 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, Etc

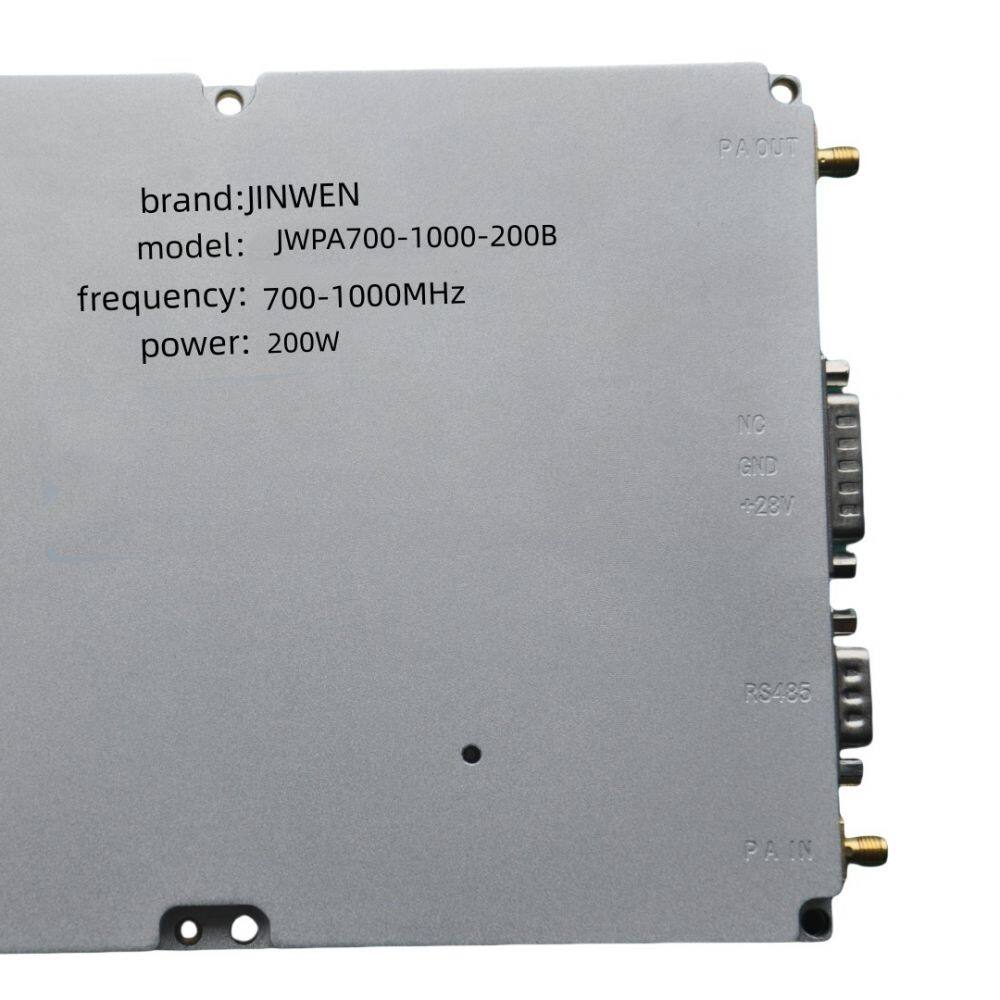

Jinwen RF Power Amplifier 700-1000MHz, 200 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, Etc
US$ 1190
1 - 49 Units
US$ 950
≥50 Units
- shenzhen
- T/T
- 35 days
You May Like
-
Jinwen RF Power Amplifier 1000-1200MHz, 200 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, Etc
-
Jinwen RF Power Amplifier 1200-1400MHz, 200 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, Etc
-
Jinwen RF Power Amplifier 1400-1700MHz, 200 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, Etc
-
Jinwen RF Power Amplifier 1900-2100MHz, 200 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, Etc
-
Jinwen RF Power Amplifier 2100-2300MHz, 200 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, Etc
-
Jinwen RF Power Amplifier 2300-2500MHz, 200 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, Etc
Product Details
| Type | Wireless | Usage | Workstation, Server | |
| Information Content | Voice | Condition | New | |
| Support Network | Ethernet | Trademark | jinwen | |
| Origin | china |
Product Description
Technical specifications of 200W shielded amplifier (with isolator)
serial number | indicator | Indicator requirements
| Remarks |
1 | frequency | ||
The frequency can be customized according to the customer, with an output isolator, and the frequency is limited to 0.4-6GHz | |||
700-1000MHZ | |||
2 | power | 200W | |
3 | voltage | +28V | |
4 | Reference size | Length * Width * Height 200 * 110 * 26mm (Excluding output connectors) | |
5 | output interface
| N-F | |
６ | power supply interface | 7W2 | |
７ | Other functions | Equipped with enablement, built-in sweep frequency source, power indicator light Fault indicator light, power indicator light, over temperature protection | |
8 | 7W2 Pin Definition | A1：GND A2：+28V Pin 1: Power indicator 2 Feet: Enable 3-pin: half power indicator 4-pin: Full power indicator 5 feet: Fault alarm indication | |
9 | mounting hole distance | Length: 96 * 96mm Width: 104mm (M4 screw) |
