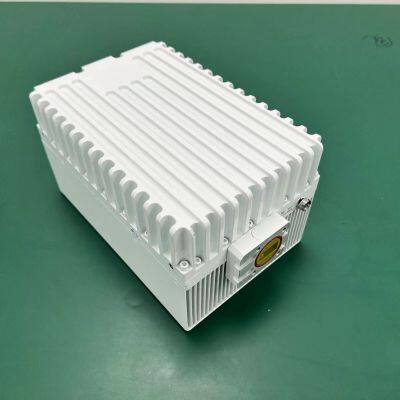

Shenzhen Jinwen Ku-band upconversion RF power amplifier 13.75-14.5G 200W BUC supports customization
USD $35220 - $36700
/ Piece
5 Pieces(Min.Order)
- 0 Piece / Pieces per Month
You May Like
-
Shenzhen Jinwen Beidou GPS one-line antenna JWBLSR45P40A multi-feeder symmetrical structure
-
Shenzhen Jinwen dual-transmitter dual-receiver 40W RF power amplifier TDD1430MHz-(20*2)W
-
Shenzhen Jinwen mini GPS aerial antenna with high gain and good suppression 85X55X32mm supports customization
-
RTK High Precision UAV Antenna 3 Star 7 Frequency Four-Arm Spiral Antenna Waterproof and Anti-jamming 25g Diameter
-
Shenzhen Jinwen JWGPS1840 Active built-in GPS antenna 18*18*4mm
-
RTK High Precision GPS /B1/B2/B3/GLONASS Samsung Octa-Band Measurement Active Antenna
Product Details
| Brand Name | JW | Place of Origin | China | |
| Model Number | JWBUC13.75-14.5G 200W |
Product Description
incoming frequency :950-1700MHz
output frequency :13.75 to 14.50 GHz
output power :Psat 53 dBm
gain:65dB min
local frequency:12.8 GHz
Enter the resident Bobby:2.0 : 1
This vibration phase noise:-75 dBc/Hz @ 1kHz,-85 dBc/Hz @ 10kHz,-95 dBc/Hz @ 100kHz
External reference source:10 MHz
Dimensions (presumably):Length * width * height =300 * 200 * 150mm
weight:≤9.5kg
Operating voltage：+220V AC
