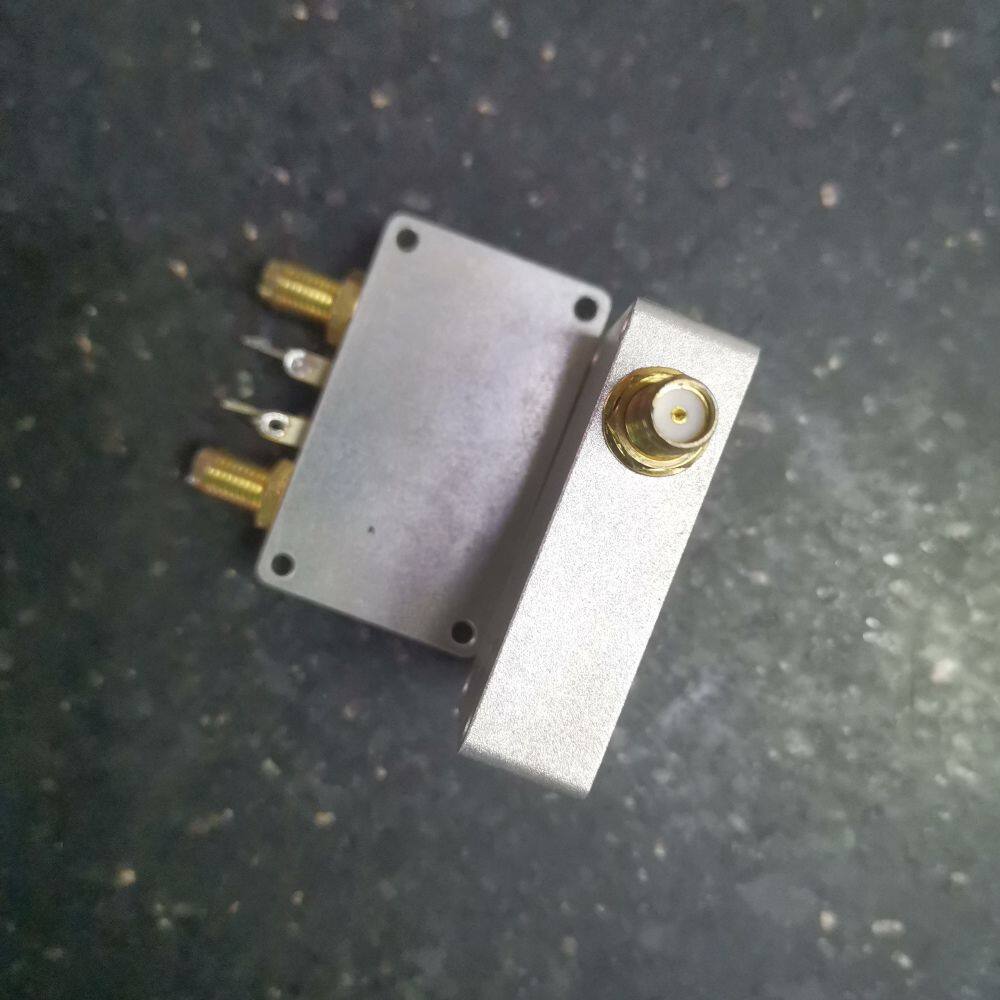

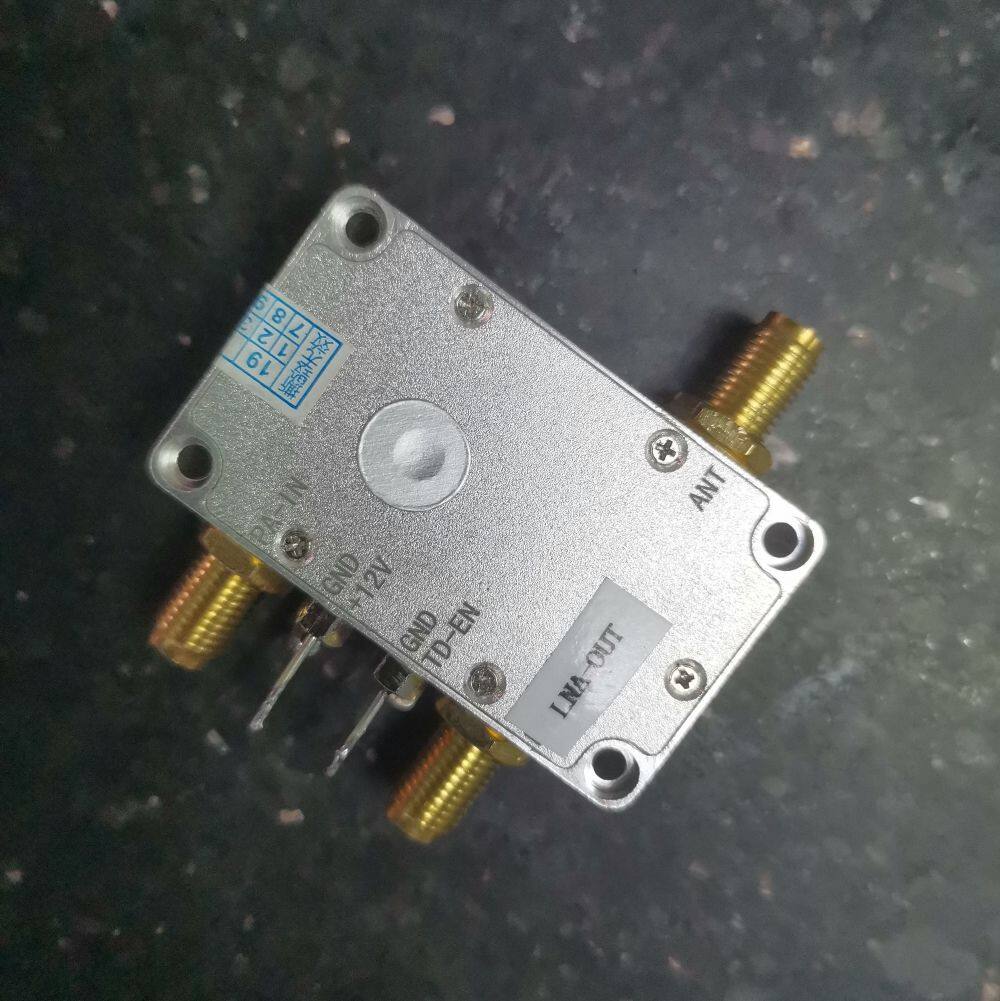

Shenzhen Jinwen 340MHz 2 Watt Transmission Power Amplifier RF Power Amplifier
US$ 200 - 220
/ Piece
10 Pieces(Min. Order)
- shenzhen
- T/T
- 30 days
You May Like
-
Shenzhen Jinwen RF Power Amplifier 4G LTE FDD800MHz Band 5 Electronic Fence Series Power Amplifier
-
Shenzhen Jinwen 27mhz-75mhz 10 Watt Microwave rf Power Amplifier
-
Shenzhen Jinwen Waveguide Tube Low Noise RF Power Amplifier JWLNB01 4.4-5GHz
-
Shenzhen Jinwen Ku-band Upconversion RF Power Amplifier 13.75-14.5G 16 Watt BUC
-
Shenzhen Jinwen Ku-band Upconversion RF Power Amplifier 13.75-14.5G 200W BUC Supports Customization
-
Shenzhen Jinwen Beidou GPS One-line Antenna JWBLSR45P40A Multi-feeder Symmetrical Structure
Product Details
| Trademark | jinwen | Origin | china |
Product Description
Operating frequency: 335-345MHz (300MHz-1800MHz support fixed)
Working bandwidth: 10MHz
Output power: 30±1dBm
gain:40±1dB
In-band fluctuations: ≤3.0dB
Input/output VSWR: ≤1.5
Out-of-band spurs:
9kHz～1GHz：≤-36dBm/30kHz
1GHz～12.75GHz：≤30dBm/30KHz
Operating current:≤1.0A
Operating temperature: -25～+55℃
Storage temperature;-25～+65℃
relative humidity;5%~95%, no condensation
