Wall Reinforcement 3/4" Metal High Rib Lath Galvanized Expanded Metal Lath Manufacturer

FOB Price

US$ 2.00

500 - 999 Pieces

US$ 1.90

1000 - 4999 Pieces

US$ 1.80

≥5000 Pieces

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Warranty	More Than 5 Years	After-sale Service	Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return and Replacement
Weight	1.75Ibs,2.5Ibs,3.4Ibs	Alloy Or Not	Non-Alloy
Secondary Or Not	Non-secondary	Project Solution Capability	graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
Application	Outdoor	Design Style	European
Place of Origin	Hebei, China	Brand Name	LONGEN
Model Number	Metal Lath	Product name	Metal Lath
Weight per Square Yard	1.75Ibs,2.5Ibs,3.4Ibs	Yards/Pallet	500
Packing	Steel pallet packing

Product Description

Specification

Expanded Metal Lath Specifications
Weight per Square Yard (lb/yd2)	Sheet Size	Pieces/Bundle	Yards/Pallet
1.75	27"×96"	10	500
2.5	27"×96"	10	500
3.4	27"×96"	10	500

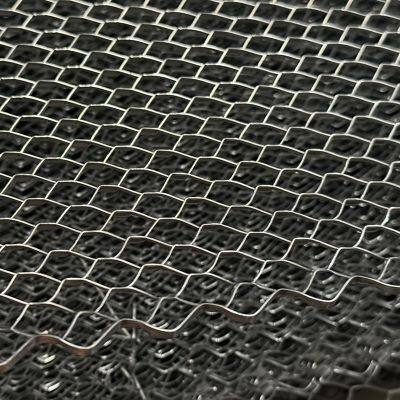

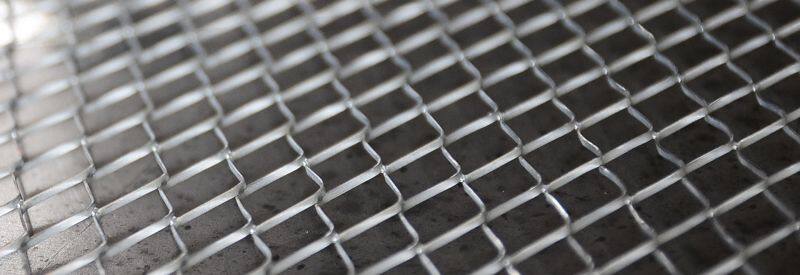

Flat Diamond Metal Lath

Flat diamond metal lath is manufactured by slitting and stretching galvanized steel sheets to form small openings, thereby allowing the plaster keys to be bonded to the lath and offering better crack resistance and higher strength. Each sheet has square ends and smooth parallel edges for fast, easy handling and installation. Flat diamond metal lath is used as plaster base and reinforcement on almost all type of walls, ceilings, over wood or steel framing, flat or curved surfaces. The large number of openings provide better stucco bonding property.

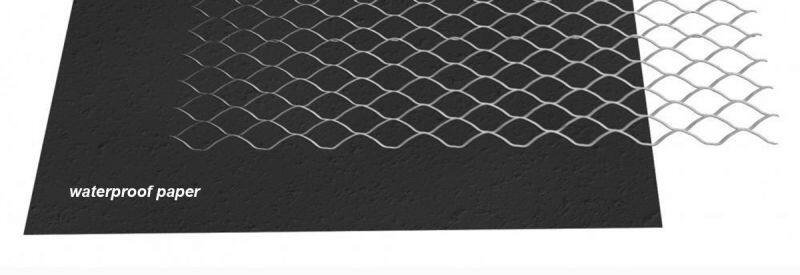

Paper-Backed Lath

Paper-backed lath is a kind of metal lath with asphalt saturated kraft building paper applied on the back to control moisture, air flow and reduce air infiltration, thereby providing improved energy efficiency. It is easy to install and is an ideal choice for serving as a base for stone, ceramic tile and traditional stucco. The paper is waterproof. It provides sheathing protection against moisture during curing and forms a vertical surface behind the exterior wall cladding (stucco, brick, siding, etc.) to allow moisture safely drain out of the wall system.

Self-Furring Dimpled Metal Lath

Self-furred dimpled metal lath is manufactured with evenly spaced indentations that hold the metal lath 1/4" away from the surface to be plastered to allow the plaster or stucco to be embedded more thoroughly into the lath and provide excellent mechanical bonding over the surface to be plastered. Self-furring dimpled metal lath is extensively used in plaster works and serves as plaster reinforcement over interior masonry walls and in steel column fireproofing, or functions as a reinforcement for base coat in ceramic tile works. Self-furring dimpled metal lath is also available with asphalt paper backing.

Self-Furring V-Groove Metal Lath

Self-furring v-groove metal lath is manufactured with 1/4" deep grooves and 5 grooves per sheet. These grooves are spaced 6" on the center along the length of the sheet and allow a thorough embedment into and behind the lath for superior mechanical bonding. Self-furring v-groove metal lath is easily shaped for curved or contoured surfaces. It helps maintain consistent plaster depths and eliminates the need for added furring strips. To maintain the furring characteristics of v grooves, fasteners must be applied within the v-cavity. Self-furring v-groove metal lath is widely used in plastering over surfaces such as concrete, cement board, column fireproofing, masonry surfaces as well as replastering over old surfaces. In addition, self-furring v-groove metal lath is available with asphalt paper backing.

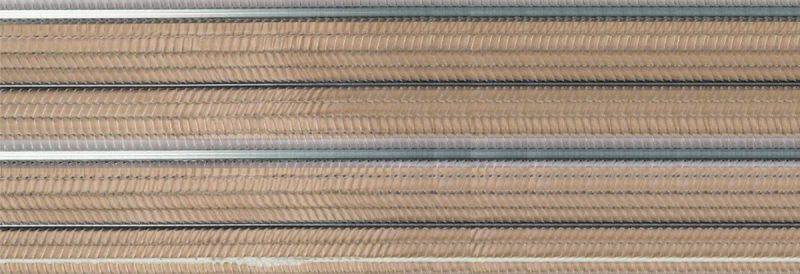

Rib lath without paper

Rib lath without paper has herringbone mesh patterns and 7 longitudinal solid steel ribs with a depth of 3/8" at an interval of 3-7/8" across the sheet.
Rib lath provides a maximum span of 24" on center. It can be used both vertically and horizontally to provide superior strength and exceptional rigidity. It is widely used in ceiling, wall and column plaster works.

Kraft paper-backed rib lath

Compared with rib lath without paper, kraft paper-backed rib lath not only provides superior strength and exceptional rigidity, but also limits the loss of plaster when being applied on open framing.

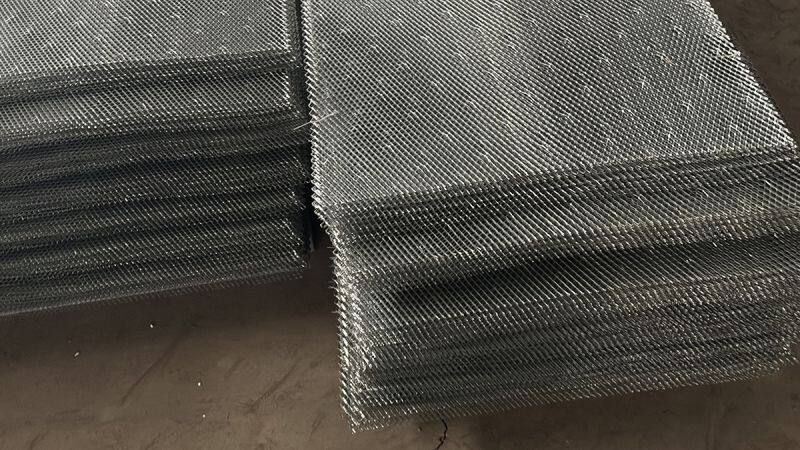

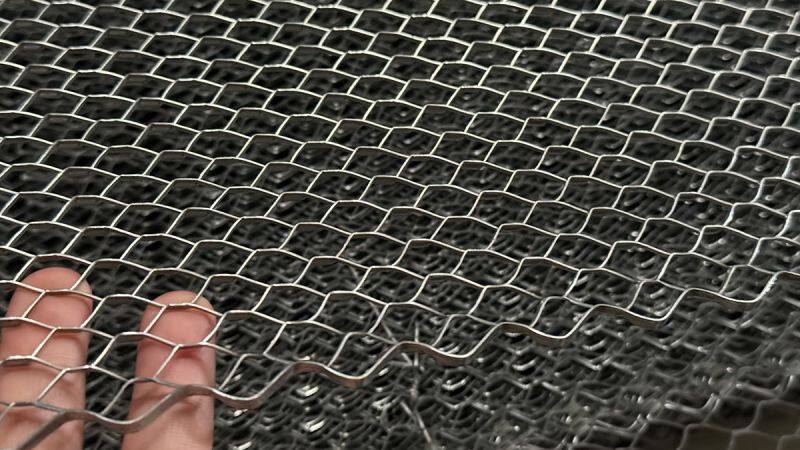

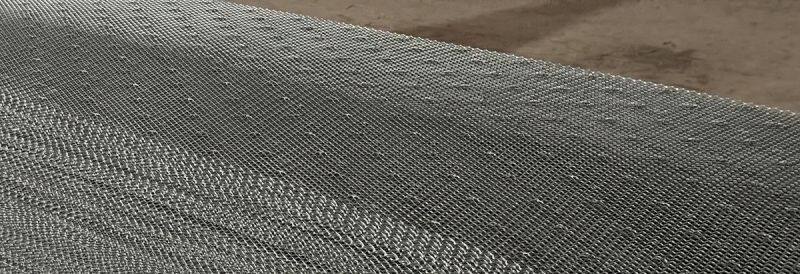

Product Display

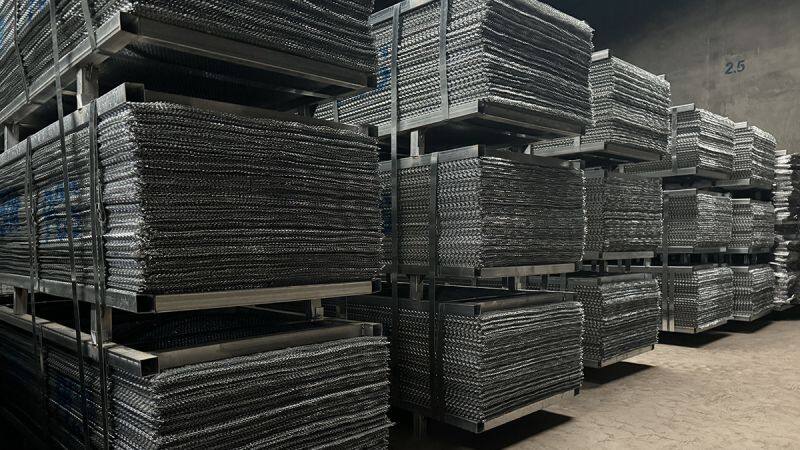

Packing & Delivery

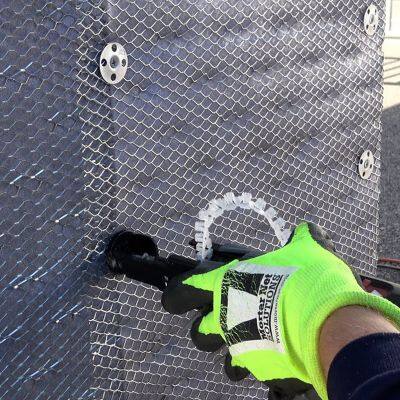

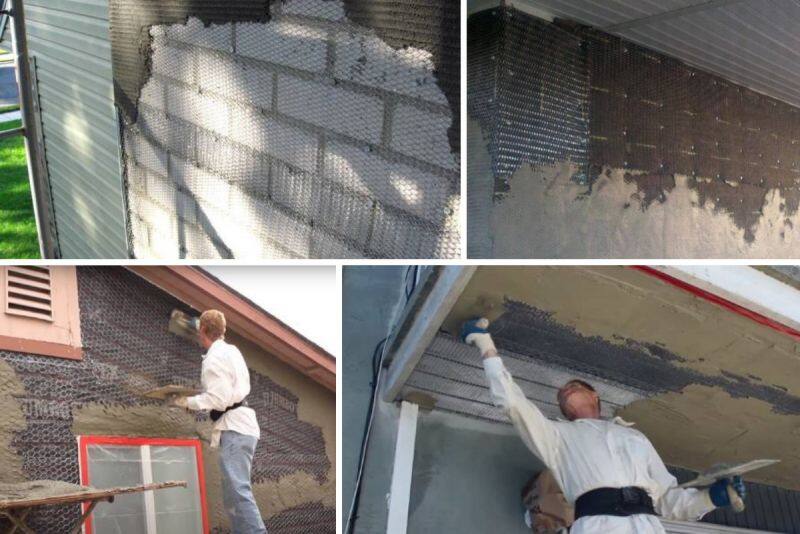

Application

For brick walls

For concrete walls

For ceilings
