3/8 Inch Rib Lath Metal Lath for Stucco
10 - 98 Pieces
99 - 999 Pieces
≥1000 Pieces
You May Like
-
Galvanized Rib Lath 0.3mm X 600mm X 2500mm Modern Carbon Steel Ribbed Metal Lath for Plaster Base Walls Durable Roofing
-
600mm X 2440mm High Rib Lath Factory Standard Ribbed Wire Mesh Stucco Reinforcement Low-Cost Plaster Base for Roofing Wall
-
Modern Hot-Dip Galvanized Ribbed Lath Mesh Durable 3.4 Rib 3/8\" for Stucco Projects Carbon Steel Paper-Backed 3/8\" Ribs Floors
-
304 Stainless Steel Rib Lath Price Colombia V-Ribbed Lath Expanded Mesh for Structural Reinforcement in High-Corrosion Areas
-
Stainless Steel Perforated Plates for Indoor and Outdoor Environments
-
Stainless Steel Perforated Plate for Wall Decoration
Product Details
| Model Number | expanded | |||
| Brand Name | LONGEN | Place of Origin | Hebei, China | |
| Delivery Time | 8-14 days | Processing Service | Punching | |
| Weave Style | Plain Weave | material | Galvanized Steel | |
| Surface Treatment | Galvanized | Size | 27 in. x97 in | |
| Specifications | 1.75ib / 2.5ib / 3.4ib | application | Wall Plaster Building Material | |
| Pieces Per Bundle | 10 | Bundles Per Pallet | 25 | |
| Sq. Yds. Per Bundle | 500 | Storage | Store in a Dry Place Protected From Moisture |
Product Description
Rib Lath With High Strength and Great Plaster Bonding Capacity
Rib lath is manufactured by punching and profiling galvanized steel sheet or stainless steel sheet.
Rib lath, also known as expanded ribbed lath, has V-ribs to offer an increased tensile strength and give a uniform plastering depth over a large coating area. Compared with common metal lath, V ribs provide added support capacity and its unique structure offers better permeability, thereby delivering greater plaster bonding and fixing properties.
It is extensively used in plastering works on walls and suspended ceilings and serves as plaster base for building construction.
Diamond mesh lathis used as a substrate for Portland cement or gypsum plaster on either interior or exterior walls, ceilings,
soffit and fascia surfaces, and can be used under ceramic tile in wall, ceiling and floor applications.It’s useful in all general-purpose applications and is the best lath available for ornamental work and contoured surfaces, as well a spray applied fireproofing.
Rib lath without paper

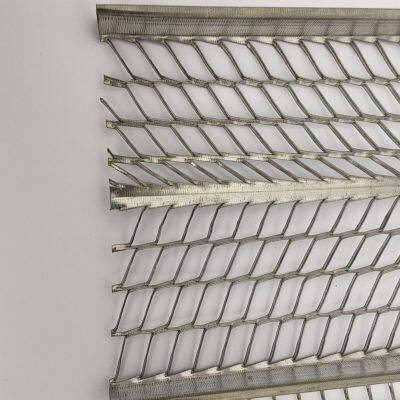

Rib lath without paper has herringbone mesh patterns and 7 longitudinal solid steel ribs with a depth of 3/8" at an interval of 3-7/8" across the sheet.
Rib lath provides a maximum span of 24" on center. It can be used both vertically and horizontally to provide superior strength and exceptional rigidity. It is widely used in ceiling, wall and column plaster works.
3/8″ High Rib Lath has a herringbone mesh pattern with 3/8″ V-shaped ribs running the length of the sheet at 4 ½” intervals and inverted 3/16″ intermediate ribs. The rib is placed against the framing member and does not require a minimum 1″ three-coat system. This lath can be used for stud less no-load-bearing partitions by wire tying lath back to back with ribs running perpendicular to each other.
| Rib Lath Specification Table | ||||
| Type | Code | Rib Depth | Rib Distance | Sheet Size |
| 3/4" High Rib Lath (High Rib Stay Form) | HR | 3/4" | 98 | 27" × 97" |
| HR3 | 19-20 mm | 100mm | 200 mm width | |
| HR4 | 19-20 mm | 100mm | 300 mm width | |
| HR5 | 19-20 mm | 100mm | 400 mm width | |
| HR6 | 19-20 mm | 100mm | 500 mm width | |
| HR7 | 19-20 mm | 100mm | 600 mm width | |
| HR8 | 19-20 mm | 100mm | 700 mm width | |
| 3/8" Middle Rib Lath | MRB5 | 10mm | 150mm | 600 x 2200-2500 mm |
| MRB7 | 10mm | 100mm | 600 x 2200-2500 mm | |
| MRB9 | 10mm | 75mm | 600 x 2200-2500 mm | |
| 1/8" Flat Rib Lath | FRB5 | 4mm | 150mm | 600 x 2200-2500 mm |
| FRB7 | 4mm | 100mm | 600 x 2200-2500 mm | |
| FRB9 | 4mm | 75mm | 600 x 2200-2500 mm | |

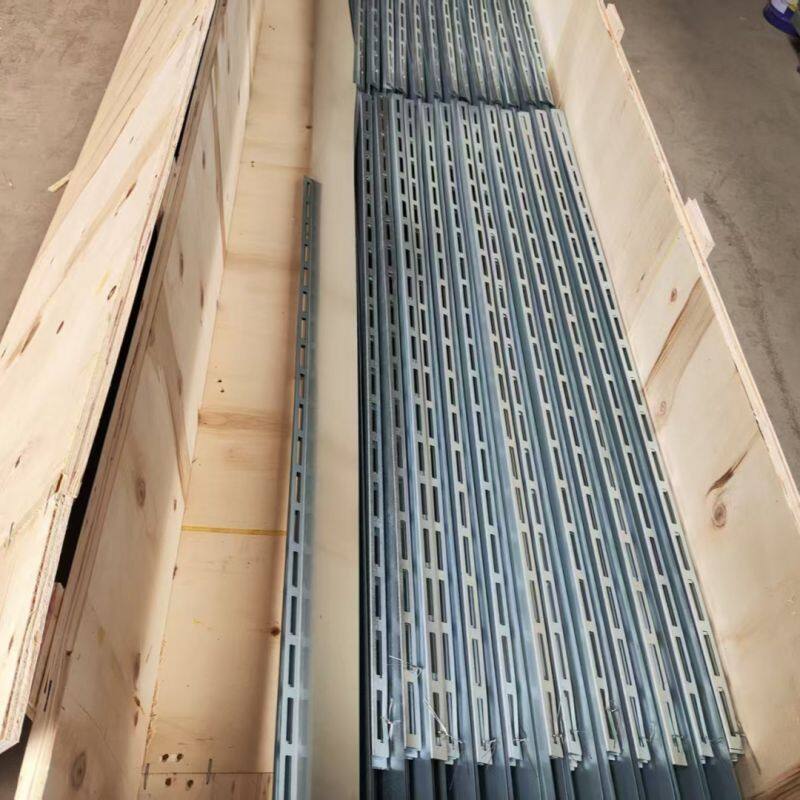

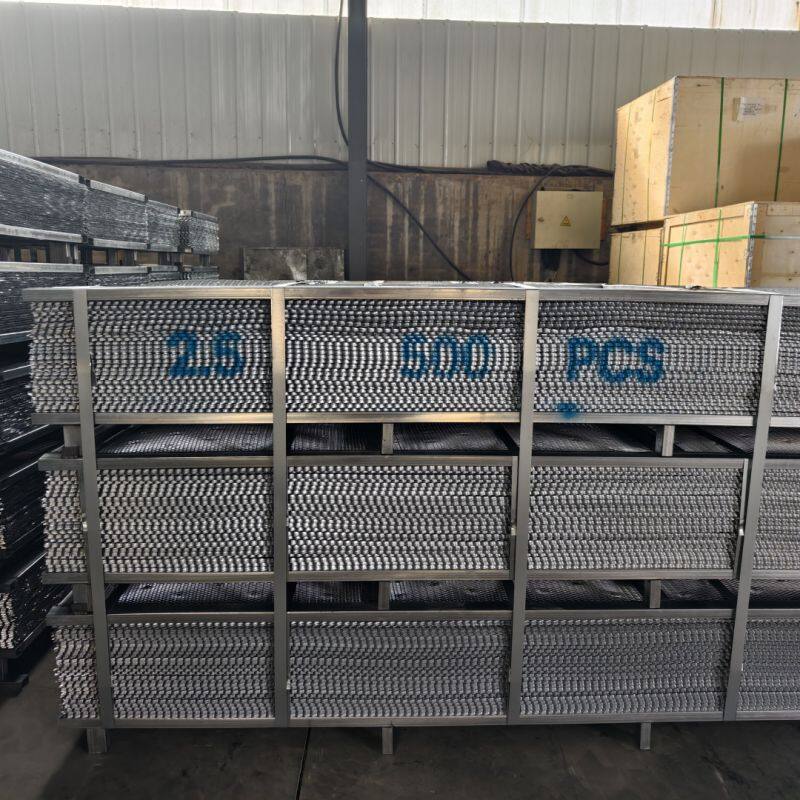

packaging

Company Profile
What can we do for you?
Give us a call or send us an email,
We will be happy to provide you with technical support and service !
Hebei Longen Wire Mesh Products Co., Ltd. Was established in 2015,The company relies on continuous technological innovation and quality improvement to create value for customers. We have established a management system based on ISO 9001 requirements and have become a benchmark enterprise in the industry.
Our excellence in manufacturing, service, and support ensure we offer the best solutions to fulfil the diverse needs of our customers.
You can count on us for quality.
You can count on us for value.
You can count on us for service.
Company Profile
With 20 years of manufacturing and export experience along with excellent quality, advanced services and competitive prices, Longen Wire Mesh Products Co., Ltd. has won numerous customers\' trust and support.We can offer customized solutions for a wide range of stainless steel rope mesh, hand- woven stainless steel rope mesh, Ferrule cable mesh which are widely used in the construction of zoo mesh, animal fences, bird cages, safety fences, green wall, suspend anti-fall mesh, architecture mesh, decorative mesh,Slope Protection,Rockfall Protection System,etc.
