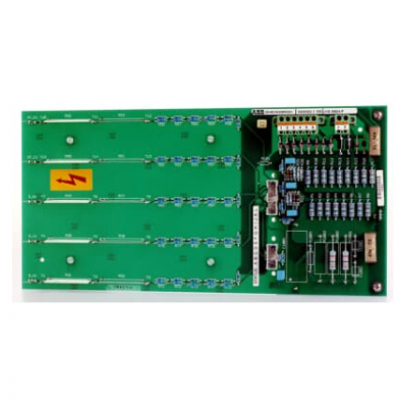

ABB UNS0882A-P,V1 3BHB006309R0001 Power Signal Interface

I. Overview

Compared with single-function safety communication modules or control modules, it focuses more on the "in-depth collaboration between safety and automation":

• Specifically designed for the ABB System 800xA automation platform and SIS systems (such as ABB Advant OCS ESD), it not only has safety-level communication capabilities (supporting multi-protocol safe data transmission) but also has built-in basic logical control functions (capable of executing cross-system linkage logic).

• At the same time, it adopts an industrial-grade wide-temperature and strong anti-interference design, enabling stable operation in harsh industrial environments with high temperatures, high vibrations, and strong electromagnetic interference.

As a core component of ABB's cross-system safety collaboration, it can realize safe data interaction between the SIS system and the automation system (e.g., the SIS issues emergency shutdown commands to automation equipment, and the automation system uploads equipment status to the SIS). It also executes cross-system linkage logic (e.g., "the automation system detects abnormal flow → triggers the SIS system pressure interlock"). It is a key hardware support in the industrial field for "realizing the collaboration between safety and automation and meeting high safety level requirements".

II. Technical Parameters

(I) Communication Performance Parameters

(II) Control and Calculation Parameters

(III) Safety and Redundancy Parameters

(IV) Environmental and Physical Parameters

(V) Power Supply and Interface Parameters

III. Functional Features

(I) Collaborative Communication between Safety and Automation, Ensuring Reliable Cross-System Data Interaction

• Dual-domain independent communication architecture: The 4 communication channels are divided into a "safety domain" (2 channels) and an "automation domain" (2 channels). The safety domain is dedicated to data transmission between the SIS and safety equipment (such as emergency stop buttons and safety valves), while the automation domain is used for data interaction between the automation system (such as DCS) and production equipment (such as frequency converters and flow meters). The two domains are physically isolated to prevent automation data from interfering with the transmission of safety signals (e.g., emergency shutdown commands are transmitted with priority and not affected by automation data traffic).

• SIL 3 safety-compliant transmission: The safety domain communication adopts a "2-out-of-3" (2oo3) data verification mechanism. Communication data undergoes CRC cyclic redundancy check, message encryption (AES-128 algorithm), and timestamp synchronization to prevent data tampering, loss, or delay. The automation domain supports data priority classification, where production-critical parameters (such as reactor temperature) have higher priority than ordinary monitoring data, ensuring the security and timeliness of cross-system data interaction.

(II) Integrated Control and Linkage Logic, Realizing Cross-System Collaborative Control

• Cross-system logical linkage: The built-in logical control unit can write "safety-automation" linkage logic. For example, in the control of a petrochemical reactor, when the automation system (DCS) detects "continuous over-limit of feed flow (>120% of the set value)" (signal collected by the DI channel), the module can directly trigger the "pressure interlock pre-alarm" of the SIS (signal output by the DO channel), and at the same time issue the command "reduce the opening of the feed valve" to the SIS through safety domain communication. This realizes the collaborative response of automation early warning and safety interlock without relying on a third-party controller, shortening the response time (≤50ms).

• Dual local and remote control: The module is equipped with 8 DI, 4 DO, 2 AI, and 1 AO control interfaces, enabling local control of small equipment (such as starting/stopping on-site valves and pumps) and status collection. At the same time, it receives control commands from remote systems (SIS/DCS) through communication interfaces, forming a dual-mode of "local independent control - remote collaborative control". For example, in case of workshop power failure, the module can maintain the basic control of key equipment (such as safety valves) through local logic, and automatically synchronize remote system parameters after power recovery to avoid production interruption.

(III) Full-Dimensional Redundancy and Fault Tolerance, Improving System Reliability

• Four-level redundancy guarantee: The four-level redundancy design includes communication channels (4 channels redundant in pairs), power supply (dual input), core hardware (dual redundancy of chips), and data storage (dual Flash backup). When any link fails, the redundant unit can take over seamlessly within ≤5ms to ensure uninterrupted system operation. For example, if the main communication chip fails, the backup chip starts immediately without losing communication data, avoiding safety risks caused by cross-system communication interruption.

• Intelligent fault diagnosis and self-healing: The module has intelligent fault diagnosis capabilities at the channel, hardware, and software levels, which can automatically detect faults such as communication disconnection, chip failure, and logical calculation errors. It handles faults through a four-step self-healing process of "fault location - redundancy switching - alarm feedback - log recording". For example, when the PROFIBUS main channel is short-circuited, the module automatically switches to the backup channel, displays the fault location (e.g., "PROFIBUS Channel 1 Short Circuit") through the HMI, and records the fault time and recovery time, allowing maintenance personnel to troubleshoot without shutting down the system.

(IV) Wide Environmental Adaptability and Strong Anti-Interference, Suitable for Harsh Industrial Scenarios

• Extreme environment resistance: The operating temperature range of -25℃-65℃ covers unheated workshops in northern winters (-20℃) and high-temperature workshops in southern summers (60℃). It also has anti-salt spray and anti-dust designs (terminal blocks adopt gold-plated anti-oxidation treatment, with an enclosure protection level of IP20, which can reach IP54 when installed in a control cabinet), enabling stable operation in extreme environments such as offshore platforms and desert oilfields. The 5g vibration resistance adapts to the vibration scenarios of large equipment (such as steam turbines), ensuring no hardware loosening or communication interruption.

• Complex electromagnetic interference resistance: It adopts a four-level anti-interference design of "metal shielded enclosure + power EMI filter + signal differential transmission + grounding isolation", which can resist interference generated by strong electromagnetic equipment such as frequency converters, welding machines, and high-voltage motors. In a metallurgical workshop (with multiple frequency converters), the communication data error rate is ≤10??, and the control signal output fluctuation is ≤±0.1%, which is far better than industrial-grade standard requirements.

(V) Usability and Flexible Expansion, Lowering Application Thresholds

• Integrated programming and configuration: Compatible with ABB Control Builder M software, it can complete communication protocol configuration (such as PROFIBUS parameter setting, OPC UA node mapping) and control logic writing (such as cross-system linkage FBD programs) in the same environment. The software has built-in "safety-automation collaboration templates" (such as reactor safety interlock and unit emergency shutdown templates), allowing engineers to complete basic configuration within 30 minutes without cross-platform operations.

• Multi-scenario deployment and expansion: It supports rack mounting (integrated into the System 800xA system) and DIN rail independent mounting (independent control of small workshops), with flexible switching between the two installation methods. The control interfaces (DI/DO/AI/AO) support software configuration (e.g., DI can be set to "normally open/normally closed", AI can switch between "4-20mA/RTD"). In the later stage, the number of channels can be increased through expansion modules (up to 32 DI and 16 DO), adapting to industrial scenarios of different scales.

(VI) Data Traceability and Remote Operation & Maintenance, Improving Management Efficiency

• Full-lifecycle data recording: The 256MB Flash memory can store 500,000 process data records (including safety commands, automation parameters, and equipment status) and 1,000 fault records, with data retention ≥10 years. It supports query by time and event type (e.g., "safety shutdown", "communication fault"), meeting the industry's compliance traceability needs (such as safety event traceability in the nuclear power industry and production quality traceability in the chemical industry).

• Remote monitoring and operation & maintenance: It supports connection to industrial cloud platforms (such as ABB Ability?) via the OPC UA protocol. Maintenance personnel can remotely view the module's operating status (such as communication channel load rate, power supply voltage), modify control parameters (such as PID values), and upgrade firmware. For remote sites (such as mountain hydropower stations), wireless remote operation & maintenance can be realized through optional 4G/5G modules, shortening the fault handling time (from 8 hours to 1 hour) and reducing operation & maintenance costs.
