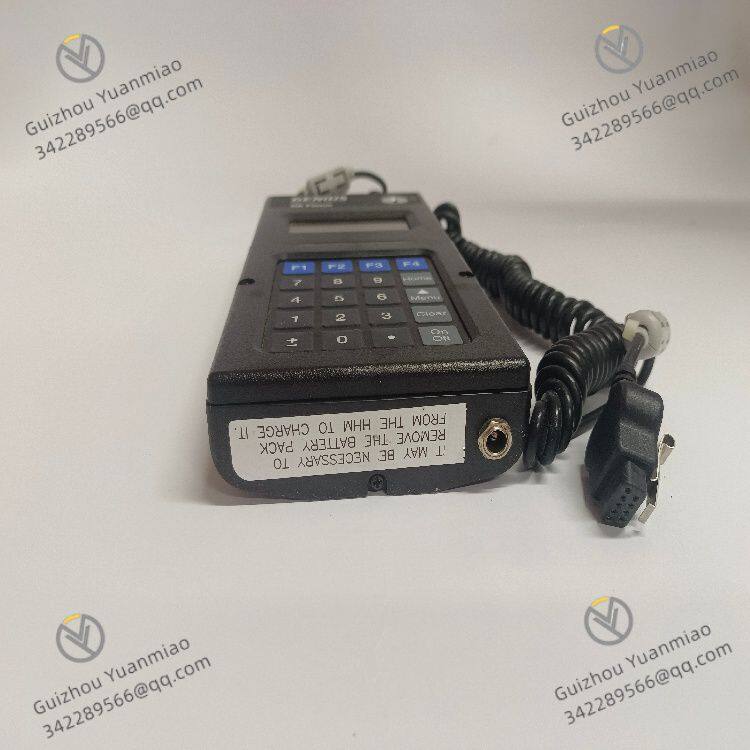

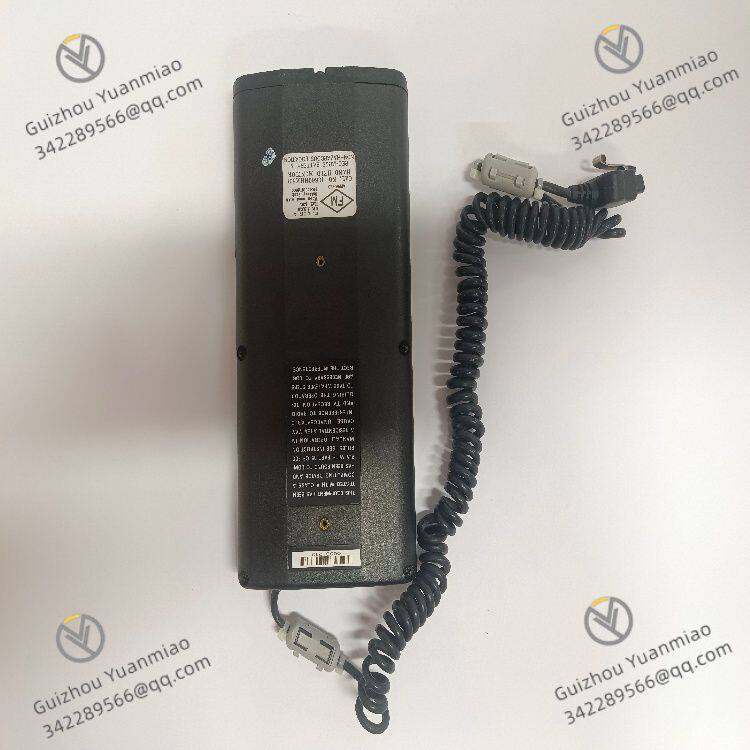

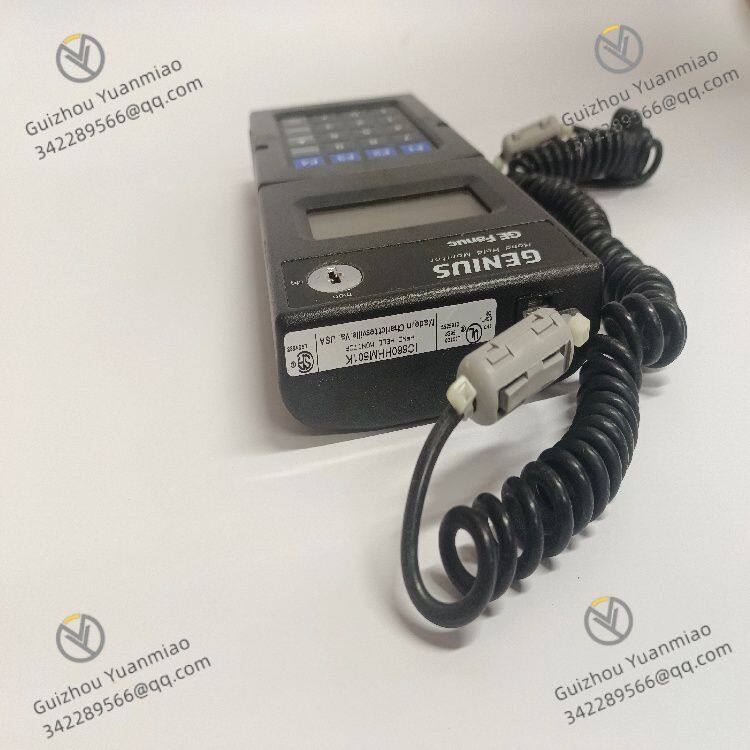

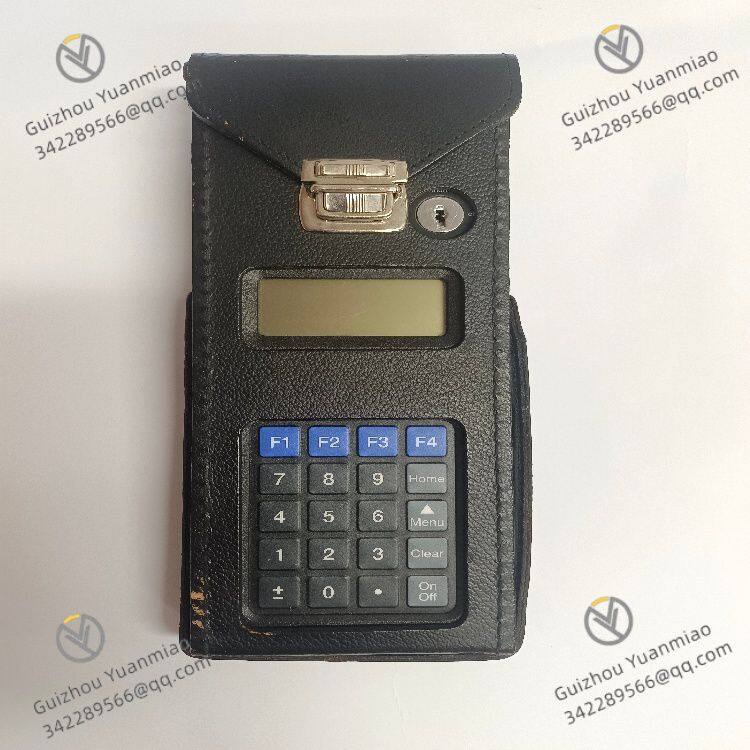

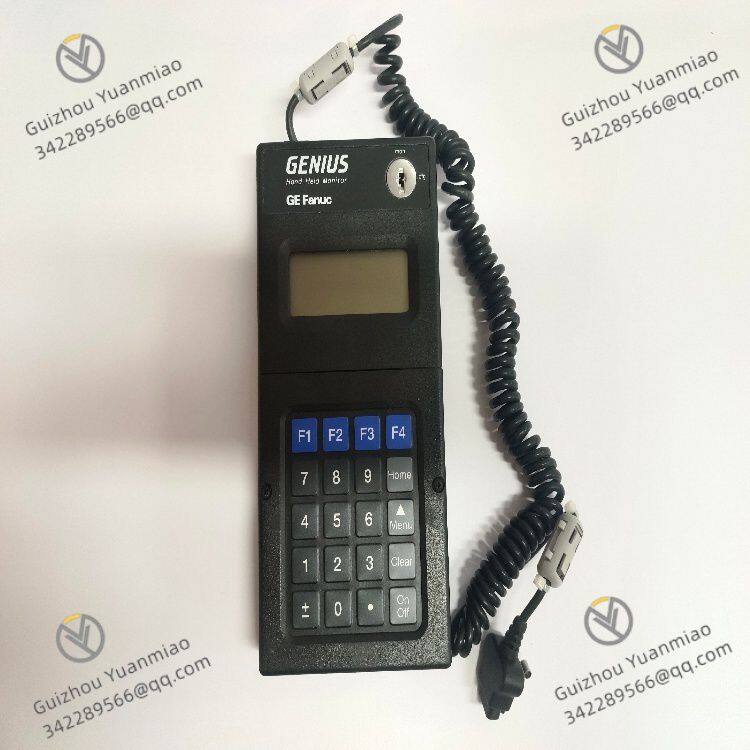

GE IC660HHM501 Hand-Held Monitor

I. Overview

The GE IC660HHM501 is a high-performance Human-Machine Interface (HMI) module, with its core positioning as a "local operation and data interaction unit for industrial control systems". Its core value lies in building a visual interaction bridge between "operators - control systems - on-site equipment" through an intuitive operation interface and stable communication capabilities. It provides an integrated local operation solution for "parameter setting, status monitoring, fault diagnosis, and operation recording" in automation systems (such as PLC control systems) in fields like discrete manufacturing and process control.

Compared with general-purpose industrial touchscreens, it focuses more on "deep compatibility with GE Fanuc systems" — specifically designed for the GE 90-30 PLC series, it can seamlessly connect to controllers, I/O modules, and third-party compatible equipment within the system without complex protocol conversion configurations. Meanwhile, it features industrial-grade protection and anti-interference capabilities, enabling stable operation in harsh factory workshop environments with dust, electromagnetic interference, and temperature fluctuations. As a core operation component of the GE 90-30 PLC system, it can display real-time operating parameters of on-site equipment (such as motor speed, valve opening, temperature, and pressure), support manual input of control commands by operators (such as starting/stopping equipment and modifying set values), and record operation logs and fault information. It is a key human-machine interaction device for "improving operation efficiency and ensuring system controllability" in industrial production.

II. Technical Parameters

(I) Display and Operation Parameters

(II) Communication and Connection Parameters

(III) Environmental and Power Supply Parameters

(IV) Function Configuration Parameters

III. Functional Features

(I) Deep Compatibility with GE Systems, Simplifying Integration Processes

• Native Adaptation to GE 90-30 PLC: No additional drivers or protocol converters need to be installed. Once the module is inserted into the rack, it can establish communication with the controller, automatically identifying I/O modules and parameter addresses within the system. This reduces integration and debugging time (routine configuration can be completed within 1 hour).

• Unified Configuration Environment: Relying on the CIMPLICITY Machine Edition software, integrated development of "PLC program writing - HMI configuration - data linkage testing" can be achieved, avoiding parameter mismatch issues across software platforms. For example, the "motor temperature" register (e.g., %AI001) in the PLC can be directly associated with the HMI display page to ensure real-time data synchronization.

(II) Industrial-Grade Operation Experience, Adapting to On-Site Requirements

• High-Reliability Operation Design: The membrane keys are made of oil-resistant and wear-resistant materials, allowing operation by workshop personnel wearing gloves (e.g., workers in mechanical processing workshops wearing anti-slip gloves). The key feedback is clear, with a misoperation rate ≤0.1%. The 5.7-inch LCD screen adopts a wide viewing angle design (horizontal viewing angle ≥120°), enabling multiple operators to view on-screen parameters simultaneously (e.g., multiple workers monitoring collaboratively beside an assembly line).

• Layered Display and Shortcut Operations: Supports layered navigation of "Main Page - Parameter Page - Fault Page", with quick page switching via shortcut keys (e.g., "Page Up/Down"). Common operations (such as equipment start/stop and emergency shutdown) can be assigned to independent keys, eliminating the need for multi-level menu navigation and shortening the operation response time (emergency shutdown command triggering time ≤1s).

(III) Comprehensive Monitoring and Diagnosis, Ensuring System Controllability

• Real-Time Status Visualization: Can dynamically display equipment operating status (e.g., a green icon for "running" motors and a red icon for "faulty" motors) and trends of key parameters (e.g., a 1-hour temperature change curve displayed via screen scrolling). Operators can grasp equipment working conditions without checking on-site instruments.

• Fault Tracing and Early Warning: When the PLC detects equipment abnormalities (such as temperature exceeding the threshold or pressure overload), the HMI immediately pops up a fault window (displaying the fault cause and handling suggestions) and automatically records fault information. It supports fault early warning (e.g., when the temperature is close to the threshold, the on-screen parameter is displayed with a yellow reminder) to avoid shutdown risks in advance.

(IV) High Stability and Safety, Adapting to Harsh Environments

• Strong Anti-Interference and Protection: The IP65 panel protection can resist workshop dust and splashing water (e.g., cleaning water in food processing workshops, cooling fluid in mechanical workshops). The EMC design ensures stable operation near high-electromagnetic equipment such as frequency converters and welding machines, with a data transmission error rate ≤10??.

• Operation Safety Control: Supports password-based hierarchical permissions (e.g., "Operator" permission only allows viewing and starting/stopping equipment, while "Administrator" permission allows modifying parameters and deleting logs), preventing unauthorized personnel from mistakenly modifying key parameters (such as randomly adjusting the set temperature of a reaction kettle). The emergency shutdown key (a red independent key) features hardware-level priority triggering, enabling emergency protection even if system communication is interrupted.

IV. Application Fields

(I) Discrete Manufacturing Industry: Machine Tool Automation Control

Application Scenario

Module Function Implementation

• Status Visualization: The HMI main page displays the spindle speed (bound to PLC register %AI002), feed rate (%AI003), and tool temperature (%AI004) using a combination of numerical values and progress bars (e.g., the progress bar is full when the temperature reaches 80℃). A red fault icon is displayed when the tool malfunctions.

• Operation Control: The "F1" key is set as "Spindle Start", the "F2" key as "Spindle Stop", and the "F3-F4" keys as "Feed Rate +/-". Operators can directly control the equipment via the keys without operating a PLC programmer. The parameter modification page (requiring an administrator password) allows adjusting the spindle speed set value (%AQ001), with the range limited to 500-3000rpm to prevent over-range operations.

• Fault Handling: When the tool temperature exceeds 80℃, the PLC sends a fault signal to the HMI, which pops up a "E05 - Tool Overheating" window displaying "It is recommended to stop the machine and check for tool wear", while recording the fault time and the spindle speed at that time. In emergency situations, pressing the red emergency shutdown key directly cuts off the spindle power supply to avoid tool damage.

(II) Process Control Industry: Water Treatment System MonitoringApplication Scenario

Module Function Implementation

• Parameter Monitoring: A "Water Quality Monitoring" page is created to display raw water turbidity (%AI010), pH value (%AI011), and effluent flow rate (%AI012). A yellow warning is displayed when the pH value is

• Process Control: A "Auto/Manual" switch key for the dosing pump (bound to PLC coil %M001) is set on the "Control Page". In manual mode, the dosing pump frequency (%AQ005) can be adjusted via the "Dosing +/-" keys. The backwashing procedure can be triggered via the "F5" key (requiring operation confirmation to prevent false triggering), and the HMI displays the backwashing progress (e.g., "Backwashing in progress - 5 minutes remaining").

• Data Recording: The HMI automatically stores the daily (00:00-24:00) maximum effluent flow rate (%AR020) and average turbidity (%AR021). It supports connecting to a data recorder via the RS-232 interface to export data once a week for water quality compliance testing. The operation log records the time and actions of operators when starting/stopping the dosing pump and adjusting valves, facilitating responsibility tracing.
