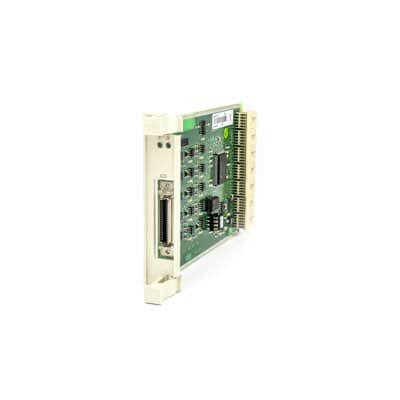

ABB CI540 3BSE001077R1 S100 I/O Bus Extension

I. Overview

The ABB CI540 3BSE001077R1 is a multi-protocol interface module, with its core positioning as a "flexible data interaction bridge between ABB AC 800M controllers and serial bus devices". Its core value lies in establishing a serial data transmission network of "AC 800M Controller - Serial Intelligent Meters - Third-party PLCs - Remote Monitoring Terminals" through a dual-interface design (RS-232/RS-485), multi-serial protocol compatibility, and optional industrial-grade intrinsic safety features. It provides an integrated solution of "multi-protocol conversion + flexible interface expansion + stable data transmission" for industries such as petrochemicals, metallurgy, and water treatment that still rely on serial communication (e.g., Modbus RTU) and require compatibility with multiple devices. This addresses the core pain points in industrial systems, including poor compatibility of serial devices, limited communication distance, and unstable data transmission.

• It supports mainstream serial protocols such as Modbus RTU, DF1, and ASCII. The protocol type can be quickly switched through software configuration to adapt to serial devices of different brands (e.g., flowmeters, frequency converters, intelligent sensors).

• Specifically designed for the AC 800M controller, it can be seamlessly inserted into the controller rack and realize data interaction through the internal bus, without the need for additional wiring or adaptation software.

Whether for distributed meter data acquisition in chemical workshops or remote PLC communication in metallurgical plants, its flexible expandability and stable transmission capability ensure efficient and reliable serial data transmission.

II. Technical Specifications

(I) Communication Performance Specifications

(II) Safety and Reliability Specifications

(III) Environmental and Physical Specifications

III. Functional Features

(I) Flexible Multi-protocol Adaptation for Compatibility with Multi-brand Serial Devices

• Seamless Cross-protocol Switching: Supports multi-protocols including Modbus RTU, DF1, and ASCII. The protocol type can be switched with one click via Control Builder M software without hardware replacement. In a water treatment plant, the RS-485 interface of the CI545 can connect to domestic flowmeters (for flow data acquisition) via the Modbus RTU protocol, and the RS-232 interface can connect to Rockwell MicroLogix PLCs (for control command transmission) via the DF1 protocol. No additional protocol conversion modules are required, enabling unified communication of multi-brand devices.
• Custom Protocol Expansion: Supports custom frame formats for the ASCII protocol (configurable start character, data length, and parity method), adapting to non-standard serial devices (e.g., old intelligent meters). For example, an old temperature recorder in a metallurgical plant only supports custom ASCII frames (start character "$", data length 16 bytes). Through the ASCII protocol configuration of the CI545, its temperature data can be directly collected and uploaded to the AC 800M, avoiding the high cost of device replacement.

(II) Independent Operation of Dual Interfaces to Expand Communication Scenarios

• Differentiated Interface Configuration: The RS-232 interface is suitable for short-distance, full-duplex communication (e.g., connecting to the programming port of a local PLC), while the RS-485 interface is suitable for long-distance, multi-node communication (e.g., connecting to 16 frequency converters 1200m away). The dual interfaces can operate independently with non-interfering protocols. In a petrochemical tank farm, the RS-232 interface connects to the local PLC of the tank farm (for valve control), and the RS-485 interface connects to 8 level gauges 1000m away (for level data acquisition), realizing integrated "local control + remote data acquisition".
• RS-485 Multi-node Expansion: The RS-485 interface supports cascading of up to 32 slave devices (in half-duplex mode), which can be expanded to 128 nodes with repeaters, adapting to large-scale distributed serial device scenarios. In a photovoltaic power station, the RS-485 interface of the CI545 cascades 3 repeaters to connect 50 photovoltaic inverters (distributed within 5km), collecting the output power data of each inverter with a data refresh cycle of 1s, meeting the centralized monitoring needs of the power station.

(III) Industrial-grade Stable Design for Adaptation to Harsh Environments

• Wide Temperature Range and Strong Anti-interference: The wide temperature range of -25℃ to +60℃ covers outdoor control cabinets in northern winters (e.g., substations) and high-temperature workshops in southern summers (e.g., plastic molding workshops); the 2500Vrms interface electrical isolation and ±8kV ESD anti-interference capability can resist electromagnetic interference from motors and frequency converters in industrial sites, ensuring a serial data transmission bit error rate ≤10?? (e.g., no fluctuation in pressure sensor data of chemical reactors).
• Optional Intrinsic Safety: Optional ATEX intrinsic safety certification is available, suitable for hazardous areas (Zone 1/2) in petrochemical industries, preventing safety accidents caused by sparks generated during serial communication. In the hydrogenation workshop of an oil refinery (ATEX II 1G area), the intrinsically safe CI545 can be directly connected to on-site combustible gas detectors to collect concentration data and upload it to the AC 800M, ensuring communication safety in hazardous areas.

(IV) In-depth AC 800M Integration to Simplify System Architecture

• Seamless System Connection: It can be directly inserted into the AC 800M controller rack and communicate with the controller via the internal bus, without additional wiring; it is compatible with Control Builder M configuration software, enabling interface parameter configuration (e.g., rate, protocol), data variable mapping (e.g., mapping Modbus register addresses to AC 800M input variables), and online debugging in the same environment, improving configuration efficiency by 40%. For example, a power plant can complete the Modbus RTU communication configuration between the CI545 and 10 frequency converters in only 20 minutes via Control Builder M.
• System 800xA Linkage: Supports real-time data interaction with the ABB System 800xA platform, enabling the upload of operating status of serial devices (e.g., slave offline, communication rate) and module fault information (e.g., interface short circuit) to the 800xA HMI. Maintenance personnel can remotely monitor the communication status via the visual interface (e.g., "RS-485 Slave 3 Offline" alarm) without on-site troubleshooting, reducing fault handling time to 30 minutes.

(V) User-friendly Maintenance and Diagnosis to Reduce Operating Costs

• Local and Remote Debugging: Supports remote modification of interface parameters (e.g., rate, protocol) and export of fault logs (including fault time, cause, and affected devices) via the AC 800M controller; the module has a built-in serial debugging tool (e.g., sending test frames, receiving data monitoring), and serial data frames (e.g., Modbus RTU request frames and response frames) can be viewed in real time via Control Builder M software, enabling quick location of communication faults (e.g., parity error, frame format error).
• Visual Status Feedback: The panel indicators clearly distinguish the status of the power supply and RS-232/RS-485 interfaces. A yellow light on the RS-485 interface indicates communication abnormality (e.g., disconnection), and a red light indicates interface fault (e.g., short circuit). Maintenance personnel can locate the fault type within 10 minutes via the indicators, avoiding the tedious process of point-by-point troubleshooting (e.g., a workshop quickly detected an RS-485 bus short circuit via the indicators, reducing fault Investigation time from 2 hours to 15 minutes).

IV. Application Scenarios

Petrochemical Industry: Tank Farm Level and Pressure Data Acquisition

Water Treatment: Distributed Water Pump Frequency Converter Control

Metallurgical Industry: Old Meter Data Integration

Photovoltaic Power Station: Centralized Monitoring of Inverter Data
