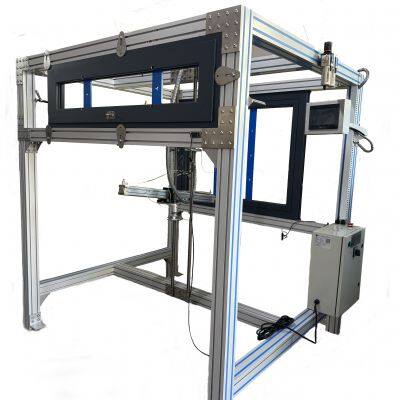

Friction stay hinge durability test machine

Test equipment function：

   The equipment is used for perform function and durability test of friction stay hinges. The equipment includes two test stations for top hung and side hung windows. The frame width for top hung window and frame height for side hung window are adjustable. Adjust theprofilepositon according to the width of test window, fix the test window on the equipment frame, perform opening and closing cycle test by servo motor driven linear actuator.The movement range can be set via HMI.

Specification:

a)   Frame：8080 aluminum profile；Two test stations.

b)  Test windows: Not provided. It shall be prepared by user according to friction stay hinges

c)   Equipment Size：L1.6m x W1.4 m x H2.1m；

d)   Operation space：1.6m x 3.5 m x 2.1m；

e)   Maximum Windows size： 1.4m x 1.4m；

f)   Window opening angle：0~90°±5°(adjustable)

g)   Hinge test function: air cylinder with adjustable opening angle

h)   Windows handle and lock operation: servo motor

i)   HMI：7”touch screen,

j)   Test standards：EN 13126-6:2018；

Application parameter:

a)   Electrical Power (in kw): 1 kw

b)   Operation voltage: 220VAC

c)   Compressed Air pressure:Min 0.6Mpa Clear dry compressed air

d)   Dryer required?:Yes

e)   Total Area of equipment(s):1.3x0.9x2.5m

f)   Total Area required for full setup (incl. access spaces):2.5 x 3.5 x H2.6m

g)   Total Weight of the setup (in kg):400kg

h)   Static Load in kg: 400kg

i)   Dynamic Load in kg: 440kg

j)   Floor loading (in kg/sq. m.):350kg/sqm

k)   Noise level (in dB) :65dB

l)   Vibration level (in m/s2):5m/s2

m)   Operating Humidity (%rH):<70%RH

n)   Operating Temperature (in C) :15~30C

o)   Earthing requirement  (in ohms) :4 ohms

     k)Floor requirements for mounting:yes
