BHMA Lock Security test frame
- Guangzhou
- T/T
- 45 days
You May Like
Product Details
| Type | Strength Testing Machine | Warranty | One year | |
| Weight | 500-1000Kg | Power Source | AC220V | |
| Accuracy Grade | 0.5 | Max Diameter of Workpiece | >3200mm | |
| Mass Scope of Workpiece | >20000kg | Maxcapacity | <1000KN | |
| Load Way | Electronic Load | Oil Cylinder Position | Other | |
| Control | Computer Control | Loading Method | Dynamic Load | |
| Display | Digital | Transport Package | wooden box | |
| Specification | ANSI/BHMA A156.2 | Trademark | Zon-test | |
| Origin | China |
Product Description
Test equipment function：

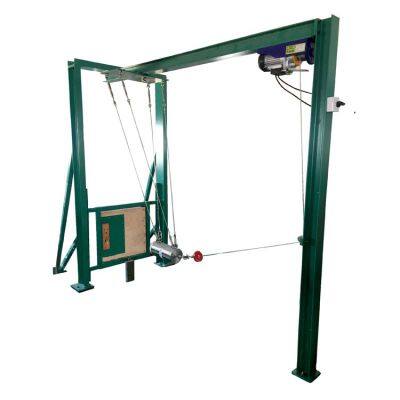

The equipment is mainly composed of three parts: frame, test door and three type of impactor. The test door can be adjusted up/down and left/right. The lock is mount to the test door and lock in closed position to perform he impaction tests included:
Test items:
1. Knob, Lever, Handle set, Thumbpiece, or Paddle Impact Test
2. Cylinder Guard (sectional trim), or Escutcheon Vertical Impact Test
3. Cylinder Face Impact Test
4. Dead Bolt or Latch Bolt or Dead Bolt and Latch Bolt Impact Test
Equipment parameters：
Model： ZNBHMA-13SE
Size：L 3 m * W 1.2 m * H 2.5 m
Frame：C\H steel frame anchored one floor
Test door：follow ASTM F476
Test standards：ANSI/BHMA A156.2, A156.13, ANSI/BHMA A156.25, ANSI/BHMA A156.36
