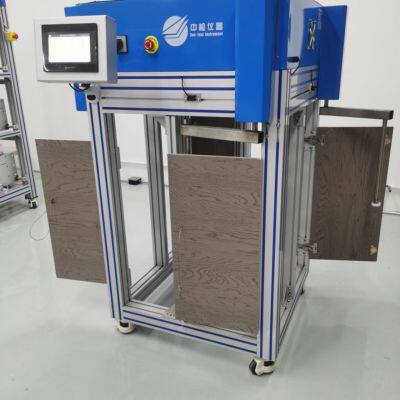

Cabinet Hinge Cycle Test Machine

Test equipment function：

      The equipment is designed according to ANSI/BHMA A156.9, meets standard requirements, 4 stations design, has a small volume, and beautiful overview. The test door is controlled by a stepper motor, with precise control. The angle can be set arbitrarily through the touch screen, and sensors are equipped to monitor the status of the test door and the position of the driving device. Easy installation, flexible adjustment, stable and reliable operation, and low noise.

       Install rollers and pull ropes on the swing arm, push open the test door to the set angle, and then pull the test door to the set angle. The door can be automatically closed by the self closing hinge; The swing arm can be placed inside the door to push open, or outside the door to push close. Both methods can be used for larger automatic opening and closing angles, and the hinge for automatic door closing function.

Equipment parameters：

Model：ZNBHMA-4C

Size：L 1.4 m * W 1.4 m * H 1.4 m

Human-machine interface: touch screen test interface, cycle setting

Frame: aluminum profile stand-alone test machine

4-station machine with casters for easy handling

Standard: ANSI/BHMA A156.9, EN 15570

Drive device: 4 stepper motors, each station controlled independently

Standard door size Test Door: European standard door 700x600mm (Optional BHMA standard door 750 x 368mm)
