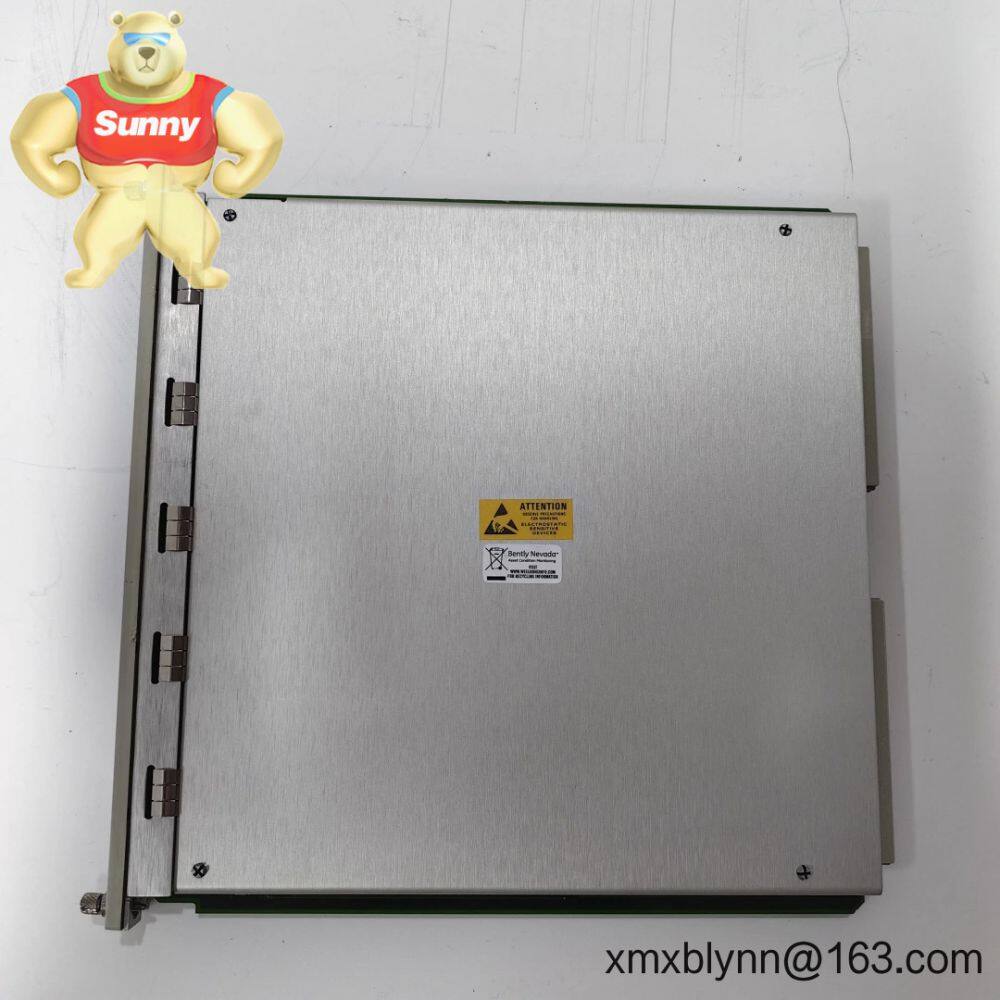

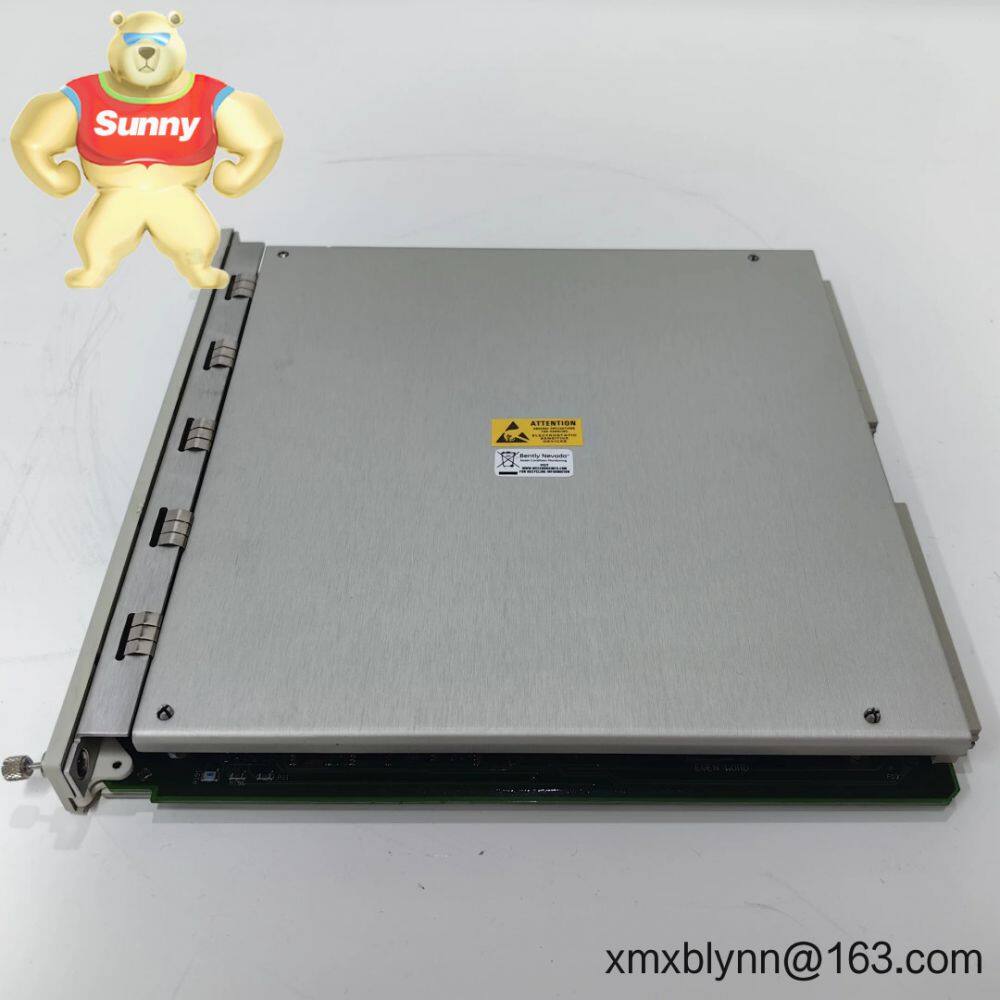

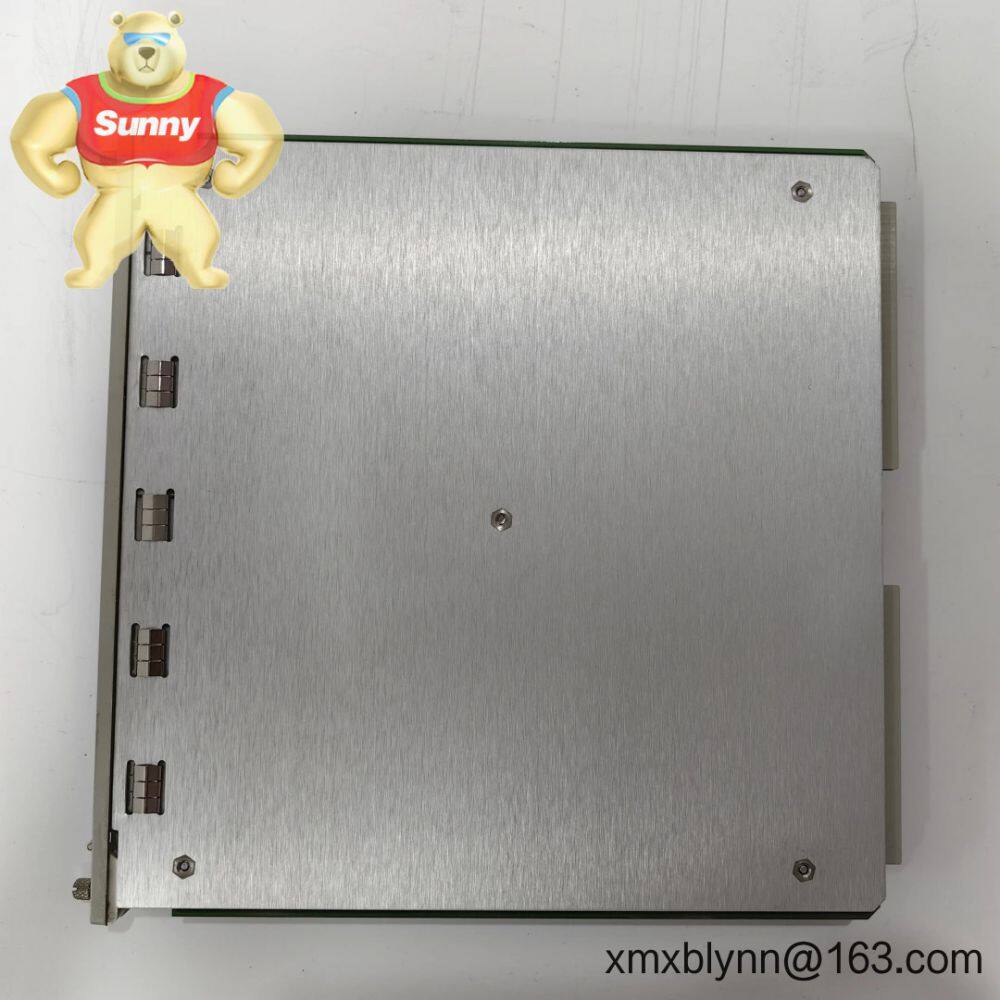

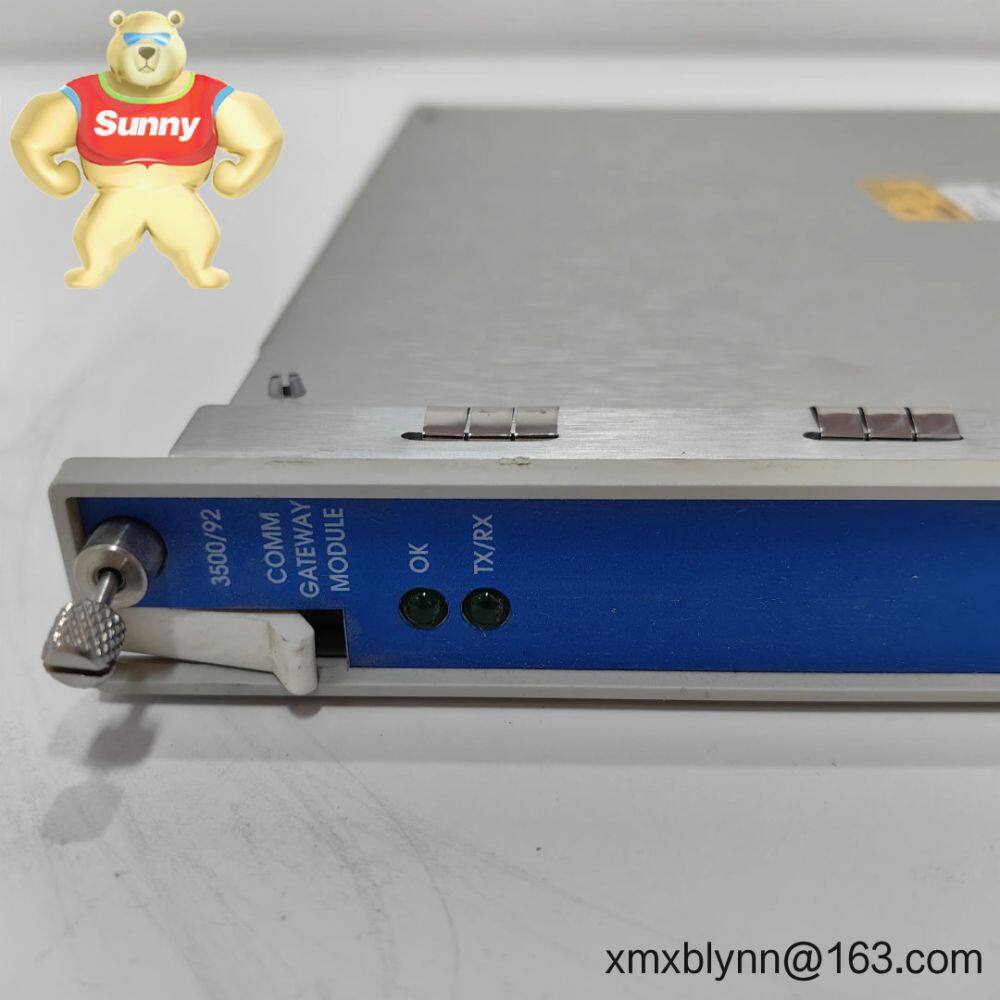

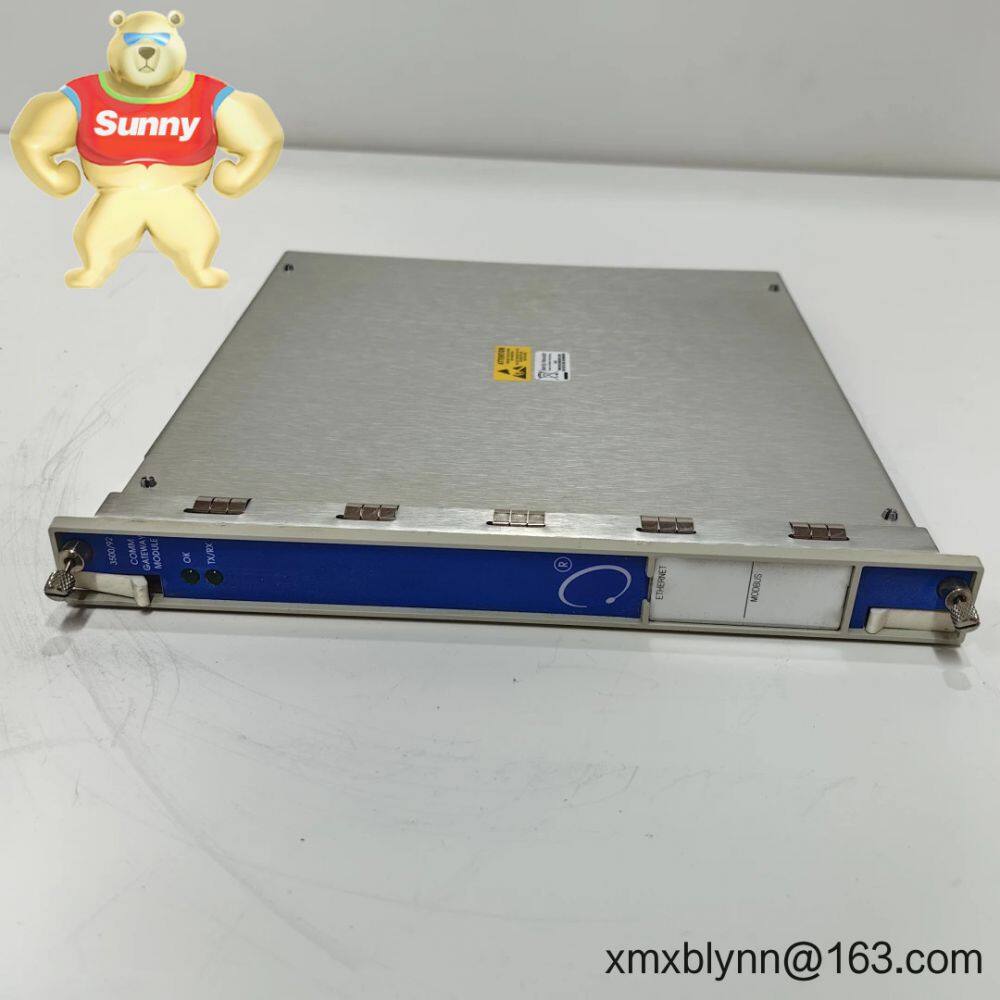

Bently Nevada 3500/92-IS Communications Module – Reliable Modbus Gateway for the 3500 Machinery Protection Rack

The Bently Nevada 3500/92-IS is the communications module designed to expose 3500 rack measurements, statuses, and alarms to your DCS, PLC, or SIS over standard industrial protocols. From my experience, it’s the cleanest way to get vibration and system health data off the rack without touching any protection logic. In many cases, it reduces custom engineering time and keeps control systems teams happy with simple Modbus maps.

• Modbus connectivity (RTU and TCP) – Provides straightforward data exchange to DCS/PLC via RS?232/422/485 or Ethernet. You typically map channel values, OK status, and alarm states in minutes.

• Read-only gateway to protection data – You might notice that setpoints and protection logic aren’t exposed for writes, which is exactly what most sites want for cyber and safety reasons.

• Rack-wide data access – Publishes values and statuses collected from monitors in the same 3500 rack, including alarms and events, so operators see the same truth as the protection system.

• 3500 platform integration – Powered from the rack backplane with matching rear I/O, no separate power supply or bulky adapters in most cases.

• Industrial approvals – The 3500 architecture is widely used in Zone 2/Division 2 environments; the 3500/92-IS variant is aimed at installations where intrinsic safety compliance across the rack is required.

• Flexible topologies – Many sites run a serial link to legacy DCS and a second 3500/92 for Ethernet to historians, keeping segregation and redundancy simple.

• Simple commissioning – Configured through the 3500 rack configuration tools with clear Modbus registers and data objects; no custom driver development needed in typical deployments.

This module is typically used wherever 3500 protection is installed and a plant control system needs the same data, fast and clean:

• Oil & gas turbomachinery trains (compressors, gas turbines, pumps) feeding values to DCS graphics and alarm pages

• Power generation units integrating vibration and keyphasor status with turbine controls

• Petrochemical process units where Modbus RTU remains the plant standard for inter-system data

• Pulp & paper, mining, and steel mills linking 3500 rack data to PLCs and historians for trending

• Proven compatibility – Works with mainstream DCS/PLC stacks via Modbus without special drivers, which keeps commissioning lean.

• Lower integration cost – Ready-made register maps save hours of custom scripting and reduce test effort in FAT/SAT.

• Operational reliability – Read-only communication avoids accidental changes to protection settings; fewer change-control headaches.

• Lifecycle support – Long-running 3500 ecosystem with spares and field support; firmware maintenance is straightforward.

• Hazardous area alignment – The 3500/92-IS variant aligns with sites targeting intrinsic safety across the rack, especially in Zone 2/Div 2 panels.

One thing I appreciate is how predictable it behaves on mixed networks. A refinery customer told us their controls team swapped a legacy serial link to Modbus/TCP on a planned outage and didn’t need to touch the 3500 protection logic—just re-mapped tags in the DCS, and it came up first try.

• Cabinet & environment – Install in a 3500 rack housed in a ventilated, clean panel; follow Zone 2/Div 2 practices where applicable. Keep ambient within the rack’s specified temperature range.

• Wiring – Use shielded twisted pair for RS?485; follow grounding best practices to avoid noise. For Ethernet, prefer industrial switches and segregated control VLANs.

• Redundancy – If uptime is critical, consider dual 3500/92 modules (e.g., one serial, one Ethernet) or redundant network paths.

• Configuration – Define Modbus maps in the 3500 configuration tool, document register assignments, and lock change control to avoid mismatches with DCS.

• Routine checks – Periodically back up configuration, verify firmware currency, check comms error counters, and validate a sample of critical tags during turnarounds.

• Safety – Observe ESD precautions when handling modules and de-energize the rack before I/O changes. For hazardous areas, comply with labeling and barrier requirements for the entire system.

• CE and RoHS compliance; UL/cUL listings are typical for 3500 rack components

• Designed for use in industrial environments; many 3500 installations operate in Zone 2/Division 2 classified areas

• Manufacturer warranty available (duration may vary by region and contract); long-term lifecycle support is standard for the 3500 platform

Note: Specific option codes (serial vs. Ethernet I/O, connector styles, and hazardous area markings) can vary. If you share your existing rack configuration or protocol preference, I can match the 3500/92-IS options to your site standard and provide the exact register map.
