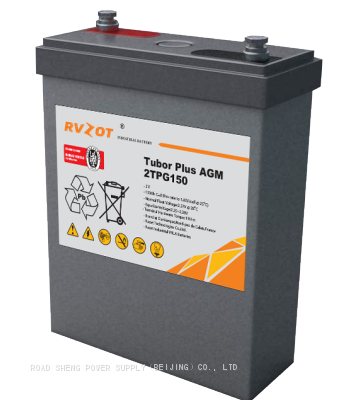

RVZOT BATTERY 2TPA150 LU SHENG 2V150AH Battery seismic bracket

RVZOT BATTERY 2TPA150 LU SHENG 2V150AH Battery seismic bracket

French RVZOT Battery AGM (TPA) Series

The French RVZOT battery AGM (TPA) series products adopt a thickened electrode plate design to improve durability and extend life, reduce electrolyte density to delay corrosion of the electrode plates, and lower battery height to prevent electrolyte delamination in high-capacity AGM batteries. MirucTM catalytic explosion-proof safety valves are used to increase internal gas recombination rate and extend battery life. The artistic level craftsmanship and computer-controlled testing process enable the TPA series products to perform exceptionally well in high-capacity critical applications.

Parameters

Design float charging life: 20 years at 25 ℃

Floating charging voltage: 2.25-2.30V/section 25 ℃, temperature correction -3mV/℃

Balanced charging: 2.30-2.35 V/section at 25 ℃

Cyclic charging voltage: 2.40-2.50 V/section 25 ℃, temperature correction -5mV/℃

Self discharge rate: ≤ 1.5% per month

80% DOD cycle charging and discharging times: ≥ 1250 times

2TPA100	2	106	100	59.5	170	72	212	6.0	1.4	C
	2TPA150	2	159	150	89.3	170	98	212	8.5	1.1	C
	2TPA200	2	212	200	119	170	110	350	14.8	1.0	D
	2TPA250	2	266	250	149	170	110	350	15.8	1.0	D
	2TPA300	2	318	300	179	170	150	350	20.2	0.9	D
	2TPA350	2	372	350	208	170	150	350	22.0	0.8	D
	2TPA400	2	424	400	238	210	175	350	26.2	0.7	D
	2TPA450	2	478	450	268	210	175	350	28.5	0.65	D
	2TPA500	2	530	500	298	240	175	350	31.5	0.6	D
	2TPA600	2	636	600	357	300	175	350	40.0	0.55	D
	2TPA700	2	742	700	417	300	175	350	42.0	0.5	D
	2TPA800	2	848	800	476	410	175	350	55.0	0.5	D
	2TPA900	2	954	900	536	410	175	350	57.2	0.48	D
	2TPA1000	2	1060	1000	595	475	175	350	66.0	0.45	D
	2TPA1200	2	1272	1200	714	475	175	350	70.4	0.4	D
	2TPA1500	2	1590	1500	893	403	354	350	106.0	0.35	D
	2TPA1800	2	1908	1800	1071	403	354	350	114.5	0.3	D
	2TPA2000	2	2120	2000	1190	490	350	350	133.0	0.28	D
	2TPA2500	2	2660	2500	1488	709	350	350	151.0	0.25	D
	2TPA3000	2	3180	3000	1785	709	350	350	201.0	0.2	D

RVZOT battery seismic bracket

Rvzot designs earthquake resistant brackets and cabinets according to different user site conditions (area, load-bearing capacity, layout, maintenance space, earthquake resistance level, etc.), and recommends Rvzot standard earthquake resistant brackets.

The seismic standards for bracket design comply with IBC2006 and NEBS ZONE2 (ZONE4 optional).

The group bracket is a combination type, divided into two types: vertical installation of batteries (pole up) and horizontal installation (pole front), which can be flexibly arranged according to the site area.

Using heavy-duty materials, the factory produces on-site combinations for easy transportation and on-site installation, and is coated with acid resistant epoxy resin paint.

The Rvzot battery pack (2 volts/cell) is connected using dedicated flexible cables or copper bars, which users can choose from.
