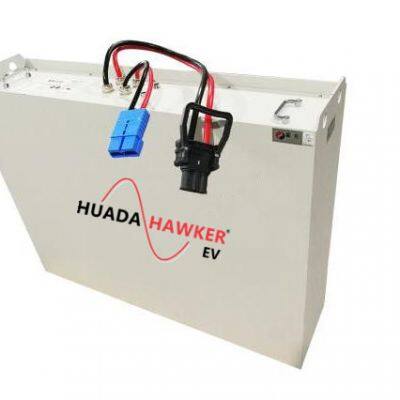

EV48-60 AGV Battery 48V60Ah LiFePO4 HUADAHAWKER BMS AGV

HUADA HAWKER Battery Type: Lithium Iron Phosphate Battery

Maximum charging current: 2C

Maximum discharge current: 2C

Instantaneous discharge current: 3C

Discharge cut-off voltage: 23.6V/43.5V

Charging temperature: 0-45 ℃

Discharge temperature: -20~60 ℃

Storage temperature: -20~60 ℃

Temperature protection: 65 ℃± 5 ℃

Battery casing: Sheet metal casing

Port Design: Different Ports

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, etc

Communication interfaces: 485, CANOPEN, CAN, AO (0-5V represents 0-100%), DO (2 channels), DI, etc

Application areas: AGV, mobile robots, industrial machinery and equipment, emergency power supply, etc

Product Features

Fast charging: Supports 2C fast charging, and can be fully charged in up to half an hour.

Dumb plug: Using different plug specifications for charging and discharging can avoid incorrect insertion.

Port design: Charging and discharging port design, supporting simultaneous charging and discharging without disturbing each other.

Self developed BMS:

A battery management system for mobile robots with rich communication interfaces.

It can achieve the function of recording, storing, and exporting fault data.

The control system is designed with extremely low power consumption. Shutdown status 30uA, power on status 30mA

Support customization of various non-standard functions.

Environmentally friendly and long-lasting: using automotive grade power lithium iron phosphate battery cells with high cycle life, in line with the values of low-carbon, energy-saving, and environmental protection;

Professional design: By filling the shock-absorbing structure inside the cold-rolled sheet metal shell, the requirements of strong heat dissipation, high safety, and high reliability are achieved.

Ordering model nominal voltage (V) capacity (Ah) size

(mm) Weight (Kg)

HAWKER EV24-30 25.6V 30 390 * 199 * 130 9

HUADA HAWKER EV24-40 1.0 25.6V 40 315 * 237 * 165 17.5

HAWKER EV24-40 2.0 25.6V 40 527 * 155 * 170 17.5

HUADAHAWKER EV24-60 1.0 25.6 60 333 * 241 * 214 25

HAWKER EV24-60 2.0 25.6 60 325 * 237 * 187 25

HUADAHAWKER EV24-80 25.6 80 356 * 335 * 216 29

HAWKER EV24-100 25.6 100 356 * 335 * 216 34

HUADAHAWKER EV24-120 25.6 120 400 * 275 * 248 41.5

HAWKER EV24-200 25.6 200 551 * 210 * 433 65

HUADAHAWKER EV48-20 48 20 315 * 237 * 165 17.5

HAWKER EV48-30 48 30 380 * 238 * 202 21.4

HUADAHAWKER EV48-40 48 40 356 * 335 * 216 32

HAWKER EV48-50 48 50 788 * 170 * 170 36

HUADAHAWKER EV48-60 1.0 48 60 567 * 241 * 226 40

HAWKER EV48-60 2.0 48 60 430 * 350 * 216 40

HUADAHAWKER EV48-100 48 100 614 * 346 * 202 65

HAWKER EV48-160 48 160 606 * 456 * 255 86.5

HUADAHAWKER EV48-180 48 180 600 * 275 * 517 95

HAWKER EV48-200 48 200 700 * 555 * 294 130

Hawker battery specifications can be customized. For more information, please contact Hawker Battery's Wang Zelong.

Introduction

Hawker HuaDa EV series of power battery, is the international advanced level of lithium iron phosphate (LiFePO4) power battery system. With high energy density, long cycle life, excellent charge and discharge performance, good temperature performance, is a new generation of high security and high reliability of the green power supply.

This series of batteries is the use of the latest development of the battery management system (BMS), specifically for mobile mechanical equipment, online charging and wireless charging and design and production of power batteries, with advanced battery self-management, communication, alarm and short-term fast charge Complete function.

Product Features

● Excellent charge and discharge overvoltage and undervoltage protection

● provide analog output AO, SOC analog output 0 ~ 5V, user-friendly power monitoring

Note: SOC can only be used as a reference, can not be used as a decision.

● Provides a highly efficient passive equalization system

● Charge / discharge are all with short circuit insurance

● Panel LED power, system status display

● Rich interface, through the digital IO and 485 interface to achieve information exchange

● professional industrial design and material selection, sustainable work in the harsh industrial environment

● support high-power charge and discharge, to meet the needs of a variety of different industrial conditions

● wide temperature working environment conditions, -20 degrees -60 degrees

● small size
