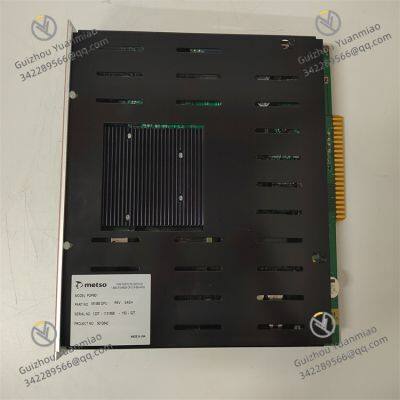

METSO PDP601 Distributed Processing Unit

I. Overview

II. Technical Parameters

Power Supply Specifications: The input voltage is 24V DC. This DC power supply method is widely used in industrial environments, compatible with most industrial power supply systems, ensuring stable power supply for the equipment. Its maximum power consumption is 15W, which meets the high-performance operation of the equipment while effectively controlling energy consumption, conforming to the industrial development trend of energy conservation and environmental protection.

Processor Performance: Equipped with a high-performance 32-bit microprocessor with a main frequency of up to 800MHz, it has strong data processing capabilities. It can quickly process a large amount of real-time data and complex diagnostic algorithms, ensuring rapid response to various abnormal situations in industrial production processes, and providing a solid computing foundation for real-time control and diagnosis.

Storage Capacity: Equipped with 512MB RAM for temporary data storage, ensuring smooth data processing; 4GB Flash memory can be used to store important information such as system programs, historical data, and diagnostic logs, facilitating later query and analysis, and providing data support for production optimization and fault traceability.

Communication Capability: It has rich communication interfaces, including 2 Ethernet interfaces (supporting 10/100Mbps adaptive), 4 RS-485 interfaces, and 2 USB interfaces. It supports multiple mainstream industrial communication protocols such as Modbus TCP/IP, Profibus DP, and EtherNet/IP, enabling seamless connection with various industrial equipment such as PLCs, DCSs, sensors, and actuators, ensuring efficient transmission and sharing of data in the entire control system.

Input/Output Channels: Provides 16 analog input channels (supporting 4-20mA or 0-10V signals) and 8 digital input channels, which can collect multiple types of process signals simultaneously; equipped with 8 digital output channels (relay output) for controlling the start and stop of external equipment, meeting the needs of multi-parameter monitoring and control in industrial production.

III. Functional Features

Real-time Process Diagnosis: It has a powerful real-time diagnosis function. By continuously monitoring and analyzing the collected process parameters (such as temperature, pressure, flow, etc.), using advanced fault diagnosis algorithms, it can accurately identify early fault signs of equipment, such as sensor drift, valve jamming, abnormal motor vibration, etc., and timely issue sound and light alarm signals, while recording fault information. It provides maintenance personnel with accurate basis for fault location, effectively avoiding production shutdown caused by fault expansion.

Data Trend Analysis: It can store and analyze the collected historical data, generating intuitive data trend charts, such as temperature change curves and pressure fluctuation trends. Through the analysis of these trends, operators can clearly understand the change rules of the production process, predict the development trend of process parameters, provide a scientific basis for production process optimization and equipment maintenance plan formulation, and help enterprises achieve refined production management.

Flexible Control Logic: It supports user-defined control logic, and complex control programs can be written through dedicated programming software to achieve precise control of industrial production processes. For example, automatically adjusting valve opening and controlling motor speed according to different process conditions, meeting personalized control needs in different industrial scenarios, and improving the automation level and control accuracy of the production process.

Remote Monitoring and Management: With the help of Ethernet interfaces and related communication protocols, remote monitoring and management functions can be realized. Operators in the remote monitoring center can real-time view the operating status of PDP601, production process parameters, and fault alarm information, and can remotely modify control parameters, start and stop equipment, etc. This greatly improves the operation and maintenance efficiency of industrial control systems, especially suitable for centralized management of large industrial plants or decentralized production equipment.
