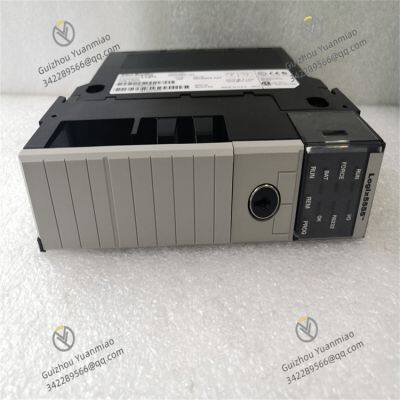

Allen-Bradley 1756-L55 Processor Module

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Operating temperature	0°C to 60°C
Humidity	5% - 95% (non - condensing)	Power Input	24V DC

Product Description

I. Overview

1756-L55 is a medium-sized processor module in Rockwell Automation's ControlLogix series, which undertakes core control tasks in industrial automation control systems. It has moderate computing power and rich functions, and can connect various I/O modules to realize precise control and data acquisition of various equipment in industrial production processes. It is widely used in medium-sized industrial scenarios, such as machinery manufacturing production lines, medium-sized chemical plants, food processing lines, etc.

As an important part of the ControlLogix system, 1756-L55 can work with digital, analog input/output modules, communication modules and other modules in the same series to build a stable and efficient automation control system, providing strong support for the stable operation, quality control and efficiency improvement of the production process.

II. Technical Parameters

Processor Performance: It adopts a 32-bit processor with a certain level of main frequency (refer to the product manual for specific values). It has strong logical operation and data processing capabilities, can meet the real-time control needs of medium-sized control systems, and can handle multiple control tasks and I/O data at the same time.

Memory Configuration: The capacity of program memory and data memory is moderate. For example, the program memory is about 8MB, and the data memory is about 4MB (the specific capacity is subject to the product data sheet). It can store control programs and process data of medium complexity, supporting the development of small and medium-sized control logic.

I/O Processing Capacity: It supports the expansion of a large number of I/O points. Multiple I/O modules can be connected through the ControlLogix rack, and the total number of I/O points can reach thousands, which can meet the control needs of multiple devices and parameters in medium-sized industrial production lines.

Communication Interface: It integrates one or more EtherNet/IP interfaces, supports industrial Ethernet communication with a communication rate of 100Mbps, and can exchange data with HMI, remote I/O stations, other controllers and other devices to realize networked control and monitoring of the system. At the same time, it supports ControlNet, DeviceNet and other fieldbus communications (via expansion modules), enhancing the communication flexibility of the system.

Power Requirements: It obtains power from the ControlLogix rack backplane, with a typical current consumption of about 1.2A at 5V DC (specific parameters are subject to the product data sheet). The power consumption is moderate, and it has low requirements on the system power load, and can share the rack power with other modules.

Environmental Adaptability Range:

Operating Temperature: The normal operating temperature range is 0°C to 60°C, which can adapt to common temperature changes in industrial sites and can run stably in high-temperature workshops or normal-temperature control rooms.
Relative Humidity: It can withstand 5% to 95% non-condensing relative humidity, and can still maintain reliable performance in humid environments such as food processing workshops and water treatment plants.

Size Specification: It adopts the standard single-slot module size of the ControlLogix series, which perfectly fits the 1756 series rack. It is easy to install, saves rack space, and is convenient for system integration and maintenance.

Certification Standards: It complies with international industrial certification standards such as UL, CSA, and CE, ensuring safe and compliant use in industrial environments in different countries and regions.

III. Functional Features

Medium-Scale Control Capability: With moderate processor performance and memory capacity, 1756-L55 can handle the core control tasks of medium-sized industrial control systems. It can run control programs of medium complexity, such as logic control, PID regulation, sequential control, etc., meeting the control needs of production processes such as mechanical processing and assembly lines.

Flexible I/O Expansion: It supports seamless connection with various I/O modules of the ControlLogix series, including digital input/output, analog input/output, special function modules, etc. Users can flexibly configure the number and types of I/O points according to actual needs, easily realize system expansion and upgrading, and adapt to the increase or decrease of equipment or process changes in the production line.

Diversified Communication Methods: High-speed network communication can be realized through the integrated EtherNet/IP interface, which facilitates data interaction with upper computers and HMI, and realizes real-time monitoring and data acquisition of the production process. At the same time, it can support multiple fieldbus communications through expansion modules, facilitating the connection of various field devices and improving the compatibility and openness of the system.

Efficient Programming Environment: It supports Rockwell Automation's Studio 5000 programming software, which provides multiple programming languages such as ladder diagrams, function block diagrams, and structured text. Engineers can choose the appropriate programming method according to their habits, quickly develop, debug and modify control programs, and improve development efficiency.

Reliable Operating Performance: It adopts industrial-grade components and a robust shell design, with good anti-vibration and anti-impact capabilities. It can withstand mechanical stress and electromagnetic interference in industrial sites, ensuring long-term stable operation in harsh environments and reducing production interruptions caused by controller failures.

Comprehensive Diagnostic Functions: It has self-diagnosis and fault alarm functions, which can real-time monitor the operating status of the processor, memory usage, communication status, and the working status of I/O modules. When a fault occurs, it can send alarm information through indicators or communication interfaces, facilitating engineers to quickly locate and troubleshoot problems and shorten fault handling time.

Data Processing and Storage: It can real-time process and store the collected process data, support data recording, archiving and analysis, provide data support for quality traceability and performance optimization of the production process, and help enterprises improve production management levels.

IV. Common Faults and Solutions

Startup Fault:

Phenomenon: The module cannot start after power-on, the power indicator is not on or flickers, and there is no normal operation indication.
Causes and Solutions:

Power Supply Problem: Check whether the rack power supply is normally powered, and measure whether the power output voltage is within the specified range; check whether the connection between the module and the rack backplane is tight, re-plug the module to ensure good contact; if the power supply is faulty, replace the rack power module.
Module Hardware Fault: If the power supply and connection are normal, the internal hardware of the module may be damaged, and professional maintenance personnel should be contacted for repair or replacement of the module.

Communication Fault:

Phenomenon: Unable to communicate with HMI, other controllers or remote I/O stations, data transmission is interrupted or abnormal.
Causes and Solutions:

Network Connection Problem: Check whether the EtherNet/IP cable is loose or damaged, replace the cable or re-plug it; check whether network devices such as network switches and routers are working normally, restart the devices or troubleshoot network configurations.
Incorrect IP Address or Communication Parameters: Confirm that the processor's IP address, subnet mask, gateway and other parameters are set correctly and match the parameters of the communication device; check whether the communication protocol settings such as baud rate and data format are correct, and reconfigure the parameters.
Communication Interface Fault: If the network and parameters are normal, the communication interface of the processor may be damaged, and the module needs to be replaced or the interface repaired.

Abnormal Program Operation:

Phenomenon: The control program runs unstable, with logical errors, abnormal output or program interruption.
Causes and Solutions:

Program Error: Check whether the control program has logical errors, instruction errors or data overflow, debug the program in Studio 5000 software, find and correct the errors.
Memory Problem: If the program is too large or the amount of data is too much, it may lead to insufficient memory. Optimize the program code, delete redundant data, and free up memory space; if there is a memory hardware fault, replace the module.
External Interference: Strong electromagnetic interference in industrial sites may affect program operation. Check whether the grounding is good, add shielding measures, and reduce the impact of interference sources on the processor.

I/O Module Communication Fault:

Phenomenon: Unable to communicate with the connected I/O modules, I/O data cannot be read or output control is invalid.
Causes and Solutions:

Module Connection Problem: Check whether the connection between the I/O module and the rack is firm, reinstall the I/O module; check whether the rack backplane is damaged, and replace the rack if there is a fault.
I/O Module Fault: Abnormal communication of a single I/O module may be a fault of the module itself, replace the I/O module for testing; abnormal communication of multiple I/O modules may be a fault of the processor's I/O interface, and the processor needs to be repaired or replaced.
Configuration Error: Check whether the configuration of the I/O module, including module model, address and other parameters, is correct in Studio 5000 software, reconfigure and download to the processor.
