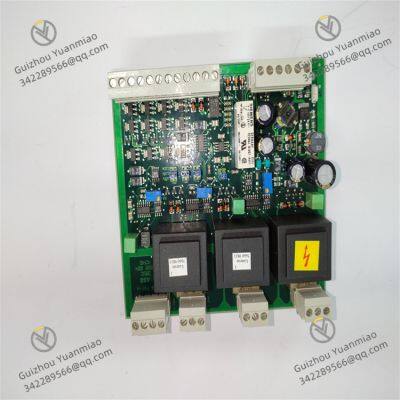

ABB DSTYW121 3BSE007836R1 Voltage Transformer Unit

ABB DSTYW121 3BSE007836R1 is a high-performance digital input/output hybrid module that plays an important role in industrial automation control systems. It can simultaneously realize the collection of digital signals and output control. It can not only receive digital input signals from sensors, switches and other equipment, but also output digital control signals to actuators such as relays and solenoid valves. It is a key component integrating signal collection and control functions.

•


• Power Parameters: The working power supply is 24V DC, and the allowable voltage fluctuation range is usually ±10%, which can adapt to the unstable power supply in industrial sites and ensure stable power supply for the module.

• Input/Output Channels: It includes 8 digital input channels and 8 digital output channels, which can process multiple input signals and output control commands at the same time, meeting the signal interaction needs of small and medium-sized industrial control scenarios.

• Input Signal Type: It supports 24V DC digital input signals, and the input current range is generally 2.5mA-10mA, which can be adapted to the output signals of various digital sensors such as proximity switches and photoelectric sensors.

• Output Signal Type: It adopts transistor output mode, with an output voltage of 24V DC. The maximum current of each output is 0.5A, and the total output current does not exceed 4A, which can drive small relays, solenoid valves and other actuators.

• Response Time: The digital input response time is no more than 1ms, and the digital output response time is no more than 0.1ms, ensuring fast signal transmission and processing, and meeting the requirements of real-time control.

• Isolation Performance: There is electrical isolation between input channels and output channels, and between channels and power supply. The isolation voltage can reach 2500V AC, which effectively resists external interference and improves the anti-interference ability of the system.

• Environmental Parameters: The working temperature range is 0℃-+60℃, and the storage temperature range is -40℃-+85℃; the relative humidity is 5%-95% (non-condensing); the protection level is IP20, which is suitable for installation in the control cabinet to prevent dust and foreign objects from entering.

• Dimensions: It adopts a compact design, with dimensions of approximately 120mm×100mm×60mm (length × width × height, subject to the actual product), which is convenient for installation and layout in the control cabinet and saves space.

•


•


• Integrated Signal Processing: The channel configuration of 8 inputs and 8 outputs realizes the integration of signal collection and control output, without the need for additional input or output modules, which simplifies the system structure and reduces the complexity of equipment integration.

• High-Speed Signal Response: The extremely short input and output response time can quickly capture changes in external signals and output control commands in a timely manner, ensuring the real-time performance of the industrial control process, and is suitable for scenarios with high requirements for dynamic response.

• Reliable Isolation Protection: The perfect electrical isolation design effectively blocks the interference between input, output and power supply, ensures the stability and accuracy of signal transmission, reduces equipment misoperation caused by interference, and improves the safety of the system.

• Flexible Compatibility: It can be seamlessly connected with ABB's PLC, DCS and other control systems, and can also be adapted to sensors and actuators of various brands, facilitating system expansion and upgrading, and adapting to different industrial application needs.

• Convenient Installation and Maintenance: The modular design supports DIN rail installation, and the installation process is simple and fast; the module surface is equipped with LED indicators, which can intuitively display the working status of each channel (such as presence or absence of input signals, status of output signals, etc.), facilitating maintenance personnel to quickly troubleshoot faults and improve maintenance efficiency.

•


• Automated Production Lines: In automated production lines such as electronic component assembly and small mechanical processing, it is used to collect positioning signals of conveyors, detection signals of workpieces, etc., and control the actions of sorting mechanisms, clamping devices and other equipment, realizing the coordinated operation of various links of the production line and improving production efficiency.

• Packaging Machinery: In food and pharmaceutical packaging machinery, it can collect the in-place signal of packaging materials and the detection signal of products, and control the sealing and cutting actions of the packaging machine, ensuring the accuracy and continuity of the packaging process and guaranteeing the quality of product packaging.

• Logistics Sorting Systems: Used in logistics sorting equipment, it collects barcode identification signals and position signals of goods, and controls the switching action of sorting crossings, realizing automatic sorting and transportation of goods, and improving the efficiency and accuracy of logistics sorting.

• Small Process Control Equipment: In process control scenarios such as small chemical reactors and water treatment equipment, it collects switch signals of parameters such as temperature and pressure, and controls heating devices, valves and other actuators, realizing automatic control of the production process and ensuring the stable operation of the production process.

• Building Automation Equipment: In small building automation systems, it collects door and window switch signals, human body induction signals, etc., and controls the start and stop of lighting and ventilation equipment, realizing intelligent control of building equipment and improving energy utilization efficiency.
