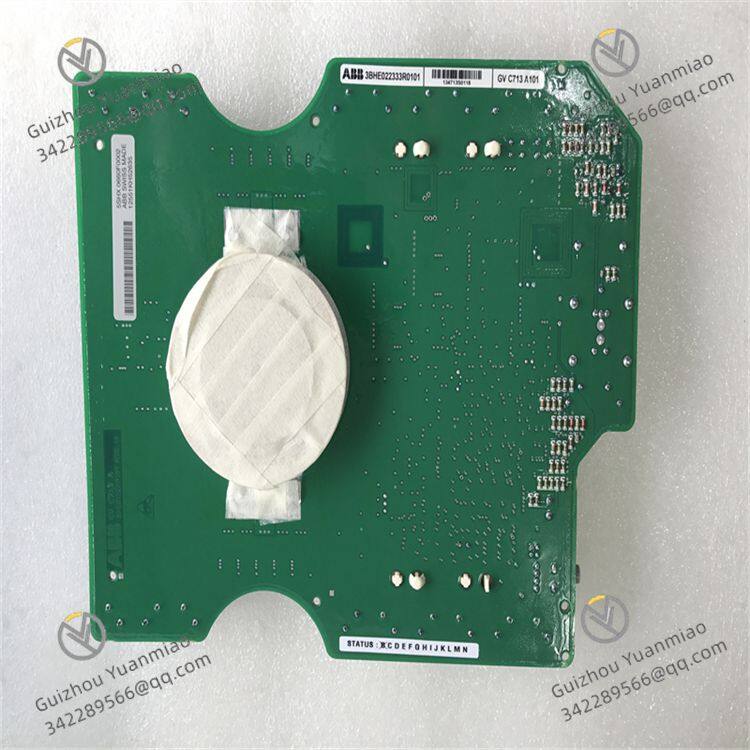

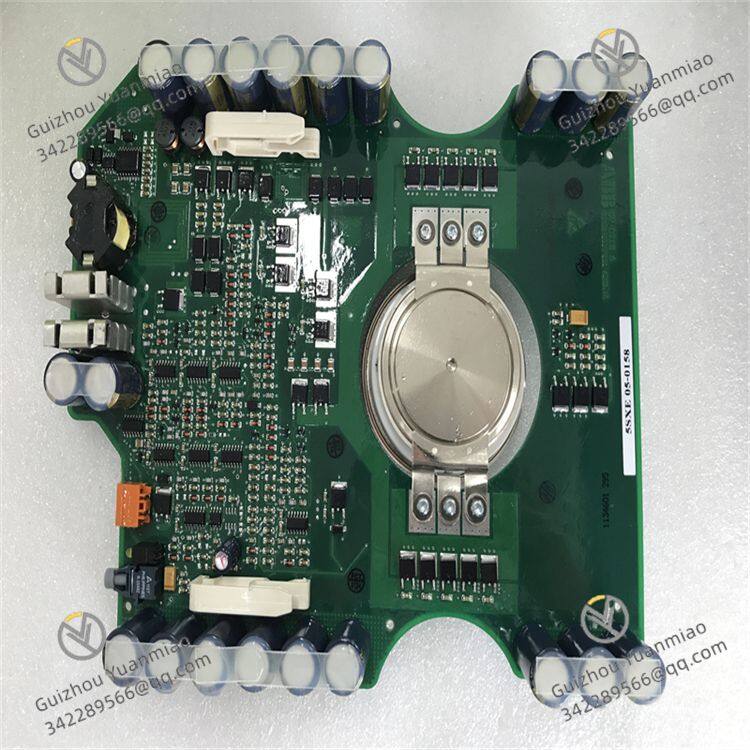

ABB IGCT Module 5SHX19L6020 Rectifier Thyristor

Voltage Rating: Its collector-emitter voltage can reach 5500V, enabling stable operation in medium-high voltage power systems. It is suitable for application scenarios that need to handle higher voltages, such as industrial power grids and large-scale power-driven equipment, providing reliable support for power conversion and control in high-voltage environments.

Current Handling Capacity: The collector current can reach 1800A, demonstrating strong large-current carrying capacity. During the operation of high-power equipment, it can ensure sufficient current supply, guaranteeing continuous and stable operation of the equipment under high-load conditions without performance degradation due to insufficient current.

Frequency Characteristics: Although no extremely precise official data has been obtained, referring to similar IGCT products and common application scenarios, it is likely suitable for standard industrial frequency environments of 50-60Hz. It can effectively match the frequency requirements of power systems, achieving stable power conversion and control, and meeting the frequency adaptation needs of most industrial production and power transmission scenarios.

Excellent Switching Performance: Leveraging the advanced gate commutation technology of IGCT, the 5SHX19L6020 boasts extremely fast switching speeds. It can complete current conduction and interruption operations in an extremely short time. In applications with strict requirements on the response speed of power systems, such as scenarios with rapidly changing loads, it can quickly adjust the current state, effectively improving the dynamic performance and stability of the system, and ensuring the accuracy and timeliness of power supply.

High Reliability and Stability: In the design and manufacturing process, ABB strictly follows high-standard quality control systems. It uses high-quality semiconductor materials combined with advanced manufacturing processes to ensure product quality from the source. This enables the 5SHX19L6020 to operate stably and reliably for a long time even in complex and harsh industrial environments, such as high temperature, high humidity, and strong electromagnetic interference. It greatly reduces the probability of equipment failures, decreases maintenance frequency, provides strong support for the continuous production of enterprises, and lowers operational risks and maintenance costs for enterprises.

Efficient Power Conversion: Through optimized internal structure and electrical design, the product significantly reduces energy loss during power conversion. For example, when applied in medium-high voltage frequency converters, it can efficiently convert input electrical energy into variable-frequency electrical energy required by motors, improving energy utilization efficiency. This not only helps enterprises reduce energy consumption costs but also aligns with the globally advocated concepts of energy conservation and environmental protection, assisting enterprises in achieving sustainable development goals.

Good Adaptability: It can be well adapted to various power system equipment and circuit topologies. Whether in traditional industrial power-driven systems or emerging complex power architectures such as smart grids and distributed energy access, it can integrate into them by virtue of its own characteristics, realizing collaborative work with other equipment and facilitating the construction of diversified and intelligent power systems.
