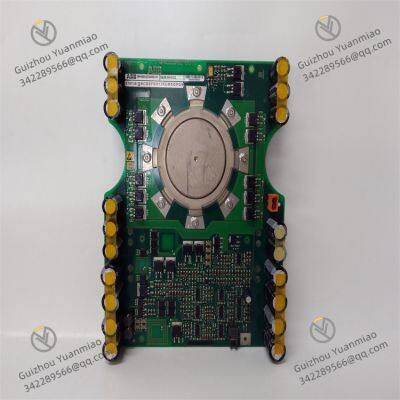

ABB IGBT Module 5SHX14H4510 Power Board

Voltage Rating: The reverse repetitive peak voltage (VDRM) can reach 4500V, which can meet the voltage requirements of medium-high voltage power systems, providing reliable guarantee for power conversion and control in high-voltage scenarios such as industrial power grids and large-scale power-driven equipment.

Current Handling Capacity: The collector current can reach 800A, featuring strong large-current carrying capacity, which can meet the operational needs of high-power equipment and ensure continuous and stable power supply under high-load conditions.

Operating Temperature Range: Usually between -40°C and +70°C, it can adapt to temperature changes in different regions and industrial environments, ensuring normal operation under extreme temperature conditions.

Efficient Switching Performance: Relying on the advanced gate commutation technology of IGCT, it has extremely fast switching speed and can complete current turn-on and turn-off operations in an extremely short time. It performs excellently in scenarios with high requirements for response speed, such as rapid load changes, as it can quickly adjust the current state, effectively improving the dynamic performance and stability of the power system, and ensuring the timeliness and accuracy of power supply.

High Reliability and Stability: Using high-quality semiconductor materials and advanced manufacturing processes, it strictly follows high-standard quality control systems. It can operate stably for a long time in harsh industrial environments such as high temperature, high humidity, and strong electromagnetic interference, significantly reducing the incidence of equipment failures and the number of maintenance operations, providing strong support for the continuous production of enterprises, and lowering operational risks and maintenance costs.

High Energy Conversion Efficiency: Through optimized internal structure and electrical design, it significantly reduces energy loss during power conversion. When applied in medium-high voltage frequency converters, for example, it can efficiently convert input electrical energy into variable-frequency electrical energy required by motors, improving energy utilization efficiency, helping enterprises save energy consumption costs, conforming to the concept of energy conservation and environmental protection, and promoting sustainable development.

Strong Adaptability: It can be well compatible with various power system equipment and different circuit topologies. Whether it is traditional industrial power drive systems or complex new power architectures such as smart grids and distributed energy access, it can be smoothly integrated and work collaboratively with other equipment, creating convenient conditions for building diversified and intelligent power systems.
