Home > Products > Bently Nevada > BENTLY 3500/42M 176449-02 multi-channel machinery protection monitor module

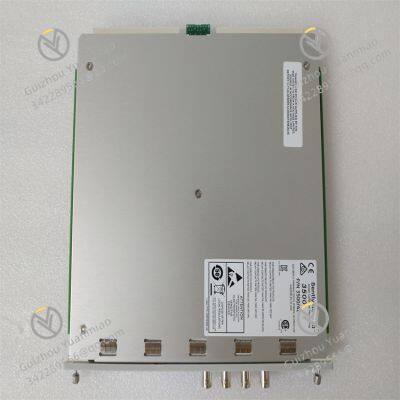

BENTLY 3500/42M 176449-02 multi-channel machinery protection monitor module

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Operating temperature	-40℃~+85℃
Humidity	5%~95% (non-condensing)

Product Description

Many products are not on the shelves yet, please contact us for more models.

Bently Nevada 3500/42M 176449-02 is a multi-channel machinery protection monitor module in the 3500 series monitoring system, designed to provide comprehensive monitoring and protection for rotating machinery by processing various mechanical signals. Here is the relevant content from its user manual:

Product Overview

This module is a versatile monitoring component that integrates multiple measurement functions, capable of processing signals from proximity probes, accelerometers, and other transducers. It monitors key mechanical parameters such as vibration, displacement, speed, and temperature, enabling real-time fault detection and protection actions for critical equipment like turbines, compressors, and motors.

Technical Parameters

Power Supply: 24V DC input, typical power consumption ≤ 4W.
Channels: 4 independent monitoring channels, supporting simultaneous signal processing.
Input Signal Types:

Displacement: Compatible with eddy current proximity probes (e.g., 3300 series), measuring range 0-2000μm (peak-to-peak).
Vibration: Supports acceleration (0-50g peak) and velocity (0-200mm/s RMS) signals from accelerometers.
Speed: Accepts keyphasor signals, measuring range 0-30,000 RPM.

Frequency Response: 0.1Hz to 10kHz (-3dB), ensuring accurate capture of both low and high-frequency components.
Alarm Thresholds: Each channel supports two programmable thresholds (Alarm and Danger) with adjustable delay times (0-60s).
Communication Interface: Integrates with the 3500 system backplane, transmitting data to the Rack Interface Module (RIM) for centralized monitoring.

Environmental Specifications:

Operating temperature: -40°C to 85°C.
Storage temperature: -50°C to 100°C.
Relative humidity: 5% to 95% (non-condensing).
Vibration resistance: 5g (10Hz-2000Hz); shock resistance: 25g (11ms half-sine wave).

Mechanical Dimensions: Approximately 100mm × 150mm × 35mm (half-height module), weight ~0.35kg.
Functional Features
Multi-parameter Monitoring: A single module can monitor displacement, vibration, and speed simultaneously, reducing system complexity.
Advanced Signal Processing: Equipped with digital filtering, peak/peak-to-peak detection, and RMS calculation for precise signal analysis.
Keyphasor Integration: Synchronizes with keyphasor signals to correlate measured data with machine rotation phases, aiding in fault diagnosis (e.g., unbalance, misalignment).
Self-Diagnosis: Continuously monitors internal circuits and transducer connections, reporting faults (e.g., open/short circuits) to the system.
Flexible Configuration: Parameters such as signal type, measurement range, and alarm logic can be configured via 3500 Configuration Software.
