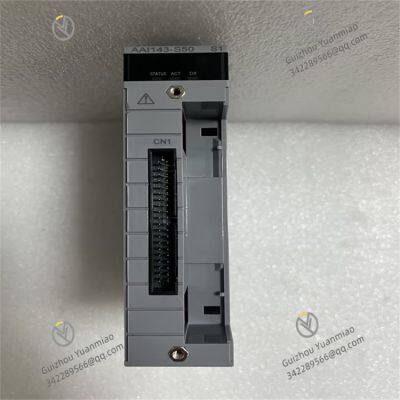

Yokogawa AAI143-S50 Analog Input Module

High reliability: The Field Control Node (FCN) autonomous controller has redundancy capabilities. Both fieldbus modules and control networks can be redundant, supporting hot-swapping. Even if a damaged module is replaced, the process will not be interrupted. The fault-tolerant design ensures the continuity of critical processes.

Multiple application program combinations: By running multiple application program combinations such as PAS combination, SAMA combination, and Modbus communication combination, it easily achieves complex functions and stable operation to meet different functional requirements.

Signal isolation: It typically has good electrical insulation performance, which can effectively isolate input signals, ensuring accurate signal transmission and protecting equipment safety.

Secure communication: ProSafe-RS directly accesses the network used by Yokogawa's CENTUM CS3000 R3. Data exchange between SIS and DCS does not require gateways or interface hardware, enabling secure communication between SIS controllers.

Input signal: Typically 4-20mA

Configuration: Dual redundancy available

Power consumption: Approximately 230mA (5V DC) or 540mA (24V DC)

Abnormal input signal: May be caused by sensor failure, loose wiring, or internal circuit problems of the module. First, check whether the sensor is working normally and whether the wiring is secure. If both are normal, the internal signal processing circuit of the module may be damaged, and professional maintenance or module replacement is required.

Communication failure: If communication between the module and the controller is abnormal, check whether the communication cable is correctly connected, whether the interface is loose, and whether the communication parameter settings match the controller. If there are no issues, the communication interface circuit of the module may be faulty, requiring professional maintenance.

Module overheating: May be due to poor ventilation where the module is installed or excessively high ambient temperature. Ensure the module is installed in a well-ventilated area without obstructions, and add a cooling device if necessary. Meanwhile, check if the ambient temperature exceeds the module's allowable operating range and improve the environment if so.
