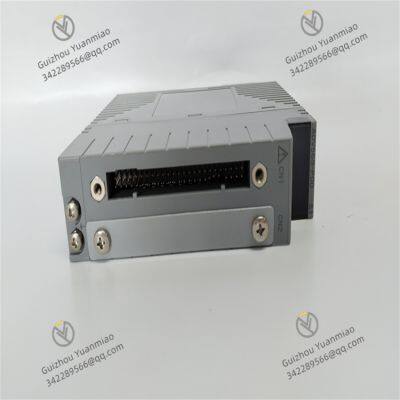

Yokogawa ADV569-P00 Digital Output Module

Multi-channel output: With 64-channel digital output (every 16 channels share a common negative terminal), it can control multiple devices simultaneously to meet large-scale control requirements.

Signal isolation: Provides channel isolation to prevent signal interference between output channels, enhancing system stability and reliability.

Pulse width function: Supports pulse width modulation (PWM) and time-proportional output functions, enabling precise control of devices such as motors and valves.

High precision and low drift: Features high precision and low drift to ensure stable and accurate output signals, guaranteeing control accuracy.

Wide operating temperature range: Operates normally within -10°C to +55°C, adapting to various industrial environments.

Output: Typically 24V DC

Number of channels: 64 channels

Output type: Digital quantity

Isolation: Channel isolation (every 16 channels share a common negative terminal)

Functions: Supports PWM, etc.

Operating temperature: -10°C to +55°C

Shipping weight: Approximately 2 kg

Abnormal output signal: May be due to internal circuit failure or incorrect configuration parameters. Check if the module's configuration parameters are correct; if so, internal circuit components may be damaged, requiring professional maintenance or module replacement.

Inter-channel interference: Despite isolation, interference may occur due to damaged isolation components or external strong interference. First, inspect the external electromagnetic environment to eliminate strong interference sources. If the issue persists, internal isolation components may be faulty, requiring module replacement.

No output signal: May result from power failure, communication connection issues, or damaged output channels. First, check the module's power supply and communication connection with the control system. If both are normal, output channels may be damaged by overcurrent/overvoltage. Try replacing the external device corresponding to the faulty channel; if ineffective, repair or replace the module.
