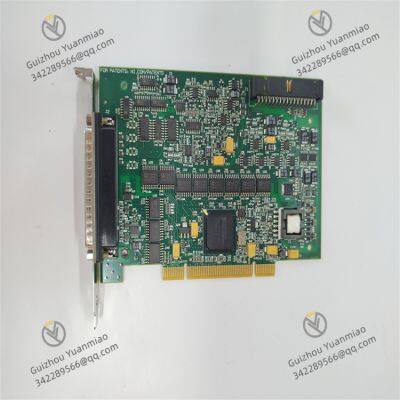

NI PCI-6230 Multifunctional Data Acquisition Card

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Operating	0°C~55°C
Storage	-40°C~70°C	Humidity	5%~95%

Product Description

NI PCI-6230I. Functional Features

High-Reliability Industrial Design & Precision Acquisition

16-Bit ADC Resolution & Wide Dynamic Range: 98dB dynamic range supports microvolt-level signal acquisition (e.g., strain/pressure sensor outputs), ideal for high-precision industrial measurements.
Multi-Channel Synchronization & Anti-Interference: 16 analog input channels with synchronous sampling up to 250kS/s (all channels), integrated anti-aliasing filters, and high CMRR (≥100dB @ 50/60Hz) for robust EMI resistance in industrial environments.

Flexible I/O & Industrial-Grade Triggering

Analog I/O:

16 inputs (±10V/±5V/±1V/±0.5V ranges) with IEPE sensor support (e.g., vibration accelerometers).
2 outputs (±10V, 16-bit) with 1.25MS/s update rate for excitation signals or closed-loop control.

Digital I/O & Counters:

24 digital I/O (TTL/CMOS compatible): 16 optically isolated DI channels (2500VRMS isolation) and 8 DO channels supporting sink/source modes for industrial digital control.
3x 32-bit counters/timers (80MHz max frequency) for pulse counting, PWM generation, and encoder signal acquisition.

Triggering & Synchronization: Analog (edge/window), digital (TTL level), and external clock synchronization compatible with industrial multi-device systems (e.g., PLCs, motion controllers).

Industrial Compatibility & Data Transfer

PCI Bus & Environmental Resistance: 32-bit/33MHz PCI bus (DMA support) with 132MB/s real-time transfer rate; operates from 0°C to 55°C (-40°C to 70°C storage), meeting industrial temperature requirements.
Software Ecosystem: Compatible with LabVIEW, MATLAB, Python, C++, etc., via NI-DAQmx driver, supporting Windows (7/10) and Linux for industrial automation programming.

II. Technical Specifications

Parameter Category	Specifications
Analog Input	16 channels, 16-bit ADC, 250kS/s (all channels synchronous), ±10V/±5V/±1V/±0.5V ranges, 100kHz bandwidth (-3dB), CMRR ≥100dB @ 50/60Hz, IEPE sensor power
Analog Output	2 channels, 16-bit DAC, 1.25MS/s max update rate, ±10V range, ≤2μs settling time
Digital I/O	24 channels (16 opto-isolated DI, 8 DO), TTL/CMOS compatible, 2500VRMS DI isolation, 50mA DO current
Counters	3x 32-bit, 80MHz max frequency, event counting, encoder decoding, PWM generation
Trigger Types	Internal, external (TTL/CMOS), software; support delay and retrigger
Bus Interface	PCI (32-bit/33MHz), PCI-X compatible
Operating Environment	0°C~55°C (operating), -40°C~70°C (storage), 5%~95% humidity (non-condensing)

III. Typical Applications

Industrial Automation & Process Control

Machine Condition Monitoring: Acquires vibration signals from motors/gearboxes via IEPE sensors for fault diagnosis (e.g., bearing wear, imbalance detection).
Closed-Loop Control: Synchronously samples temperature/pressure/flow sensors for PID control (e.g., reactor temperature regulation, hydraulic system adjustment).
PLC Coordination: Communicates with PLCs via isolated digital I/O for production line monitoring and logic control.

Sensor Testing & Industrial Metrology

Strain & Pressure Measurement: Connects to strain gauges/pressure sensors for static/dynamic stress analysis (e.g., bridge load testing, automotive component fatigue).
Encoder & Motion Control: Decodes encoder pulses for precise displacement measurement (e.g., CNC machine position feedback).

Research & Education

Physics & Acoustics: Captures low-frequency sound waves (e.g., speaker frequency response testing) or analyzes system responses with signal generators.
Teaching Platform: Enables LabVIEW-based data acquisition, analysis, and visualization for automation and measurement courses.

IV. Comparison with NI PCI-6229/6221

Model	Resolution	Sampling Rate (Analog)	Key Differences	Typical Use Cases
PCI-6221	16-bit	250kS/s (16-ch sync)	Basic model, no isolated DI, suitable for low-frequency non-industrial scenarios (e.g., lab teaching, bio-signals)	Low-frequency multi-channel monitoring
PCI-6229	16-bit	1.25MS/s (single channel)	High sampling rate/bandwidth (400kHz), no isolation, ideal for high-frequency transient capture	High-speed signal analysis, ESI testing
PCI-6230	16-bit	250kS/s (16-ch sync)	Industrial-grade optical isolation, IEPE support, robust EMI resistance for harsh environments	Industrial monitoring, PLC integration

V. Working Principle & System Integration

Signal Processing Flow

Analog Signal Chain: Inputs pass through anti-aliasing filters and IEPE bias circuits (if applicable), converted by 16-bit ADCs, and processed via FPGA for real-time scaling/filtering to ensure distortion-free industrial data.
Digital Isolation: 16 isolated DI channels use optocouplers to eliminate ground loops and surge interference, enhancing system reliability.
Data Transfer: PCI bus/DMA enables continuous, high-speed data streaming for long-term industrial monitoring.

System Compatibility

Hardware: Fits standard PCI slots in industrial/desktop PCs; combinable with other NI modules (e.g., PCI-7344 motion control) for synchronized multi-card systems.
Software: Cross-platform programming via NI-DAQmx, supporting LabVIEW industrial protocols (e.g., OPC UA) for SCADA integration.

VI. Summary

The NI PCI-6230 combines industrial-grade isolation (optical DI, IEPE support) with precision acquisition, making it a core tool for manufacturing, energy, and research. Its strengths lie in multi-channel synchronization and harsh environment resilience, excelling in "high-reliability" and "anti-interference" scenarios (e.g., factory floor monitoring, field engineering tests). It serves as a critical bridge between industrial sensors and automation control systems.
